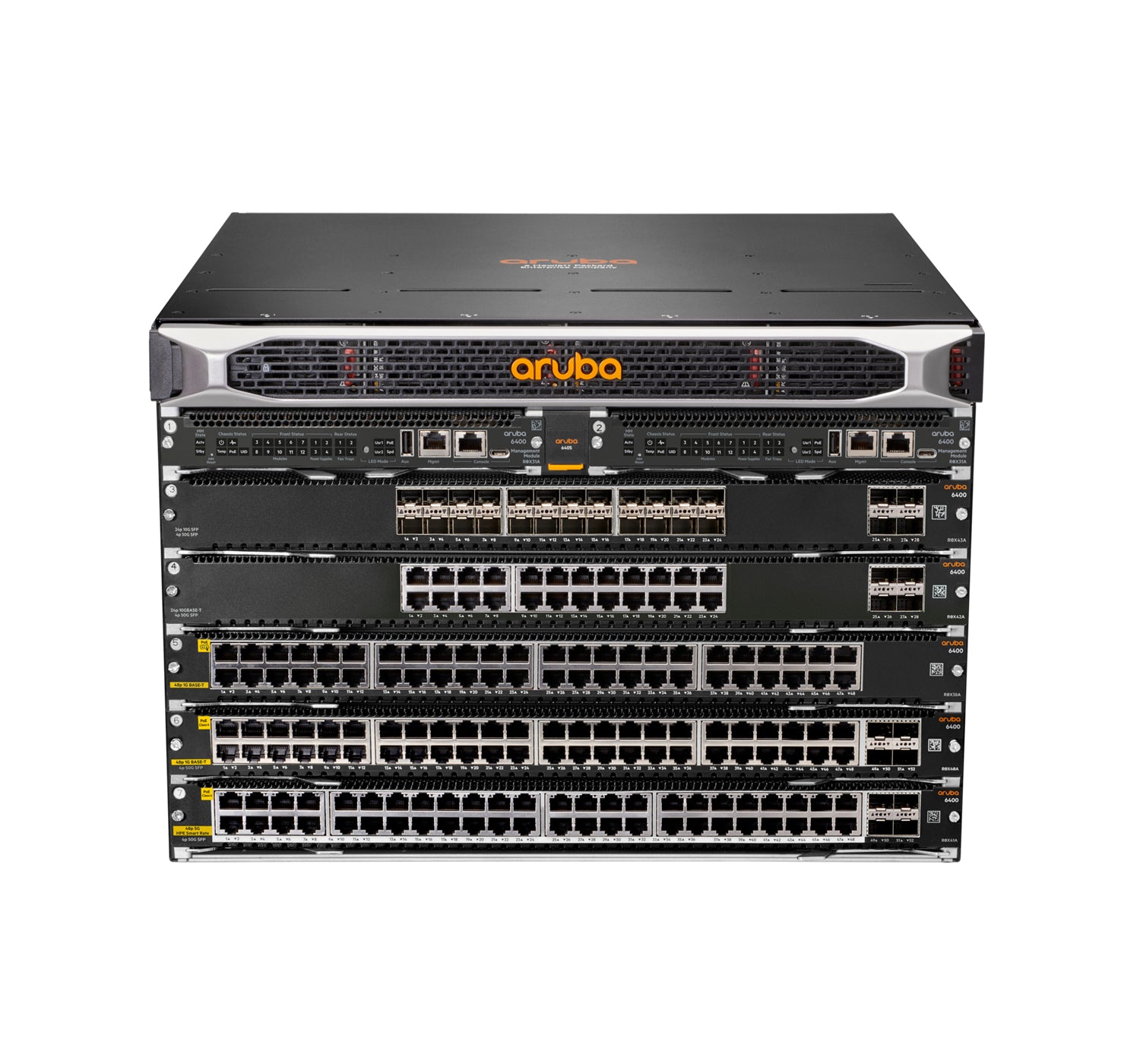

• Aruba CX 6405 5-slot modular chassis switch rack with 1-100G ports
1 1

Aruba

Aruba R0X26A | CX 6405 modular chassis (5-slot) | ports: modular 1/10/25/40/100G | PoE: 802.3af/at/bt via PoE line cards | uplinks: module-based 25/40/100G (typ. 4–8 ports) | license: AOS-CX included

R0X26A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

5-slot modular chassis for campus core/distribution with AOS-CX automation and zero-downtime upgrades. Supports redundant supervisors, hot-swappable PSUs/fans, VSX multi-chassis resiliency, and optional PoE via appropriate line cards and power.

Features

- 5-slot modular architecture for flexible campus core/distribution builds
- AOS-CX automation with REST API, Python, and event-driven troubleshooting
- VSX multi-chassis architecture for hitless upgrades and fast convergence
- Hot-swappable, redundant PSUs and fan trays
- PoE/PoE+/802.3bt support with PoE line cards for access aggregation
- Advanced L3 routing with VRF, OSPF, BGP, and rich QoS/ACLs
- Telemetry and streaming analytics for proactive operations
- On‑prem or cloud-based management options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

FAQs

Technical Specifications

FAQs

Q: Is this a modular chassis and do ports depend on line cards?
A: Yes. Port types and densities are determined by the installed line cards and supervisors.

Q: Does it support Power over Ethernet?
A: Yes, when PoE-capable line cards and sufficient power supplies are installed. 802.3af/at/bt (up to 90W per port) are supported by appropriate modules.

Q: What uplink options are available?
A: Uplinks are module-based with options for 25/40/100G. Typical uplink modules provide 4–8 ports.

Q: Are additional feature licenses required for L2/L3?
A: Core L2/L3 features are included. Optional cloud management subscriptions can be added if desired.

Q: How is high availability achieved?
A: Via redundant supervisors/PSUs within a chassis and VSX multi-chassis resiliency across two chassis.

Technical Specifications

- Platform: CX 6400 Series modular switch
- Chassis: 5 slots (line cards/supervisors sold per configuration)
- Ports: modular 1/10/25/40/100G depending on installed line cards
- PoE: 802.3af/at/bt supported when using PoE-capable line cards and adequate PSUs
- Uplinks: module-based 25/40/100G (typical 4–8 uplink ports per uplink module)
- Supervisors: supports redundant supervisor/control modules
- Power: hot-swappable, N+1 PSU redundancy (AC/DC options vary by build)
- Cooling: hot-swappable fan trays
- OS: AOS-CX with programmable CLI, REST API, NetEdit, and optional cloud management
- L2/L3: VLANs, STP, MLAG/VSX, OSPF, BGP, VRF, ACLs, QoS
- High availability: VSX multi-chassis, nonstop forwarding upgrades (where supported)
- Management: SSH/CLI, Web UI, SNMP, Streaming telemetry
- Operating temperature: typical 0–45 °C (config-dependent)
- Licensing: base features included; no per-port feature license required; optional cloud subscriptions
