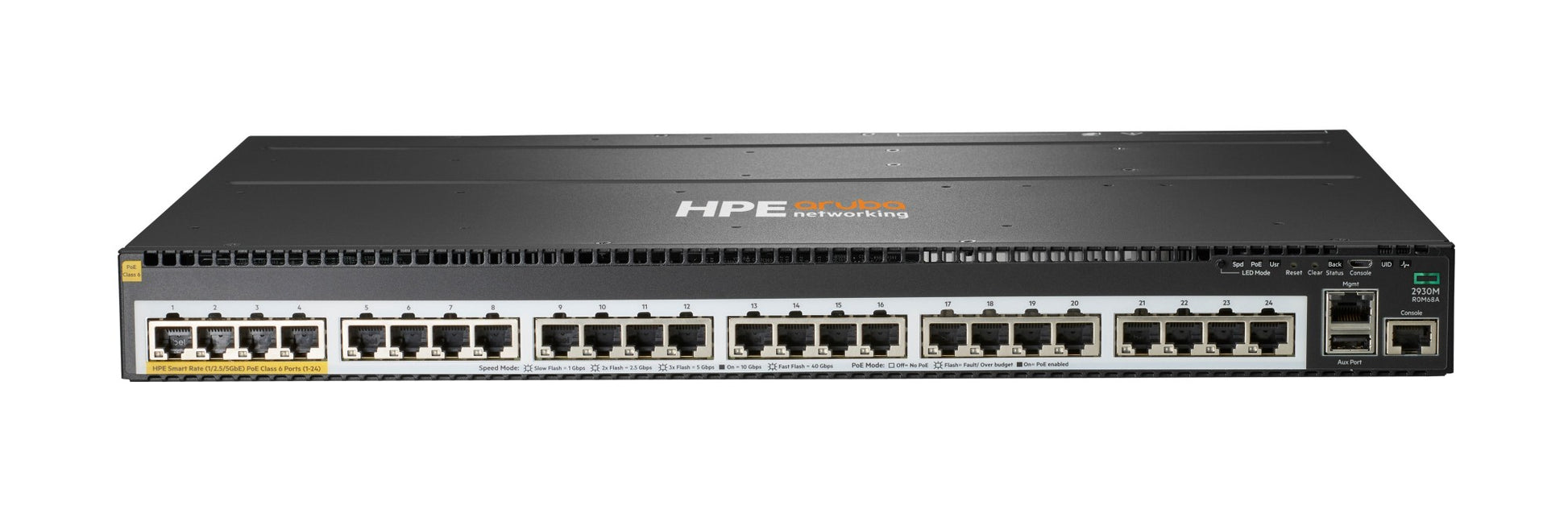

• Aruba R0M68A 24-port PoE++ switch with 1G/2.5G/5G RJ-45 ports
1 1

Aruba

Aruba R0M68A | 2930M 24-Port 5G Smart Rate Switch, PoE Class 6

R0M68A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 2930M 24 Smart Rate PoE Class 6 is a Layer 3 stackable access switch for enterprise, SMB and branch campus networks that need high-power PoE for advanced Wi-Fi access points, IP phones and cameras over existing copper cabling.

It provides 24 autosensing 100M/1G/2.5G/5GBASE-T Smart Rate RJ-45 ports, each delivering IEEE 802.3bt Class 6 PoE of up to 60W. The PoE budget reaches up to 1440W with dual modular power supplies. One modular uplink slot accepts options such as a 4-port 10G SFP+ module, and a separate stacking module slot supports 100 Gbps stacking in stacks of up to 10 members. Throughput is up to 112 Mpps, and the 1U chassis has two power supply slots for redundancy.

The feature set includes static, RIP and Access OSPF routing, PIM, VRRP and IPv6, with no software licence required. It is managed through Aruba AOS-Switch and Aruba Central, and works with the JL086A 470W and JL087A 860W modular power supplies.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 routing with static, RIP and Access OSPF, plus PIM, VRRP and IPv6
- HPE Smart Rate multi-gigabit ports suited to high-speed Wi-Fi access points over existing cabling
- Class 6 PoE delivers up to 60W per port for demanding powered devices
- Modular stacking for up to 10-member stacks
- Dynamic Segmentation and Tunnel Node for unified, secure access
- Zero Touch Provisioning for simple deployment
- QoS, ACLs and sFlow for traffic control and visibility
- Redundant, upgradeable modular power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 autosensing 100M/1G/2.5G/5G (HPE Smart Rate, IEEE 802.3bz) RJ-45 PoE Class 6 ports
- Uplink slot: 1 modular slot (for example 4-port 10G SFP+ module)
- Stacking module slot: 1 (100 Gbps stacking performance)
- Power supply slots: 2 modular
- PoE standard: IEEE 802.3bt Class 6, up to 60W per port
- PoE budget: up to 1440W with dual modular power supplies
- Throughput: up to 112 Mpps
- Latency (10 Gbps): less than 3.4 us (FIFO 64-byte packets)
- Processor: Dual Core ARM Cortex A9 at 1016 MHz
- Memory: 1 GB DDR3 SDRAM
- Flash: 4 GB eMMC
- Console port: 1 dual-personality serial console port (RJ-45 or USB Micro-B)
- USB: 1 USB-A port
- Out-of-band management: 1 x 100BASE-T port
- Routing: static, RIP and Access OSPF
- Dimensions (H x W x D): 4.39 x 44.25 x 32.43 cm
- Weight: approx. 4.5 kg
- Input voltage: 100-127 / 200-240 VAC
- Form factor: 1U rack-mountable

FAQs

Q: Does the 2930M 24 Smart Rate PoE Class 6 need a software licence?
A: No. The full feature set, including static, RIP and Access OSPF routing, is included without a software licence.

Q: What power supplies does it use?
A: It has two modular power supply slots. Compatible options include the JL086A 470W and JL087A 860W units. With dual power supplies the PoE budget reaches up to 1440W.

Q: What uplink options are available?
A: The single modular uplink slot accepts modules from the 2930M family, such as a 4-port 10G SFP+ module.

Q: Can it be stacked?
A: Yes. A separate stacking module slot supports 100 Gbps stacking, with up to 10 switches in one stack.

Q: How does it differ from other 2930M models?
A: This model provides 24 multi-gigabit 1/2.5/5G Smart Rate ports with Class 6 PoE and one uplink slot, rather than standard Gigabit ports.
