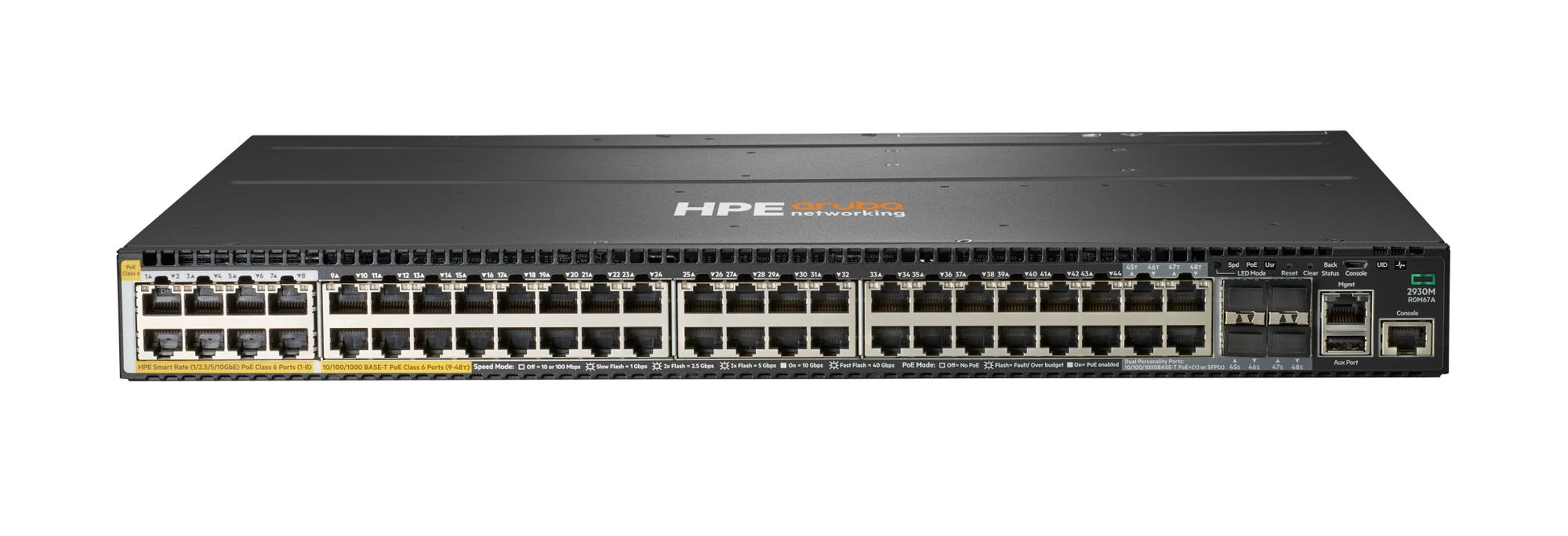

• Aruba R0M67A switch with 8x 10G PoE++ ports and 2x 40G uplinks
1 1

Aruba

Aruba R0M67A | 2930M 36-Port Gigabit PoE+ Switch, 8x 10G SmartRate

R0M67A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 2930M 40G 8 Smart Rate PoE Class 6 is a 1U Layer 3 managed, stackable access switch built for high-power PoE Wi-Fi access deployments. It suits digital workplaces that need dense, high-wattage PoE for current 802.11ac and 802.11ax access points alongside wired clients.

This SKU combines 36 x 10/100/1000BASE-T PoE Class 6 ports, 4 dual-personality ports (10/100/1000BASE-T PoE Class 6 or 100/1000 Mbps SFP) and 8 Smart Rate 1/2.5/5/10GBASE-T (IEEE 802.3bz) PoE Class 6 ports delivering up to 60W per port under 802.3bt. The PoE budget reaches 1440W with suitable power supplies. Switching capacity is 320 Gbps with throughput up to 112 Mpps. It has one modular uplink slot for 10GbE or 40GbE modules and one stacking module slot, with 100 Gbps of stacking bandwidth.

It runs the AOS-Switch feature set as standard with no separate licence needed to operate. It works with the Aruba X372 54VDC 680W (JL086A) and 1050W (JL087A) power supplies, the 2-port stacking module (JL325A), and is managed through Aruba AirWave, ClearPass, Aruba Central and IMC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 managed switching with OSPF routing and robust QoS
- Modular chassis stacking with 100 Gbps stacking bandwidth
- High-power PoE delivering up to 60W per port with 802.3bt Class 6
- Smart Rate multi-gigabit support (IEEE 802.3bz) for 2.5G and 5G access points
- Modular 10GbE and 40GbE uplink slot
- Zero Touch Provisioning support
- Automatic optimal configuration when connected to Aruba access points, including PoE priority and VLAN
- Out-of-band Ethernet management port keeps management traffic separate from data traffic

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 36 x 10/100/1000BASE-T PoE Class 6
- Smart Rate ports: 8 x 1/2.5/5/10GBASE-T (IEEE 802.3bz) PoE Class 6
- Dual-personality ports: 4 x 10/100/1000BASE-T PoE Class 6 or 100/1000 Mbps SFP
- Slots: 1 x uplink module slot (10GbE/40GbE), 1 x stacking module slot
- PoE budget: 1440W with suitable power supplies
- PoE per port: up to 60W (IEEE 802.3bt Class 6)
- Switching capacity: 320 Gbps
- Throughput: up to 112 Mpps
- Stacking bandwidth: 100 Gbps
- Processor: Dual Core ARM Cortex A9 at 1016 MHz
- Memory: 1 GB DDR3 SDRAM
- Flash: 4 GB eMMC
- Packet buffer: 12.38 MB (4.5 MB ingress, 7.875 MB egress)
- Latency (1 Gbps): under 3.1 µs
- Latency (10 Gbps): under 3.4 µs
- MAC address table: 32768 entries
- IPv4 routing table: 2000 entries
- IPv6 routing table: 1000 entries
- Dimensions (H x W x D): 4.39 x 44.25 x 32.43 cm
- Weight: 4.45 kg
- Maximum heat dissipation: 457 BTU/hr
- Mounting: 1U rack-mountable
- Management: CLI, web browser, REST, SNMP, Telnet, RMON1, FTP, serial RS-232C, micro USB and Ethernet out-of-band

FAQs

Q: Does this switch need a licence to operate?
A: No. The base AOS-Switch feature set is included as standard. Aruba Central cloud management is an optional separate subscription.

Q: What power supply does it need?
A: It needs an external Aruba X372 power supply, either the 54VDC 680W (JL086A) or the 54VDC 1050W (JL087A). The chassis has two PSU slots, and the full 1440W PoE budget needs suitable power supplies.

Q: How much PoE power can each port deliver?
A: The 8 Smart Rate ports and the PoE Class 6 ports support up to 60W per port under IEEE 802.3bt, within the overall 1440W PoE budget.

Q: What uplink and stacking options are available?
A: It has one modular uplink slot for 10GbE or 40GbE modules and one stacking module slot, which works with the 2-port stacking module JL325A.

Q: How is it managed?
A: It can be managed through Aruba AirWave, ClearPass Policy Manager, Aruba Central and IMC, or directly via CLI, web browser, REST interface and SNMP.
