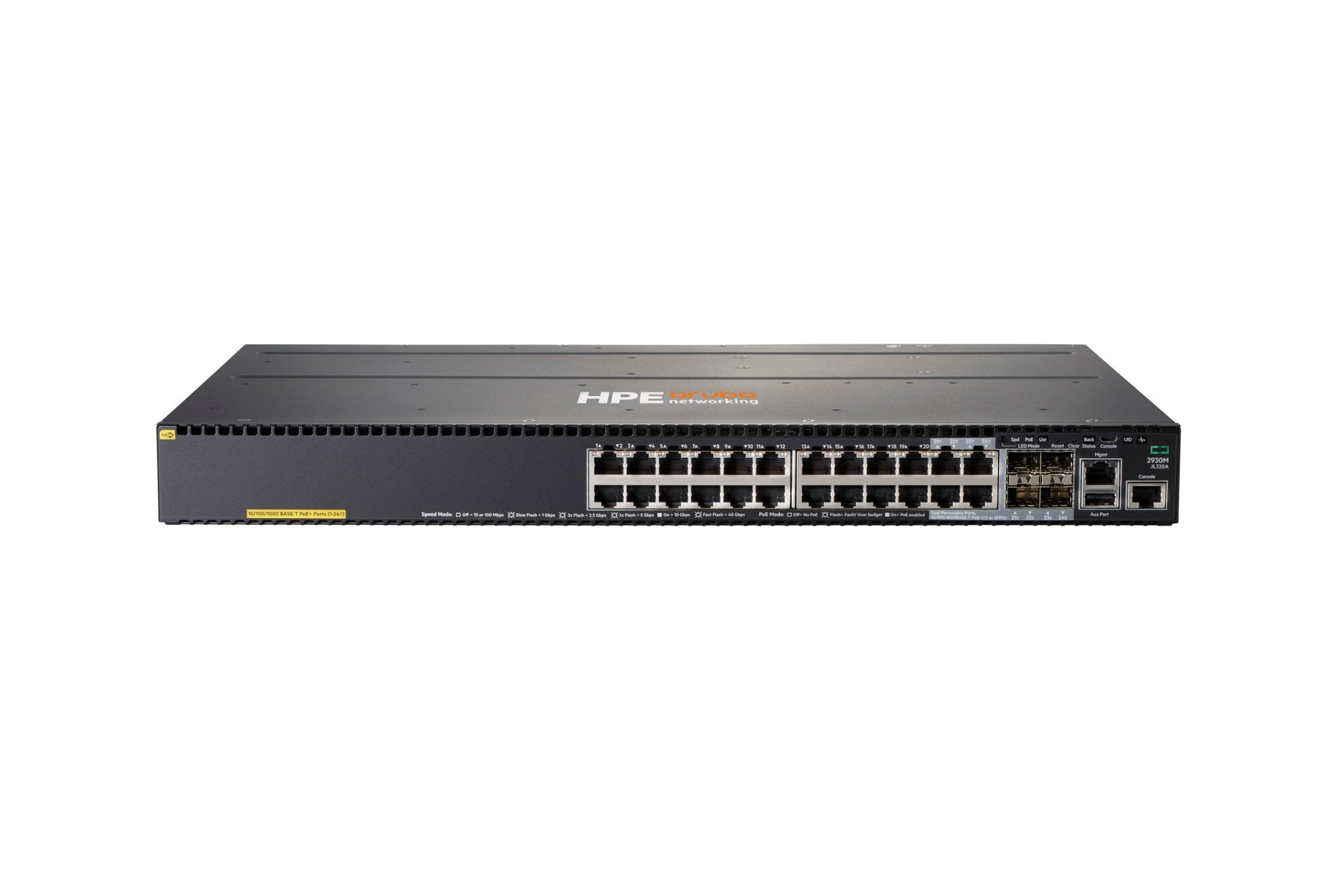

• Aruba JL320A 24-port PoE+ L3 network switch with modular uplink
1 1

Aruba

Aruba JL320A | 2930M 24-Port Gigabit PoE+ Switch, 840W, 1 Uplink Slot

JL320A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 2930M JL320A is a Layer 3 managed access-layer switch from the 2930M series, built for campus and branch offices that need to power PoE+ devices such as access points, IP phones and cameras. Zero Touch Provisioning suits sites with little or no on-site IT, and management is available through ClearPass Policy Manager or on-premises and cloud-based Aruba Central.

It provides 20 x 10/100/1000 PoE+ ports plus 4 combo ports that run as 10/100/1000BASE-T PoE+ or 100/1000 SFP, with a maximum PoE budget of 840W. One modular uplink slot takes a 4-port 10G SFP+ or 1-port 40G QSFP+ module, and a stacking module slot supports 100 Gbps stacking of up to 10 members. Switching capacity is 128 Gbps with throughput up to 95.2 Mpps. Routing covers static, RIP and Access OSPF. Two modular power supply bays accept the X372 680W or 1050W supplies for PoE operation.

Compatible uplink modules include JL083A (4-port 10G SFP+) and JL078A (1-port 40G QSFP+), and the 2930M stacking module fits the stacking slot.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 routing with static routes (ECMP), RIPv1/v2/RIPng, Access OSPF (OSPFv2/v3) and policy-based routing
- Chassis backplane stacking of up to 10 switches
- Dynamic segmentation, ACLs and QoS
- Management via ClearPass Policy Manager and on-premises or cloud-based Aruba Central
- Zero Touch Provisioning for simple branch deployment
- REST APIs and OpenFlow 1.0/1.3 support
- TPM-based hardware security
- Unified wired and wireless policy with AP auto-configuration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 20 x 10/100/1000 PoE+ (IEEE 802.3at)
- Combo ports: 4 x 10/100/1000BASE-T PoE+ or 100/1000 SFP
- Uplink slot: 1 modular slot (JL083A 4x 10G SFP+ or JL078A 1x 40G QSFP+)
- Stacking: 1 module slot, 100 Gbps, up to 10 members
- Power supply slots: 2 modular bays
- PoE power (max): 840 W
- Switching capacity: 128 Gbps (228 Gbps including stacking)
- Throughput: up to 95.2 Mpps
- Processor: Dual Core ARM Cortex A9 @ 1016 MHz
- Memory: 1 GB DDR3 SDRAM
- Flash storage: 4 GB eMMC
- Packet buffer: 12.38 MB (4.5 MB ingress / 7.875 MB egress)
- MAC address table: 32768 entries
- Routing table: 2,000 IPv4 and 1,000 IPv6 in hardware
- 1000 Mbps latency: < 3.1 us
- 10 Gbps latency: < 3.4 us
- Console: dual-personality RJ-45 or USB Micro-B serial, plus USB-A and 100BASE-T out-of-band management port
- Idle power: 63 W
- Hibernate power: 23 W
- Maximum heat dissipation: 279 BTU/hr
- Airflow: front to back
- Operating temperature: 0 to 55 C up to 5000 ft, 0 to 50 C otherwise
- Dimensions (H x W x D): 4.39 x 44.25 x 32.43 cm
- Weight: 4.50 kg

FAQs

Q: Which uplink modules fit the JL320A?
A: The uplink slot takes the JL083A 4-port 10G SFP+ module or the JL078A 1-port 40G QSFP+ module. The JL081A 4-port Smart Rate PoE+ module is also listed for this switch.

Q: Which power supplies does it use?
A: It has 2 modular power supply bays. For PoE operation use the X372 54VDC 680W (JL086A) or 1050W (JL087A) supplies. The maximum PoE budget is 840W.

Q: Does it need a software licence to run?
A: No software licence is required to operate the switch. Static, RIP and Access OSPF routing are listed as standard features of the 2930M series. Aruba Central cloud management needs a separate subscription.

Q: Can it be stacked?
A: Yes. The stacking module slot supports 100 Gbps stacking of up to 10 members using the 2930M stacking module.

Q: How many PoE+ ports does it provide?
A: 20 fixed 10/100/1000 PoE+ ports, plus 4 combo ports that can run as PoE+ copper or SFP. Total PoE power is capped at 840W.
