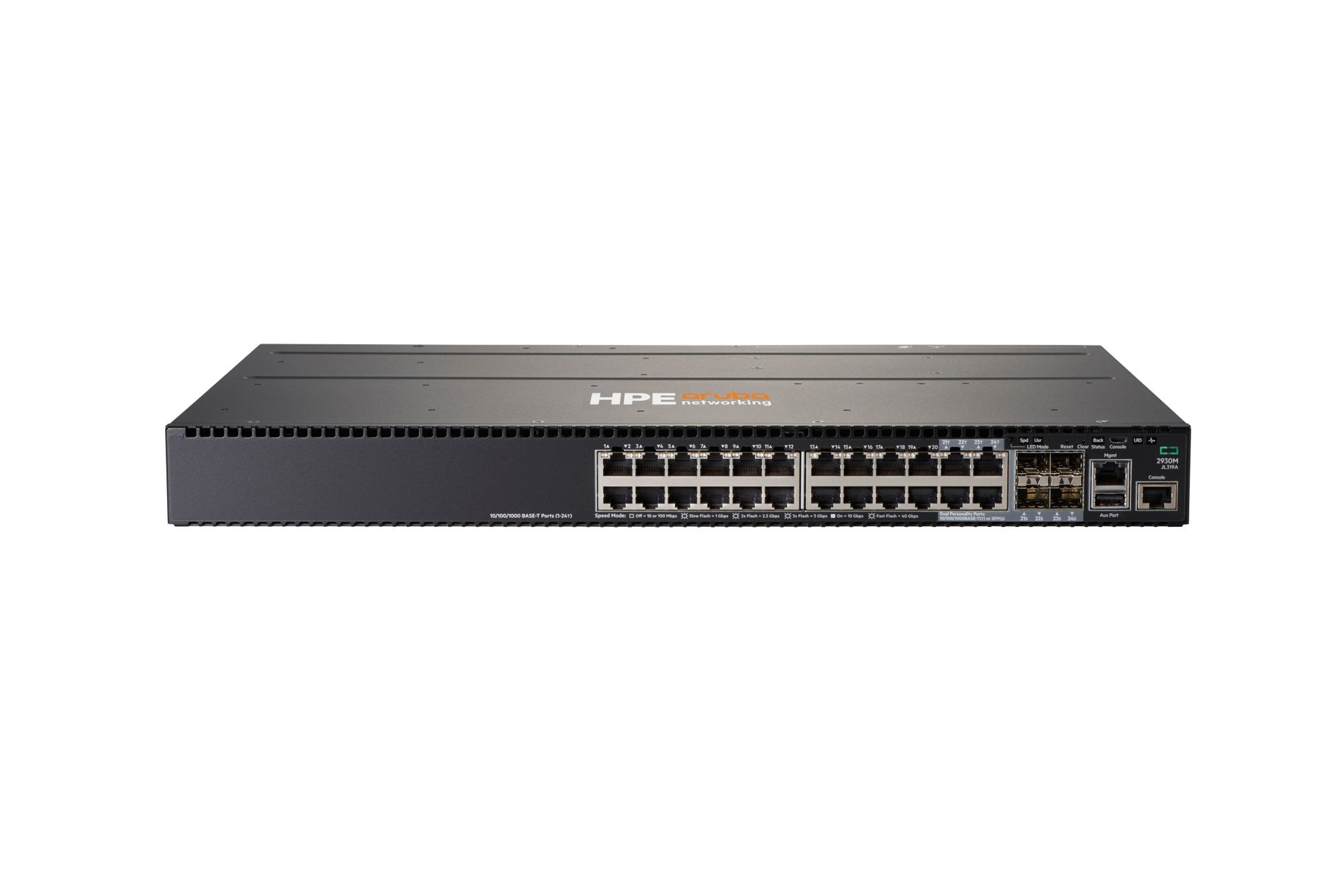

• Aruba JL319A black HPE ProLiant server rack with ports and sleek design
1 1

Aruba

Aruba JL319A | 2930M 24-Port Gigabit Switch, 1-Slot, No PSU

JL319A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 2930M 24G is a 1U Layer 3 managed access switch built for enterprise edge, SMB and branch-office networks, and for campus or SMB aggregation where modular uplinks and stacking are needed. This non-PoE model sits alongside the JL320A 24G PoE+ and JL321A 48G variants in the 2930M Series.

It provides 20 RJ45 10/100/1000 autosensing ports plus four dual-personality ports that run as 10/100/1000BASE-T or as 100/1000 Mbps SFP. One uplink module slot takes 10GbE or 40GbE modules, and one stacking module slot supports stacks of up to 10 switches. Switching capacity is 128 Gbps with throughput up to 95.2 Mpps, and routing covers static, RIP and Access OSPF.

This SKU has no power supply fitted and no PoE. The chassis accepts up to two modular power supplies for redundancy, and maximum draw is 49 W. It is compatible with 2930M uplink modules, the JL325A 2-port stacking module, and Aruba AirWave and ClearPass integration.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular 10GbE and 40GbE uplinks for flexible aggregation
- Modular stacking of up to 10 switches, pay-as-you-grow
- Layer 3 routing with static routes, RIP, Access OSPF, PIM, VRRP and IPv6
- Eight priority queues and per-port rate limiting for robust QoS
- Dynamic Segmentation for unified, secure wired and wireless access
- REST APIs and OpenFlow support for software-defined networking
- Zero Touch Provisioning for simple deployment
- Out-of-band management port keeps management traffic separate from data traffic

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 20 x RJ45 10/100/1000 autosensing
- Combo ports: 4 x dual-personality 10/100/1000BASE-T or 100/1000 Mbps SFP
- Uplink module slot: 1 (10GbE/40GbE modules)
- Stacking module slot: 1 (up to 10 switches per stack)
- PoE: None (non-PoE model)
- Switching capacity: 128 Gbps
- Throughput: up to 95.2 Mpps
- Processor: Dual Core ARM Cortex A9 @ 1016 MHz
- Memory: 1 GB DDR3 SDRAM, 4 GB eMMC
- Packet buffer: 12.38 MB (4.5 MB ingress / 7.875 MB egress)
- Latency: less than 3.1 µs (1000 Mb), less than 3.4 µs (10 Gbps)
- MAC address table: 32768 entries
- Routing table: 2,000 IPv4 and 1,000 IPv6 entries in hardware
- Power supply: modular, accepts up to two (none fitted)
- Input voltage: 100-127 / 200-240 VAC, 50/60 Hz
- Maximum power consumption: 49 W
- Form factor: 1U, rack-mountable
- Dimensions (H x W x D): 4.39 x 44.25 x 32.43 cm
- Weight: 4.65 kg
- Airflow: port to power
- Operating humidity: 15 to 95% at 40 C, non-condensing
- Management: out-of-band Ethernet management port, Aruba AirWave
- Certification: IPv6 Ready

FAQs

Q: Does this switch provide PoE?
A: No. The JL319A is a non-PoE model and provides no PoE budget. For powered ports, look at the JL320A 24G PoE+ variant in the same series.

Q: What power supply does it use?
A: It takes modular power supplies, with JL087A listed as the default option. The chassis accepts up to two for redundancy, and maximum draw is 49 W.

Q: What uplink and stacking options does it support?
A: The uplink slot accepts 2930M 10GbE and 40GbE modules. The stacking slot takes the JL325A 2-port stacking module, allowing stacks of up to 10 switches.

Q: How does the JL319A differ from the JL320A and JL321A?
A: The JL319A is 24 Gigabit ports without PoE. The JL320A is also 24 ports but with PoE+, and the JL321A is the 48-port variant.

Q: Can the four combo ports be used with SFP optics?
A: Yes. Four ports are dual-personality and run as either 10/100/1000BASE-T copper or 100/1000 Mbps SFP.
