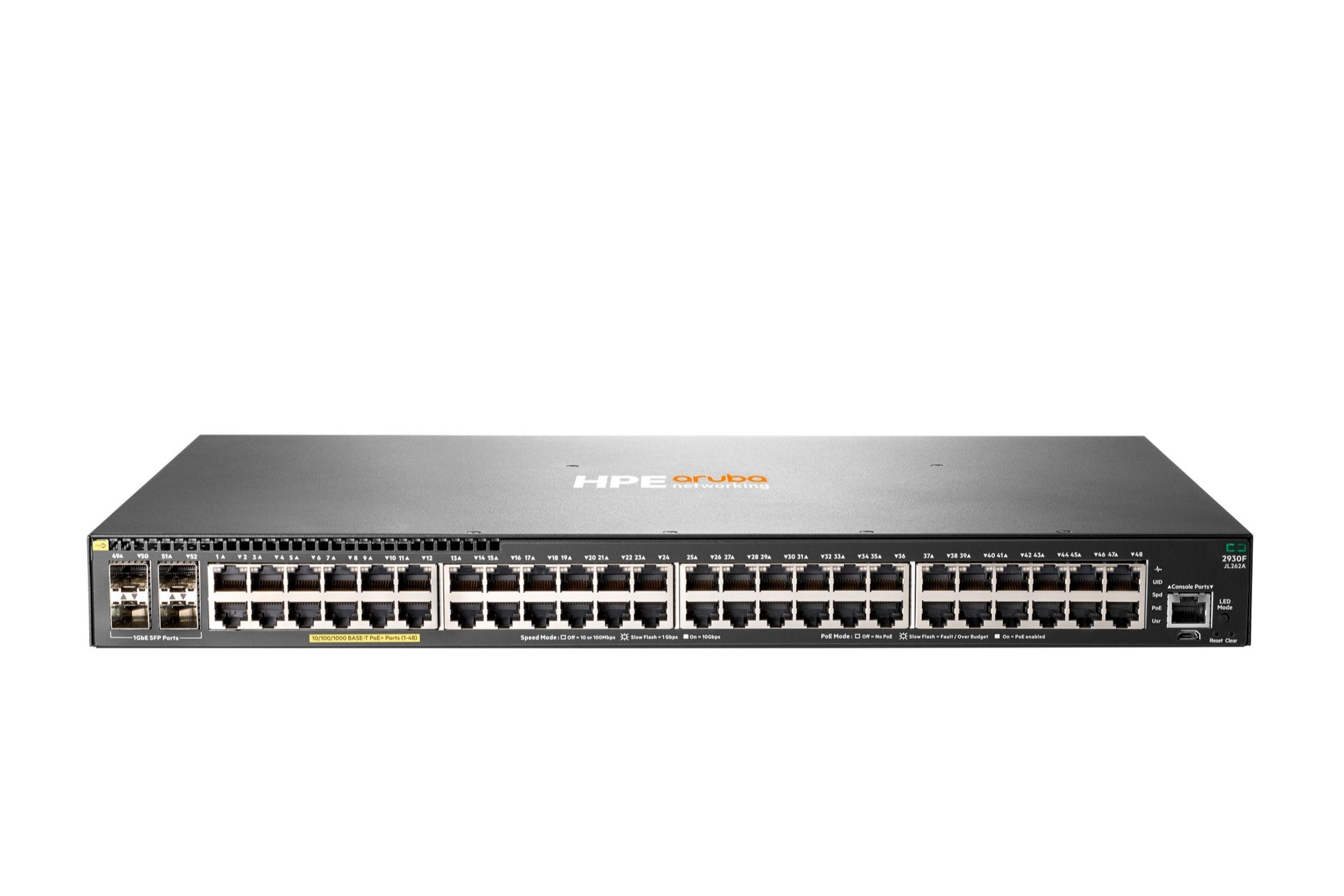

• Aruba JL262A 48-port PoE+ switch with sleek black design
1 1

Aruba

Aruba JL262A | 2930F 48-Port Gigabit PoE+ Switch, 370W, 4x 1G SFP

JL262A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 2930F 48G PoE+ 4SFP is a fixed-port Layer 3 managed access switch built for enterprise edge, branch office and SMB access-layer deployments. It powers wireless access points, IP phones, cameras and IoT devices over PoE+ from a single 1U chassis.

It provides 48 autosensing 10/100/1000 RJ45 ports with IEEE 802.3at PoE+ and a 370 W PoE+ budget, with up to 30 W available per port. Four 1G SFP slots handle uplinks. Switching capacity is 104 Gbps with throughput of up to 77.4 Mpps, backed by 1 GB DDR3 memory, 4 GB eMMC flash and a 12.38 MB packet buffer. Layer 3 routing covers static routes, RIP and Access OSPF, and the full feature set is included with no software licence required.

The four uplink slots accept 1G SFP modules only, as this variant has no 10G SFP+ uplinks. Multiple units can be joined with Virtual Switching Framework (VSF) stacking, and the switch is managed through Aruba AirWave or Aruba Central and integrates with ClearPass for wired and wireless policy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 managed with static routing, RIP and Access OSPF
- Virtual Switching Framework (VSF) stacking combines multiple units into one virtual switch
- Dynamic Segmentation for unified wired and wireless policy
- Integrates with Aruba ClearPass Policy Manager
- Zero Touch Provisioning for simplified deployment
- IPv6 support and robust QoS
- Full feature set included with no software licence required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 RJ45 autosensing, PoE+ (IEEE 802.3at)
- Uplink ports: 4 x 1G SFP
- PoE budget: 370 W PoE+
- Switching capacity: 104 Gbps
- Throughput: up to 77.4 Mpps
- Latency (1000 Mb): under 3.8 µs
- Packet buffer: 12.38 MB (4.5 MB ingress / 7.875 MB egress)
- Processor: Dual Core ARM Cortex A9 at 1016 MHz
- Memory: 1 GB DDR3 SDRAM
- Flash: 4 GB eMMC
- Console: 1 dual-personality serial port (RJ45 or USB micro-B)
- Input voltage: 100-127 / 200-240 VAC, 50/60 Hz
- Maximum power rating: 459 W
- Idle power: 48.6 W
- Heat dissipation: 293 BTU/hr
- Operating humidity: 15 to 95% at 40 C, non-condensing
- Dimensions (H x W x D): 4.39 x 44.25 x 30.42 cm
- Weight: 4.46 kg
- Management: Aruba AirWave, Aruba Central, out-of-band serial

FAQs

Q: Does this switch need a software licence?
A: No. The 2930F series ships with its full feature set, including Layer 3 Access OSPF and RIP, and requires no software licence.

Q: How much PoE power does it provide?
A: It has a 370 W PoE+ budget across its 48 ports, delivering up to 30 W per port under IEEE 802.3at.

Q: Can the uplink ports run at 10G?
A: No. The four uplink slots are 1G SFP only. The JL263A variant is the model with SFP+ 10G uplinks.

Q: Does it support stacking?
A: Yes. It supports Virtual Switching Framework (VSF), which lets multiple switches operate as a single virtual switch.

Q: How is it managed?
A: It can be managed with Aruba AirWave or Aruba Central, or locally through the out-of-band serial console port.
