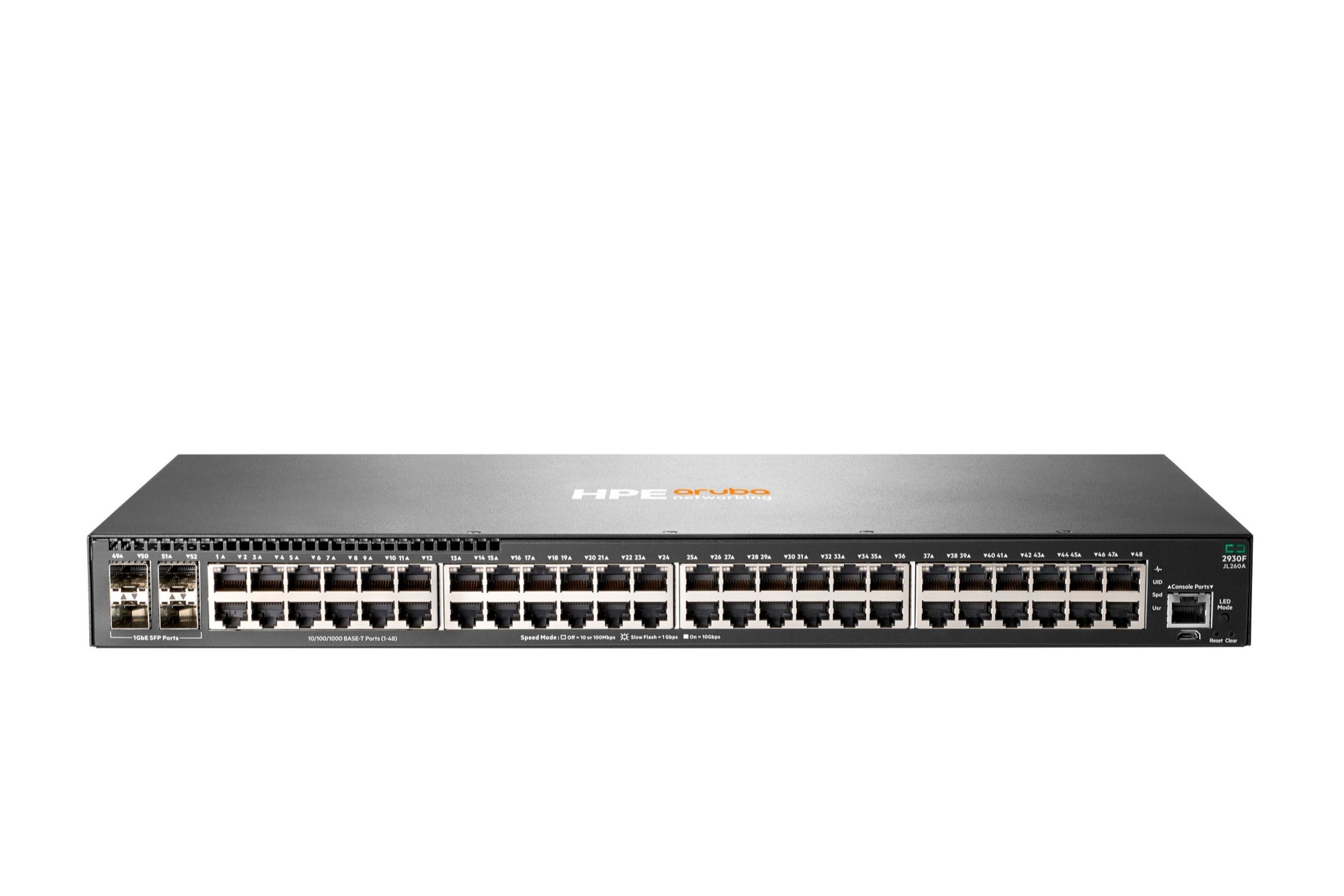

• Aruba JL260A 48-port 1G non-PoE black switch with 4 SFP uplinks
1 1

Aruba

Aruba JL260A | 2930F 48-Port Gigabit Switch, 4x 1G SFP, Non-PoE

JL260A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 2930F 48G 4SFP is a fixed-configuration, non-PoE Layer 3 access switch built for enterprise campus, SMB and branch deployments. It suits wired and wireless converged workplaces that need basic Layer 3 routing with Gigabit copper access and 1G fibre or copper uplinks.

It provides 48 autosensing 10/100/1000 RJ45 ports and 4 x 1G SFP uplink ports, with 104 Gbps of switching capacity and forwarding of up to 77.4 Mpps. The 12.38 MB packet buffer, 32,768-entry MAC table and jumbo frame support up to 9,220 bytes suit busy access layers. Static routing, RIP and Access OSPF are supported, with 2,000 IPv4 and 1,000 IPv6 routing entries in hardware. This is a non-PoE model and the standard feature set needs no software licence or subscription.

The 1U fanless chassis draws a maximum of 46.6 W from its internal AC power supply, and VSF virtual stacking lets several units operate as a single logical switch. The 4 SFP uplink slots accept 1G SFP transceivers, and the switch can be managed through Aruba AirWave, ClearPass and Aruba Central.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Basic Layer 3 switching with static routing, RIP and Access OSPF
- VSF (Virtual Switching Framework) stacking
- ACLs and robust QoS
- Management through Aruba AirWave, ClearPass Policy Manager and Aruba Central
- REST APIs and OpenFlow 1.0/1.3 support for software-defined networks
- Zero-touch deployment support
- Auto-MDIX on all 10/100/1000 ports
- IEEE 802.3az Energy Efficient Ethernet
- 802.1Q VLAN support with 4,094 VLAN IDs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 RJ45 autosensing
- Uplinks: 4 x 1G SFP
- PoE: None (non-PoE model)
- Console port: 1 dual-personality serial (RJ45 or USB micro-B)
- Layer 3: Static routing, RIP and Access OSPF
- Switching capacity: 104 Gbps
- Throughput: up to 77.4 Mpps
- Processor: Dual Core ARM Cortex, 1016 MHz
- Memory: 1 GB DDR3 SDRAM
- Flash: 4 GB eMMC
- Packet buffer: 12.38 MB (4.5 MB ingress, 7.875 MB egress)
- Latency (1000 Mb): under 3.8 us (64-byte packets)
- Latency (10 Gbps): under 1.6 us (64-byte packets)
- Routing table: 2,000 IPv4 and 1,000 IPv6 entries
- MAC address table: 32,768 entries
- Jumbo frames: up to 9,220 bytes
- Power supply: Internal AC, 100-127 / 200-240 VAC, 50/60 Hz
- Maximum power: 46.6 W
- Idle power: 32.7 W
- Heat dissipation: 100 BTU/hr
- Dimensions (W x D x H): 44.25 x 24.63 x 4.39 cm, 1U
- Weight: 3.10 kg
- Operating temperature: 0 to 45 C
- Operating humidity: 15% to 95% at 40 C, non-condensing
- Storage temperature: -40 to 70 C

FAQs

Q: Does this switch need a software licence or subscription?
A: No. The standard feature set, including static routing, RIP and Access OSPF, is included for the life of the product with no licence or subscription required.

Q: Does it support PoE?
A: No. This is a non-PoE model with no PoE budget, so PoE devices will need a separate power source or a PoE-capable switch.

Q: Which transceivers fit the SFP uplink ports?
A: The 4 uplink slots accept 1G SFP transceivers. They do not support 10G SFP+ optics.

Q: How do I rack mount this switch?
A: It is a 1U unit that mounts in a standard rack using the HPE X410 1U Universal 4-post Rackmount Kit (J9583A).

Q: Can I stack several units together?
A: Yes. VSF virtual stacking lets multiple 2930F switches operate as a single logical switch.
