• Aruba JL258A switch with 8x 1GbE PoE+ ports and 2x 10GbE SFP+ uplinks
1 1

Aruba

Aruba JL258A | 2930F 8-Port Gigabit PoE+ Switch, 125W, 2x 10G SFP+

JL258A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

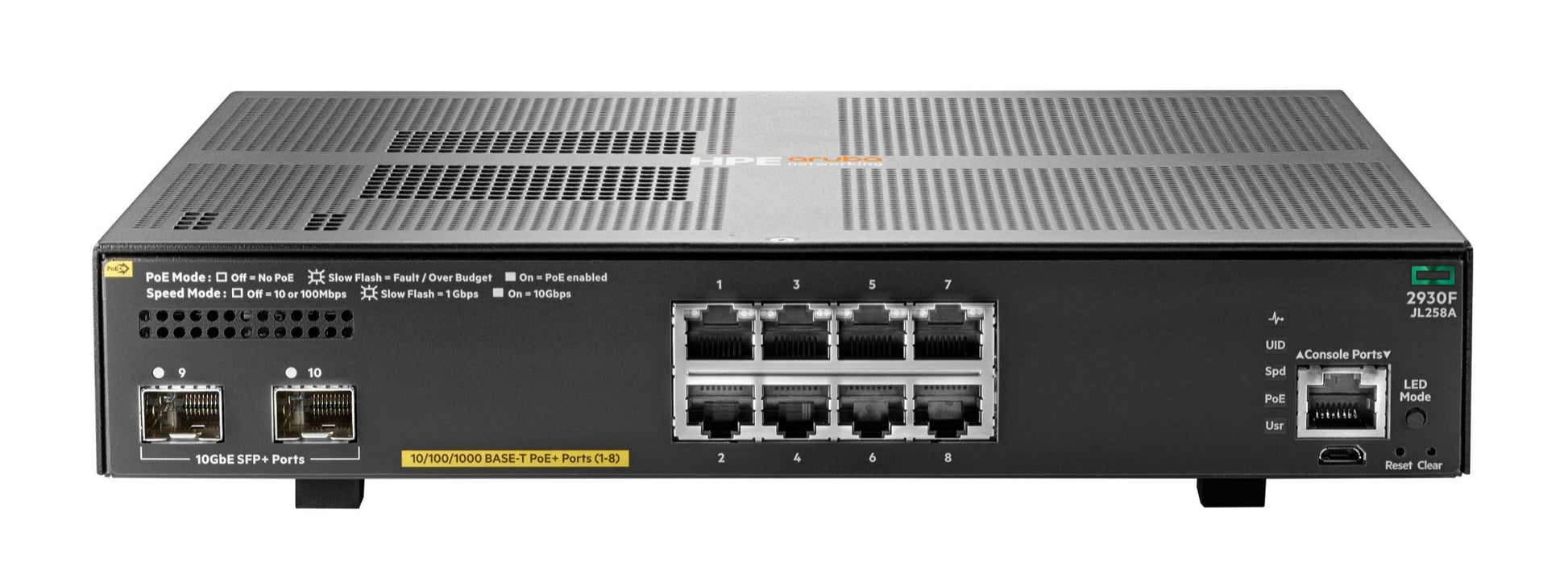

The Aruba 2930F 8G PoE+ 2SFP+ is a compact basic Layer 3 access switch for enterprise campus, SMB and branch deployments. It suits sites that need to power IP phones, wireless access points and security cameras from a single small switch, with 10G uplinks back to the core.

It provides 8 autosensing 10/100/1000 RJ45 ports with IEEE 802.3at PoE+ at up to 30 W per port, backed by a 125W PoE budget. Two PHY-less SFP+ ports support 1G and 10G uplinks. Switching capacity is 56 Gbps with throughput up to 41.7 Mpps, a 12.38 MB packet buffer and a 32768-entry MAC table. Basic Layer 3 routing covers static routes, RIP/RIPng and Access OSPF, and no software licence is required to operate it.

Up to four switches can be stacked using Virtual Switching Framework, and the switch can be managed through Aruba Central, AirWave and ClearPass. It is 1U in height with a 10 inch wide, 10 inch deep footprint and an operating range of 0 to 45 C.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Basic Layer 3 with static routing (ECMP), RIP/RIPng, Access OSPF, PIM, VRRP and policy-based routing
- Virtual Switching Framework (VSF) stacking of up to four switches
- OpenFlow 1.0/1.3 support for SDN
- Zero Touch Provisioning with Aruba Central, AirWave and ClearPass support
- Automatic port configuration and tunneled node when an Aruba AP is detected
- QoS with 8 queues, rate limiting, 802.1p and DiffServ
- Security with 802.1X, MAC and web authentication, ACLs, DHCP protection and dynamic ARP protection
- IPv6 dual stack with MLD snooping, plus 802.3az energy-efficient Ethernet

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 8 x 10/100/1000 RJ45 PoE+ (IEEE 802.3at)
- Uplinks: 2 x SFP+ 1/10GbE, PHY-less
- PoE budget: 125W, up to 30 W per port
- Switching capacity: 56 Gbps
- Throughput: up to 41.7 Mpps
- Processor: Dual Core ARM Cortex A9 at 1016 MHz
- Memory: 1 GB DDR3 SDRAM
- Flash: 4 GB eMMC
- Packet buffer: 12.38 MB (4.5 MB ingress, 7.875 MB egress)
- Latency: under 3.8 µs at 1G, under 1.6 µs at 10G (64-byte packets)
- Routing table: 10000 IPv4 entries, 5000 IPv6 entries
- MAC address table: 32768 entries
- Console: 1 dual-personality RJ45 or USB micro-B serial port
- Dimensions (H x W x D): 4.39 x 25.4 x 25.4 cm, 1U height
- Operating temperature: 0 to 45 C
- Operating humidity: 15% to 95%, non-condensing
- Power: 100-127 / 200-240 VAC, 50/60 Hz
- Safety: UL 60950-1, EN 60950-1, IEC 60950-1

FAQs

Q: Does the JL258A need a software licence?
A: No. The 2930F runs without a software licence or subscription. Aruba Central cloud management is optional and licensed separately.

Q: How much PoE power does it provide?
A: It has a 125W PoE+ budget shared across its 8 ports, with up to 30 W available on any single port under IEEE 802.3at.

Q: What optics can I use in the SFP+ ports?
A: The two SFP+ ports accept 1G SFP and 10G SFP+ transceivers and direct attach cables, so they can be used for 10G uplinks or stacking-free aggregation.

Q: Can it be stacked with other switches?
A: Yes. Virtual Switching Framework (VSF) lets up to four 2930F-series switches operate as one logical switch.

Q: What Layer 3 routing does it support?
A: It supports basic Layer 3 routing: static routes, RIP and RIPng, and Access OSPF with a single area and up to 8 interfaces.
