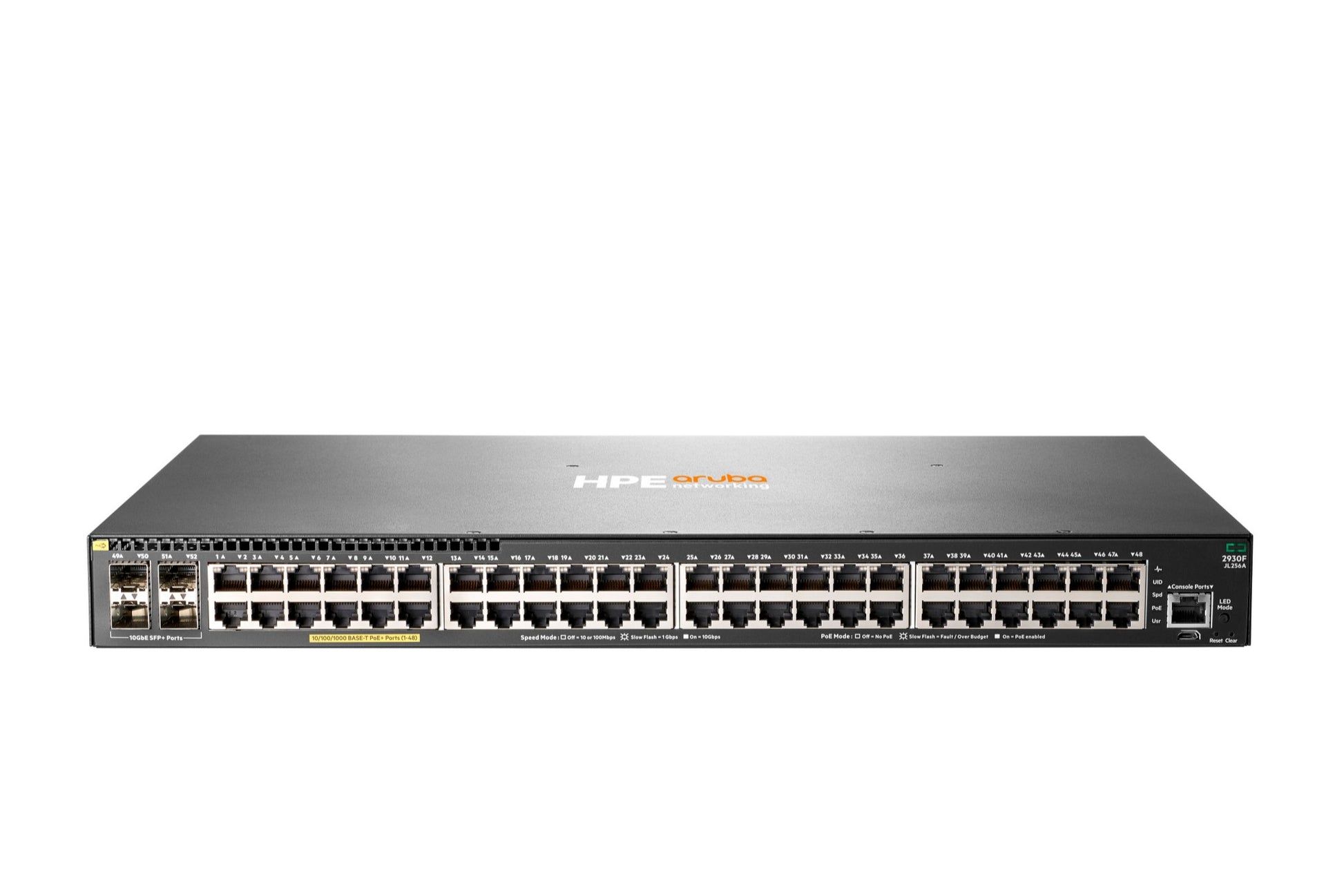

• Aruba JL256A 48-port 1G PoE+ switch with 4x 10G SFP+ uplinks
1 1

Aruba

Aruba JL256A | 2930F 48-Port PoE+ Switch, 370W, 4x 10G SFP+

JL256A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 2930F 48G PoE+ 4SFP+ is a 1U fixed-port basic Layer 3 access switch for enterprise campus, SMB and branch-office networks. It suits access-layer deployments that need to power IP phones, wireless access points and cameras while keeping wired and wireless management unified.

It provides 48 autosensing 10/100/1000 RJ-45 ports with IEEE 802.3at PoE+ and a 370W PoE budget, plus four 1/10GbE SFP+ uplink ports. Switching capacity is 176 Gbps with throughput up to 112.0 Mpps. Layer 3 support covers static routing, RIP/RIPng and Access OSPF. Up to four switches can be combined into one virtual switch using VSF stacking over the SFP+ ports. The 2930F feature set requires no software licence.

The four SFP+ ports accept 1GbE SFP and 10GbE SFP+ transceivers and DACs. Management options include Aruba Central, AirWave, ClearPass and IMC, with Zero Touch Provisioning for faster rollouts.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Virtual Switching Framework (VSF) combines up to four switches into one virtual switch
- Basic Layer 3 routing with static, RIP/RIPng and Access OSPF, plus PIM-SM/DM multicast
- IEEE 802.3at PoE+ delivering up to 30W per port
- OpenFlow 1.0/1.3 support for SDN
- ClearPass Policy Manager integration, per-port tunnelled node and auto-configuration for Aruba access points
- Zero Touch Provisioning with Aruba Central cloud management and AirWave support
- QoS with eight priority queues, rate limiting and large packet buffers
- IPv6 support including dual stack, MLD snooping, RA guard and DHCPv6 protection

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x RJ-45 autosensing 10/100/1000 PoE+ (IEEE 802.3at)
- Uplink ports: 4 x SFP+ 1/10GbE, PHY-less
- Console: 1 dual-personality serial port (RJ-45 or USB micro-B)
- PoE budget: 370W PoE+
- Switching capacity: 176 Gbps
- Throughput: up to 112.0 Mpps
- Processor: Dual Core ARM Cortex, 1016 MHz
- Memory: 1 GB DDR3 SDRAM
- Flash: 4 GB eMMC
- Packet buffer size: 12.38 MB (4.5 MB ingress, 7.875 MB egress)
- Latency (1000 Mb): under 3.8 µs (64-byte packets)
- Latency (10 Gbps): under 1.6 µs (64-byte packets)
- Routing table size: 10,000 IPv4 entries, 5,000 IPv6 entries
- MAC address table size: 32,768 entries
- Stacking: VSF, up to 4 switches
- Dimensions (H x W x D): 4.39 x 44.25 x 30.42 cm, 1U
- Weight: 4.46 kg
- Input voltage: 100-127 / 200-240 VAC, 50/60 Hz
- Maximum power consumption: 459W
- Heat dissipation: 293.0 BTU/hr
- Operating temperature: 0 to 45 C (up to 1524 m), 0 to 40 C (up to 3048 m)
- Operating relative humidity: 15% to 95%, non-condensing
- Storage temperature: -40 to 70 C
- Emissions: EN 55022/CISPR 22 Class A, FCC Part 15 Class A, VCCI Class A, ICES-003 Class A

FAQs

Q: Does the JL256A need a software licence?
A: No. The 2930F feature set, including static routing, RIP, Access OSPF, VSF and IPv6, is included without a separate licence. Aruba Central cloud management is subscription-based if you choose to use it.

Q: How much PoE power does it provide?
A: The switch has a 370W PoE+ budget shared across its 48 ports, with IEEE 802.3at support up to 30W per port.

Q: What can be fitted in the SFP+ uplink ports?
A: The four SFP+ ports accept 1GbE SFP and 10GbE SFP+ transceivers and DAC cables. They also carry VSF stacking links between members.

Q: How many switches can be stacked together?
A: VSF allows up to four switches to operate as a single virtual switch, connected over the SFP+ ports.

Q: What Layer 3 routing does it support?
A: It provides basic Layer 3 routing with static routes, RIP/RIPng and Access OSPF, with routing tables of up to 10,000 IPv4 and 5,000 IPv6 entries.
