• Aruba JL254A 48-port 1G Ethernet switch with 4x 10G SFP+ uplinks
1 1

Aruba

Aruba JL254A | 2930F 48-Port Gigabit Switch, 4x 10G SFP+, No PoE

JL254A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

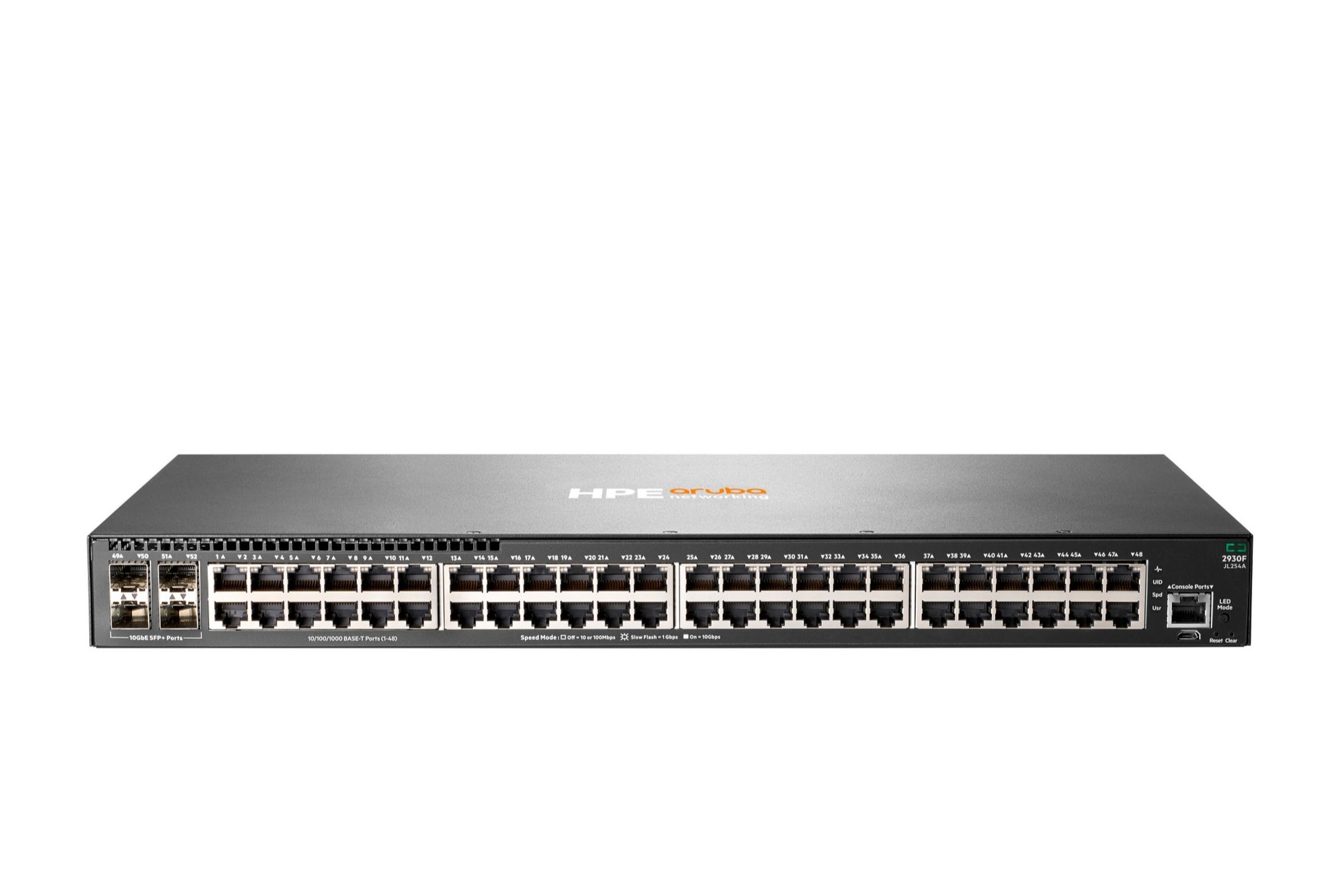

The Aruba 2930F 48G 4SFP+ is a fixed 1U Layer 3 access switch built for campus and branch networks, digital workplaces and integrated wired and wireless deployments. It suits sites that need dynamic segmentation, Layer 3 routing and 1G/10G uplinks in a single compact chassis.

It provides 48 autosensing 10/100/1000 RJ-45 ports and 4 SFP+ 1/10GbE uplink ports. This is a non-PoE model, so it has no PoE budget. Switching capacity is 176 Gbps with throughput up to 112.0 Mpps, backed by a 12.38 MB packet buffer. Routing covers static, RIP and Access OSPF, and VSF stacking supports up to 8 members. The switch ships with the base feature set and needs no software licence. Aruba Central cloud management is optional and uses a separate subscription.

The SFP+ ports accept Aruba 1G SFP and 10G SFP+ transceivers such as J9150D, J9151E and J9153D, as well as DAC cables. It works with ClearPass Policy Manager, AirWave and Aruba Central for policy and management.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 switch with VSF stacking, static, RIP and Access OSPF routing, dynamic segmentation, ACLs and robust QoS
- Cloud and on-premises management, with policy management through ClearPass
- Software-defined ready with REST APIs and OpenFlow 1.0/1.3
- Zero Touch Provisioning for simple deployment
- IPv6 host, dual stack, IPv6 ACL/QoS, static and RIPng routing
- Energy-efficient design with EEE (802.3az) support
- Digital optical monitoring of SFP+ and 1000BASE-T transceivers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x RJ-45 autosensing 10/100/1000
- Uplink ports: 4 x SFP+ 1/10GbE (PHY-less)
- PoE: None
- Console port: 1 dual-personality (RJ-45 or USB micro-B) serial console port
- Switching capacity: 176 Gbps
- Throughput: up to 112.0 Mpps
- Packet buffer: 12.38 MB (4.5 MB ingress / 7.875 MB egress)
- Processor and memory: Dual Core ARM Cortex at 1016 MHz, 1 GB DDR3 SDRAM, 4 GB eMMC
- 1000 Mb latency: less than 3.8 µs (64-byte packets)
- Routing table size: 2,000 IPv4 and 1,000 IPv6 in hardware, 200 OSPF, 256 static, 10,000 RIP
- Layer 3 routing: static, RIP, Access OSPF
- Stacking: VSF, up to 8 members (requires OS-Switch 16.06 or later)
- Management: Aruba AirWave, Aruba Central, IMC, CLI, out-of-band Ethernet management port
- Input voltage: 100-127 / 200-240 VAC
- Maximum power consumption: 46.6 W
- Maximum heat dissipation: 157.2 BTU/hr (165.8 kJ/hr)
- Dimensions (W x D x H): 44.25 x 24.63 x 4.39 cm, 1U height
- Weight: 3.10 kg (6.83 lb)
- Mounting: 1U rack-mountable

FAQs

Q: Does this switch need a software licence?
A: No. The 2930F feature set, including static, RIP and Access OSPF routing and IPv6, is included in the base software. Aruba Central cloud management is optional and needs a separate subscription.

Q: Does it provide PoE for access points or phones?
A: No. This is a non-PoE model with no PoE budget, so PoE devices need a separate injector or a PoE-capable switch. It runs from an internal AC supply rated 100-127 / 200-240 VAC with a maximum draw of 46.6 W.

Q: Which optics work in the SFP+ uplink ports?
A: The 4 SFP+ ports accept Aruba 1G SFP and 10G SFP+ transceivers, including 1G SX/LX modules and 10G SR/LR/ER such as J9150D, J9151E and J9153D. They also accept DAC cables.

Q: Can I stack it with other switches?
A: Yes. VSF stacking supports up to 8 switches and requires OS-Switch 16.06 or later.

Q: What management platforms does it support?
A: It works with Aruba AirWave, Aruba Central and IMC, and with ClearPass Policy Manager for policy control. Local management is available through the CLI and the out-of-band Ethernet management port.
