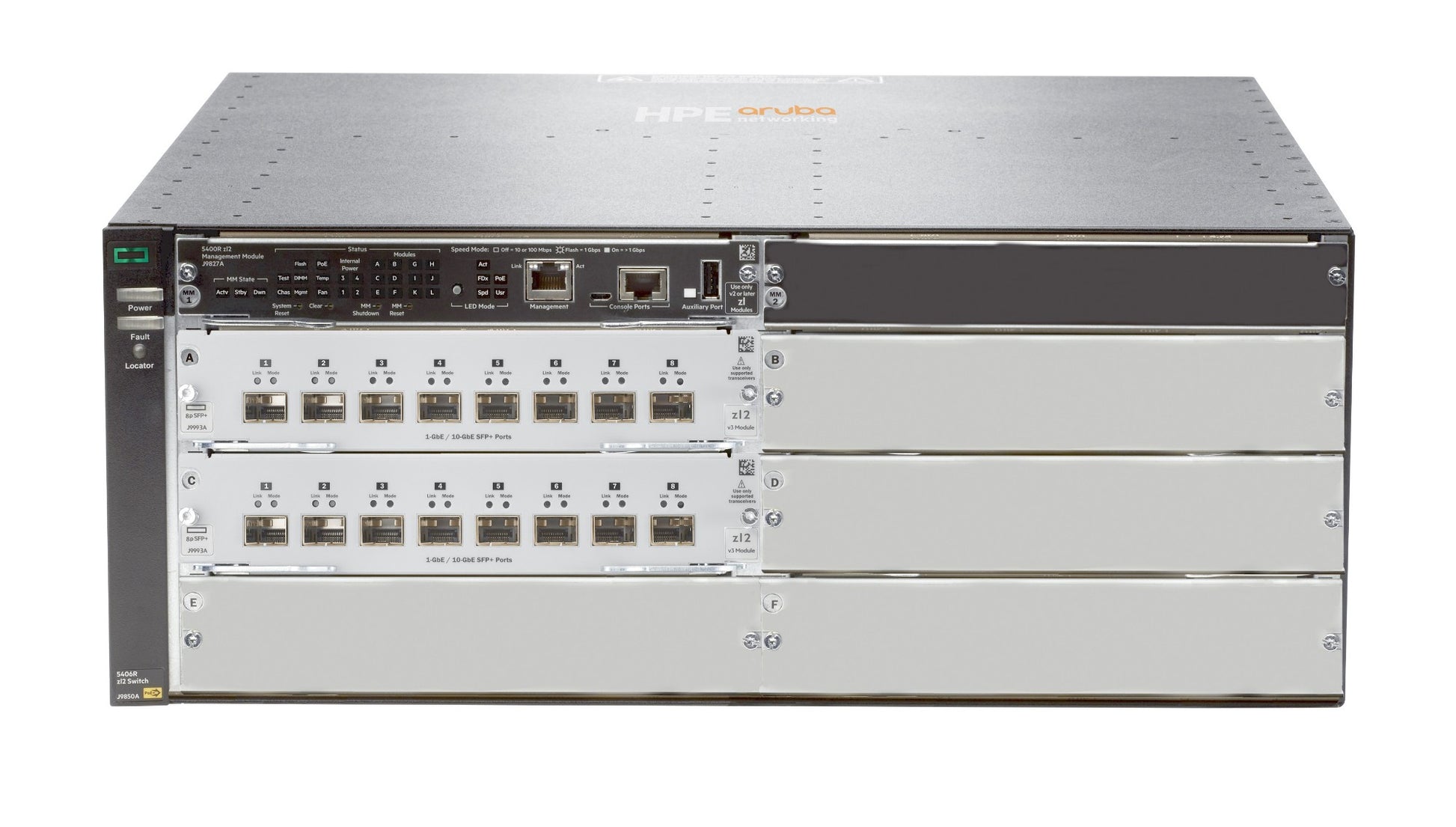

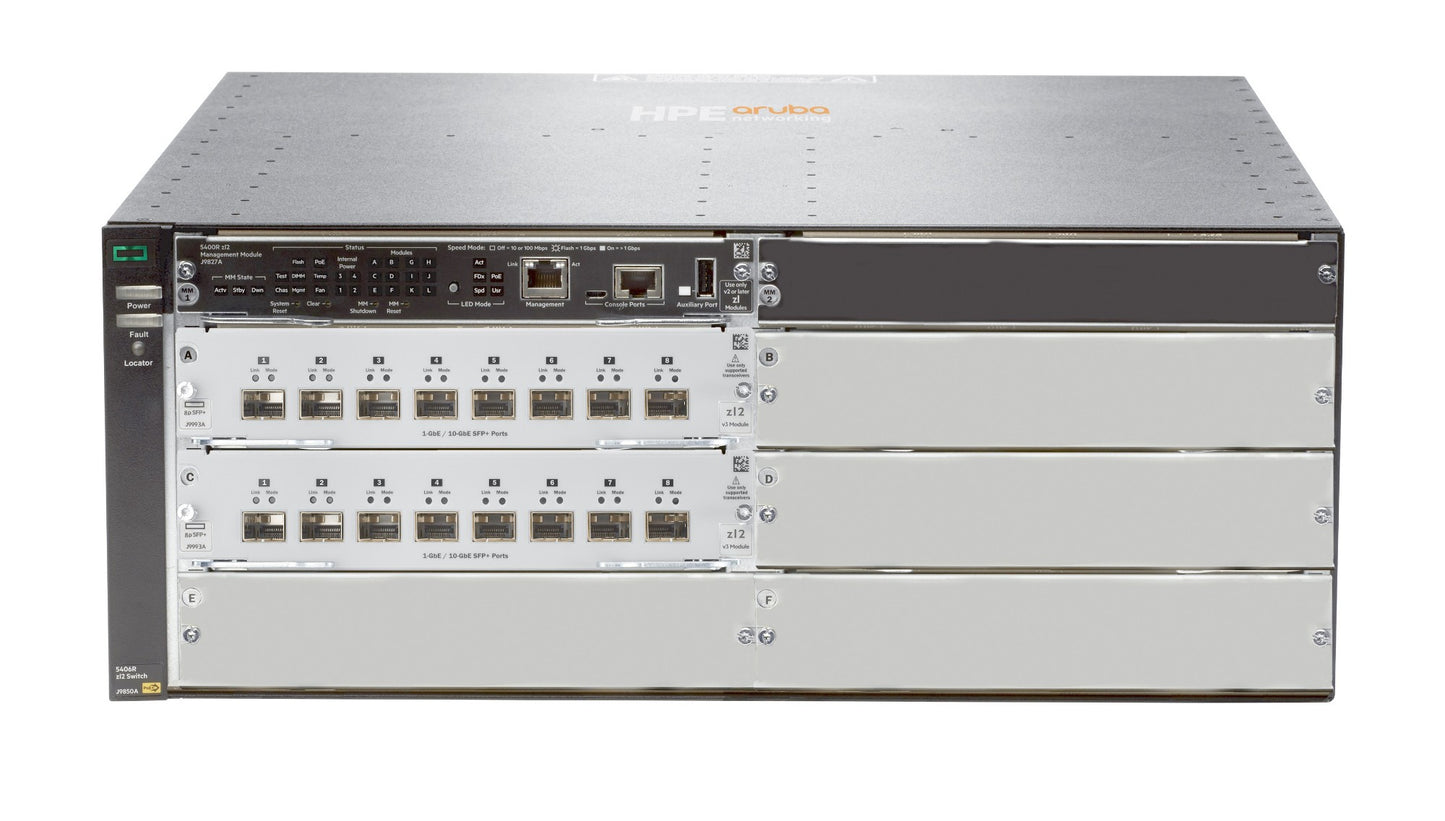

• Aruba JL095A 6-slot chassis with 16x10GbE SFP+ v3 zl2 line card
1 1

Aruba

Aruba JL095A | 5400R zl2 16-Port 10G SFP+ Modular Switch, No PSU

JL095A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 5400R zl2 5406R is a 4U modular Layer 3 chassis switch for campus core, aggregation and high-density access, as well as data-centre top-of-rack or distribution switching. It suits deployments that need modular 10GbE fibre with redundant management.

This configuration provides 16 open 1GbE/10GbE SFP+ ports from two 8-port v3 zl2 SFP+ modules, with 4 open module slots left for expansion. The chassis is rated for 960 Gbps routing and switching capacity, 1015 Gbps of switch fabric bandwidth and up to 571.4 Mpps throughput. It carries 4 GB of DDR3 SDRAM and 1 GB of flash, and supports 64K MAC addresses with 10,000 IPv4 and 5,000 IPv6 routes. This is the No PSU variant, so the two power supply slots must be fitted with 5400R zl2 power supplies, with a minimum of one required. No subscription is needed to operate the switch.

The chassis accepts 5400R zl2 and v3 zl2 modules, including 1GbE, 10GbE SFP+, Smart Rate multi-gigabit and 40GbE QSFP+ options, along with 1G and 10G SFP and SFP+ transceivers. It includes the J9827A management module and J9831A fan tray.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular design with redundant, hot-swappable management and power
- Non-Stop Routing (NSR) and virtual switching framework (VSF)
- Layer 3 routing with RIP, OSPFv2/v3, BGP, VRRP, PIM-SM and PIM-DM
- IPv6 support, ACLs, QoS/CoS, private VLAN and MAC-based VLAN
- MACsec support
- Port security, dynamic ARP protection, DHCP protection, STP Root Guard and UDLD
- sFlow v5 and dual firmware images
- Energy Efficient Ethernet (802.3az)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Device type: Managed modular Layer 3 switch
- Enclosure: Rack-mountable, 4U, 5406R 6-slot chassis
- Ports: 16 x 1GbE/10GbE SFP+ (open transceiver slots)
- Open module slots: 4
- Power supply slots: 2 (minimum 1 required, ordered separately)
- Included modules: J9827A management module, J9831A fan tray
- Routing/switching capacity: 960 Gbps
- Switching fabric bandwidth: 1015 Gbps
- Throughput: up to 571.4 Mpps
- IPv4 routing table entries: 10000
- IPv6 routing table entries: 5000
- MAC address table size: 64K entries
- Jumbo frame support: Yes
- Memory: 4 GB DDR3 SDRAM
- Flash memory: 1 GB
- Maximum port density: 144 x 10/100/1000, or 144 x SFP, or 48 x SFP+, or 48 x Smart Rate multi-gigabit, or 12 x 40GbE, or a combination
- Input voltage: 120 V AC / 230 V AC (via power supplies)
- Dimensions (W x D x H): approx. 444 x 451 x 175 mm
- Weight: approx. 12.75 kg

FAQs

Q: Does this switch include a power supply?
A: No. This is the No PSU variant. The chassis has 2 power supply slots and at least one 5400R zl2 power supply must be fitted, with 120/230 V AC input.

Q: Does it need a licence or subscription?
A: No subscription is needed to operate the switch.

Q: Can I add more ports later?
A: Yes. It has 4 open module slots that accept 5400R zl2 and v3 zl2 modules, including 1GbE, 10GbE SFP+, Smart Rate multi-gigabit and 40GbE QSFP+ options.

Q: Does it supply PoE?
A: PoE is not provided by the chassis itself. It depends on the power supplies and modules chosen.

Q: What transceivers does it take?
A: The 16 ports accept 1G and 10G SFP and SFP+ transceivers, so you can mix 1GbE and 10GbE fibre or copper links.
