• Aruba JL073A 24-port 1G PoE+ L3 switch with modular uplink
1 1

Aruba

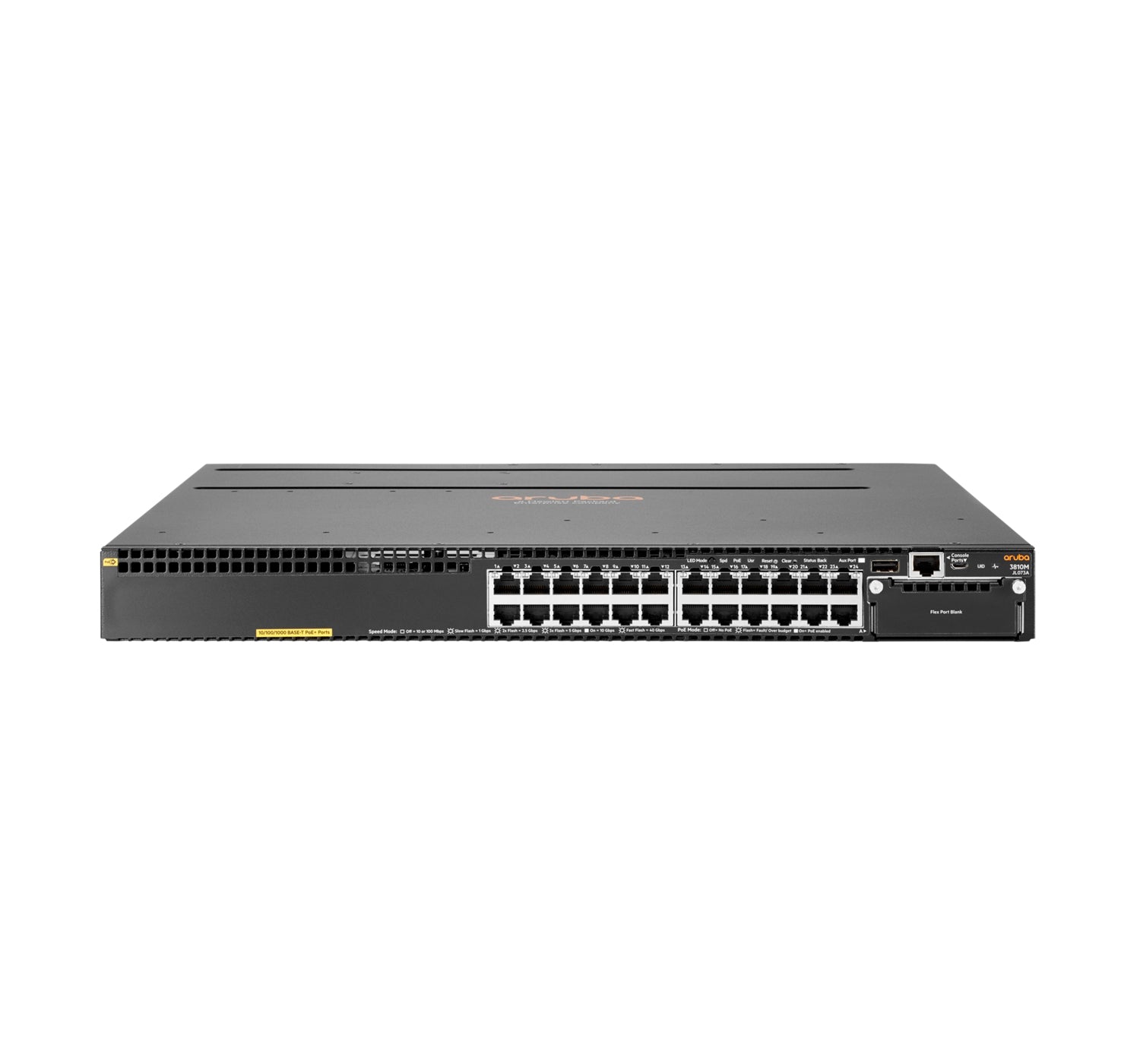

Aruba JL073A | 3810M 24-Port PoE+ Switch, 1 Module Slot, No PSU

JL073A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 3810M 24G PoE+ 1-slot is a stackable Layer 3 managed access switch for enterprise, SMB and branch campus networks. It supplies PoE+ to wireless access points, IP phones and IoT devices, and its open module slot provides modular 10GbE or 40GbE uplinks for wireless aggregation and backhaul.

The switch has 24 RJ-45 10/100/1000 PoE+ ports (IEEE 802.3at, Class 4) in a 1U rack-mountable chassis. The single open module slot accepts a 4x SFP+ module, or a module with one or two 40GbE QSFP+ ports. Switching capacity is 160 Gbps, with throughput up to 95.2 Mpps, a 64K MAC address table, jumbo frame support, and routing tables of 10,000 IPv4 and 5,000 IPv6 entries. This SKU is the chassis without a power supply. One or two 3810 power supplies are ordered separately, and the supply you choose sets the available PoE+ budget. The advanced L2 and L3 feature set is included with no software licence required.

The 3810M supports backplane stacking through an optional 4-port stacking module. It can be managed through Aruba AirWave or Aruba Central, and it integrates with Aruba ClearPass for security and captive portal.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Advanced Layer 2 and Layer 3 feature set including OSPF, IPv4 BGP, IPv6, robust QoS and policy-based routing
- Dynamic Segmentation
- Backplane stacking for resiliency
- OpenFlow and REST API support for SDN
- Managed through Aruba AirWave or Aruba Central
- Aruba ClearPass integration for security and captive portal
- Replaceable fan tray
- Modular 10GbE and 40GbE uplinks for backhaul

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Device type: Layer 3 managed, stackable switch
- Enclosure: 1U rack-mountable
- Ports: 24 x 10/100/1000 RJ-45
- PoE: PoE+ (IEEE 802.3at, Class 4)
- Expansion: 1 x open module slot
- Uplink module options: 4x SFP+, 1x 40GbE QSFP+ or 2x 40GbE QSFP+
- Stacking: backplane stacking via optional 4-port stacking module
- Power supply: sold separately, one or two supported, PSU choice sets PoE budget
- Fan tray: JL088A
- Switching capacity: 160 Gbps
- Switching fabric bandwidth: 169 Gbps
- Throughput (64-byte packets): up to 95.2 Mpps
- Latency (1000BaseT): 2.8 µs
- Latency (10 Gbps): 1.8 µs
- Latency (40 Gbps): 1.5 µs
- MAC address table: 64K entries
- IPv4 routing table: 10000 entries
- IPv6 routing table: 5000 entries
- Jumbo frames: supported
- Software licence: not required

FAQs

Q: Does the JL073A need a software licence?
A: No. The advanced Layer 2 and Layer 3 feature set is included with no software licence required.

Q: What power supply does this switch need?
A: It ships as a chassis without a power supply. It supports one or two Aruba 3810 power supplies ordered separately, and the PSU choice sets the available PoE+ budget.

Q: Which uplink modules fit the open slot?
A: The module slot accepts a 4x SFP+ module, a module with one 40GbE QSFP+ port, or a module with two 40GbE QSFP+ ports.

Q: Can it be stacked?
A: Yes. It supports backplane stacking using the optional 4-port stacking module.

Q: How can it be managed?
A: It can be managed through Aruba AirWave or Aruba Central, and it integrates with Aruba ClearPass for security.
