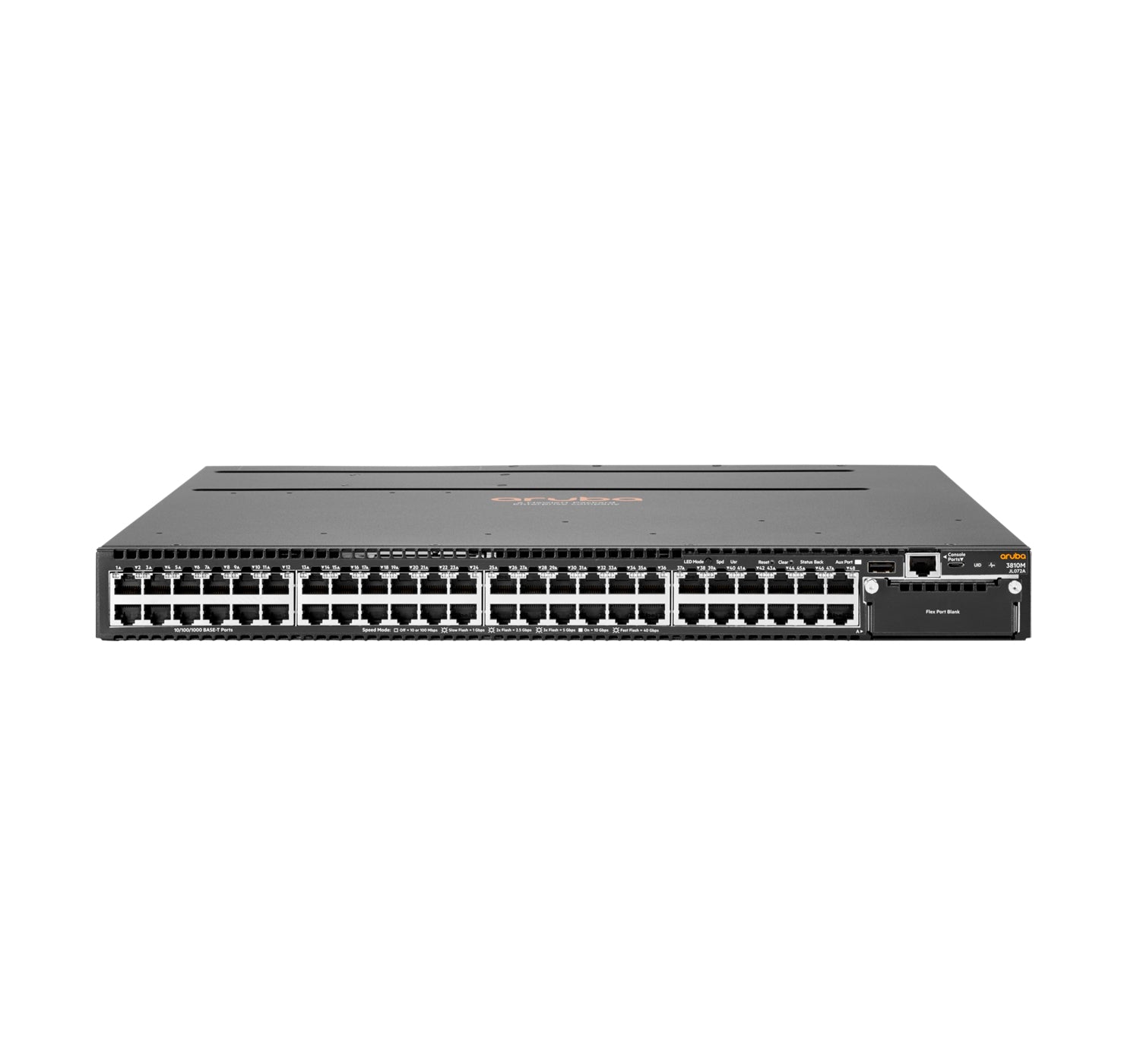

• Aruba JL072A 48-port 1G Ethernet switch with modular uplink
1 1

Aruba

Aruba JL072A | 3810M 48-Port Gigabit Switch, 1 Uplink Slot, No PSU

JL072A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 3810M 48G 1-slot is a stackable, fully managed Layer 3 campus access switch for enterprise, SMB and branch deployments. It suits wireless aggregation and backhaul, and stacked access layers that need resiliency.

This non-PoE model provides 48 autosensing 10/100/1000 RJ45 ports, with MACsec supported on ports 1 to 48. One open module slot accepts an optional uplink module with up to 4x 10G SFP+ ports or up to 2x 40GbE QSFP+ ports, and a separate stacking module slot enables backplane stacking of up to 336 Gbps. Switching capacity is 320 Gbps with throughput of up to 190.5 Mpps, backed by 2 GB of memory and a 13.5 MB packet buffer. The advanced Layer 2 and Layer 3 feature set is included with no software licence required.

There is no internal power supply. One power supply is required and two are supported for redundancy. The switch is 1U rack-mountable and includes the JL088A fan tray.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Advanced Layer 2 and Layer 3 feature set including OSPF, IPv4 BGP, IPv6, tunnelled node and policy-based routing
- Backplane stacking for high-performance, resilient stacks
- Modular line-rate 10GbE and 40GbE uplinks for wireless aggregation and backhaul
- MACsec support on all 48 access ports
- Redundant, hot-swappable power supply support, 80 PLUS Silver certified
- Energy-Efficient Ethernet (IEEE 802.3az) support
- Selectable queue configurations to tune buffering for application needs
- Replaceable fan tray

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x RJ45 autosensing 10/100/1000 (non-PoE)
- MACsec: Ports 1-48
- Open module slot: 1 (up to 4x SFP+ or 2x 40GbE QSFP+ with optional module)
- Stacking module slot: 1 (backplane stacking)
- Stacking throughput: up to 336 Gbps
- Switching capacity: 320 Gbps
- Switch fabric speed: 338 Gbps
- Throughput: up to 190.5 Mpps (64-byte packets)
- Memory: 2 GB DDR3 SDRAM
- Packet buffer: 13.5 MB
- Latency (1000 Mb): under 2.8 µs
- Latency (10 Gb): under 1.8 µs
- Latency (40 Gb): under 1.5 µs
- Routing table: 10,000 IPv4 entries, 5,000 IPv6 entries
- MAC address table: 64,000 entries
- Management ports: 1x RJ45 serial console, 1x RJ45 out-of-band, 1x dual-personality RJ45 or USB micro-B
- Power supply slots: 2 (minimum 1 required)
- Dimensions (H x W x D): 4.39 x 44.25 x 43.13 cm (1U)
- Weight: 5.99 kg
- Operating temperature: 0 to 45 C
- Operating humidity: 15 to 95% at 40 C, non-condensing
- Acoustic noise: 38 dB power, 21.8 dB pressure

FAQs

Q: Does this switch need a software licence?
A: No. The advanced Layer 2 and Layer 3 feature set, including OSPF, BGP and policy-based routing, is included with the switch.

Q: Does the JL072A include a power supply?
A: No, it has no internal power supply. It has two power supply slots and needs a minimum of one power supply, with the second slot available for redundancy.

Q: Does it provide PoE?
A: No. This is a non-PoE model, so it provides no PoE budget. It suits wired clients and uplinks that are powered separately.

Q: What uplinks can I add to the open module slot?
A: The slot takes a 4x SFP+ module, a 1x 40GbE QSFP+ module or a 2x 40GbE QSFP+ module. No uplink ports are fitted until a module is installed.

Q: How do I stack it with other 3810M switches?
A: Stacking uses a separate 4-port backplane stacking module in the dedicated stacking module slot. It provides up to 336 Gbps of stacking throughput.
