• Aruba JL071A 24-port 1G non-PoE L3 switch with modular uplink
1 1

Aruba

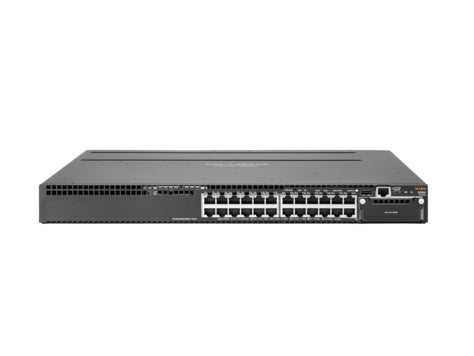

Aruba JL071A | 3810M 24-Port Gigabit Switch, 1 Uplink Slot, No PSU

JL071A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 3810M 24G 1-slot is a 1U Layer 3 managed switch for campus access and aggregation. It suits enterprise, SMB and branch-office networks that need to aggregate wireless access points and high-speed uplinks, with stacking available for resilience.

It provides 24 autosensing 10/100/1000 RJ-45 ports with no PoE, and MACsec support on ports 1-24. One open uplink module slot takes up to 4 x SFP+ ports or a single 40GbE port with an optional module, and a separate backplane slot is provided for a stacking module. Switching capacity is 160 Gbps with throughput up to 95.2 Mpps, and the MAC address table holds 64,000 entries. This SKU has two power supply slots and is supplied without a PSU, so at least one Aruba 3810M power supply is needed to run it.

It works with the Aruba 3810M 4SFP+ module, the 3810M 1QSFP+ 40GbE module, the Aruba 3810M backplane stacking module and Aruba 3810M power supplies. No separate licence is required to use the full enterprise Layer 3 feature set.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 switching with backplane stacking, low latency and resiliency
- Modular line-rate 10GbE and 40GbE uplinks for wireless aggregation
- MACsec encryption on all 24 access ports
- OpenFlow support for SDN applications
- Supports Aruba ClearPass Policy Manager for access control
- Dual power supply slots for redundancy

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 10/100/1000 RJ-45 autosensing (non-PoE)
- Standards: IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T
- Duplex: 10BASE-T/100BASE-TX half or full, 1000BASE-T full only
- MACsec: Ports 1-24
- Uplink module slot: 1 open slot, up to 4 x SFP+ or 1 x 40GbE with optional module
- Stacking: 1 backplane stacking module slot
- Management ports: 1 RJ-45 serial console, 1 RJ-45 out-of-band management, 1 dual-personality RJ-45 or USB micro-B
- Power supply slots: 2, at least 1 PSU required
- Switching capacity: 160 Gbps
- Switch fabric speed: 169 Gbps
- Throughput: up to 95.2 Mpps (64-byte packets)
- MAC address table: 64,000 entries
- Routing table: 10,000 IPv4 entries, 5,000 IPv6 entries
- Dimensions (H x W x D): 4.39 x 44.25 x 43.13 cm
- Form factor: 1U rack-mount, Layer 3 managed

FAQs

Q: Does the JL071A need a licence?
A: No separate licence is required. The 3810M includes its full enterprise Layer 3 feature set.

Q: Does this switch include a power supply?
A: No. This SKU has two power supply slots and at least one Aruba 3810M power supply must be ordered separately to run it.

Q: Does it provide PoE?
A: No. This is a non-PoE model and does not supply power to connected devices.

Q: What can go in the uplink module slot?
A: The open slot accepts the Aruba 3810M 4SFP+ module for up to 4 x SFP+ ports, or the 3810M 1QSFP+ 40GbE module for a single 40GbE port.

Q: Can it be stacked?
A: Yes. It has a backplane stacking module slot that takes the Aruba 3810M backplane stacking module.
