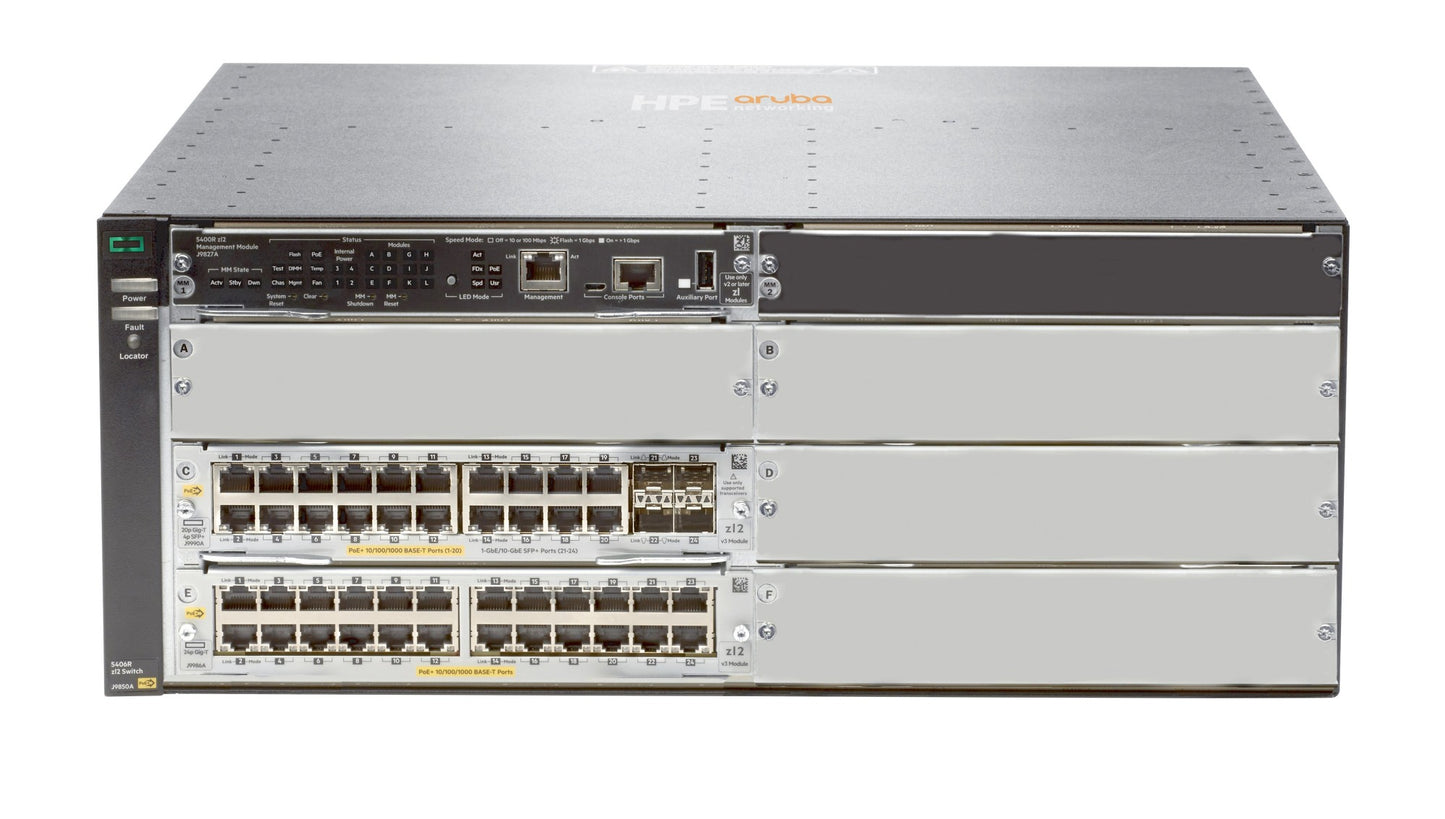

• Aruba JL003A 6-slot chassis with 44x 1G PoE+ ports and 4x 10G SFP+ uplinks
1 1

Aruba

Aruba JL003A | 5406R 44-Port PoE+ Switch, 4x 10G SFP+, No PSU

JL003A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 5406R zl2 is a modular 6-slot Layer 3 chassis switch for enterprise campus access and aggregation or core deployments. It suits sites that need high-density PoE+ to power IP phones, wireless access points and cameras from a single chassis.

This configuration provides 44 x 10/100/1000 PoE+ (802.3at) copper ports and 4 x 1/10GbE SFP+ uplink ports, built on v3 zl2 modules with MACsec capability. The chassis ships without a power supply, so one or more 5400R zl2 power supplies are fitted separately, and the PoE+ budget depends on the supplies installed.

The SFP+ ports accept SFP and SFP+ transceivers for 1G or 10G fibre, as well as direct attach cabling. The switch works with 5400R zl2 and v3 zl2 modules and 5400R zl2 power supplies, and is managed through the CLI, web interface and SNMP.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular chassis with hot-swappable modules
- Layer 3 routing with inter-VLAN support
- PoE+ (802.3at) on the 44 copper ports
- MACsec-capable v3 zl2 modules
- SFP+ uplinks for 1G or 10G fibre and DAC connectivity
- Suited to campus access, aggregation or core roles

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: 5406R 44GT PoE+/4SFP+ (No PSU) v3 zl2 Switch
- Manufacturer part number: JL003A
- Product type: Layer 3 modular switch
- Chassis: 6-slot modular chassis (5406R)
- Network ports: 44 x 10/100/1000 PoE+ (802.3at)
- Uplink ports: 4 x 1/10GbE SFP+
- Module generation: v3 zl2 with MACsec
- Included modules: 5400R zl2 Management Module (J9827A)
- Included modules: 24-port 10/100/1000BASE-T PoE+ MACsec v3 zl2 Module (J9986A)
- Included modules: 10/100/1000BASE-T PoE+ / 4-port 1G/10GbE SFP+ MACsec v3 zl2 Module (J9990A)
- Included fan tray: 5412R zl2 Switch Fan Tray (J9831A)
- Power: separate 5400R zl2 power supply required
- Management: CLI, web GUI and SNMP

FAQs

Q: Does this switch include a power supply?
A: No. This SKU is the chassis configuration without a power supply, so one or more 5400R zl2 power supplies must be fitted separately.

Q: How is the PoE+ budget determined?
A: The available PoE+ budget depends on the 5400R zl2 power supplies installed. Choose the supply capacity to match the number of PoE+ devices you plan to power.

Q: What can I connect to the SFP+ uplink ports?
A: The four uplink ports accept SFP and SFP+ transceivers for 1G or 10G fibre links, and direct attach cabling.

Q: Which modules and power supplies work with this chassis?
A: It uses 5400R zl2 and v3 zl2 modules and the 5400R zl2 power supplies.

Q: How does this SKU differ from other 5406R variants?
A: This model is the 44-port 1G PoE+ configuration with 4x 10G SFP+ uplinks in a 6-slot chassis, supplied without a power supply.
