• Aruba JL002A 8-port 10G PoE+ switch with SFP+ uplinks
1 1

Aruba

Aruba JL002A | 5406R 8x 10G PoE+ 8x SFP+ Chassis, No PSU

JL002A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

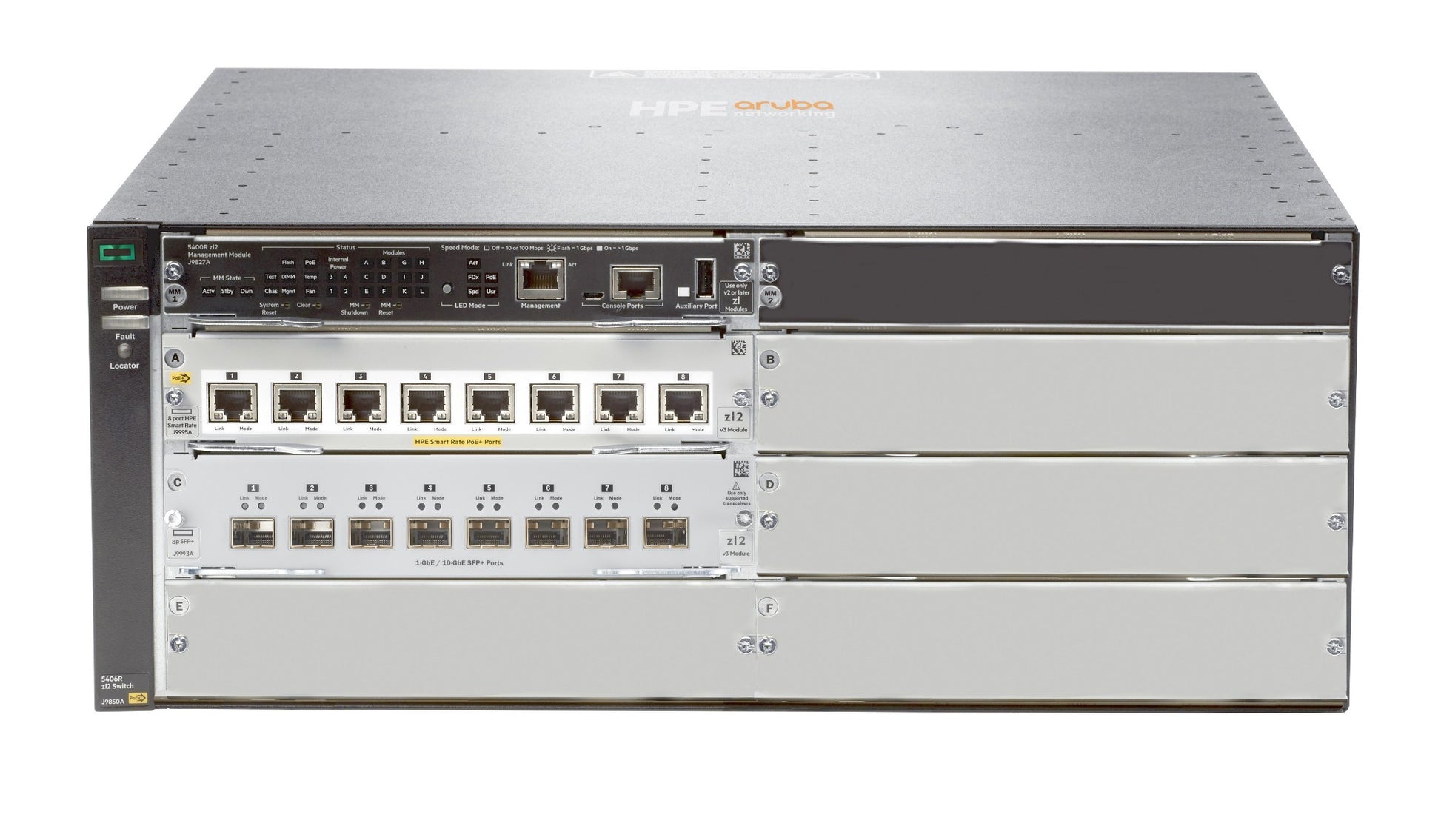

The Aruba 5406R v3 zl2 is a 6-slot Layer 3 modular chassis switch from the Aruba 5400R zl2 series, built for mobile-first campus access and aggregation. It suits sites that need multi-gigabit PoE+ for 802.11ac and 802.11ax wireless access point uplinks, along with wireless traffic aggregation.

This SKU is populated with 8 HPE Smart Rate RJ-45 ports supporting 1/2.5/5/10GBASE-T with PoE+ (802.3at), plus 8 open 10GbE SFP+ transceiver slots. Four module slots remain open for expansion. The base Layer 3 feature set is supported, and the chassis includes the Aruba 5400R zl2 Management Module (J9827A) and the 5406R zl2 Switch Fan Tray (J9831A). It is the no-PSU variant, so one or more Aruba 5400R zl2 power supplies are selected according to the PoE+ budget you need, and redundant supplies are supported.

The open slots take Aruba 5400R v3 zl2 modules, the SFP+ ports take SFP+ transceivers, and the series supports VSF stacking.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 modular switch with VSF stacking, low latency and resiliency
- HPE Smart Rate ports deliver multi-gigabit bandwidth and PoE+ power
- Scalable line-rate 40GbE for wireless traffic aggregation
- OpenFlow support for SDN applications
- Concurrent IEEE 802.1X, Web and MAC authentication per port, up to 32 sessions
- Redundant power supply support
- Series scales to up to 96 line-rate 10GbE ports and up to 288 PoE+ ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: 6-slot modular (5406R v3 zl2)
- Copper ports: 8x RJ-45 HPE Smart Rate 1/2.5/5/10GBASE-T
- PoE: 802.3at (PoE+) on the 8 Smart Rate ports
- Fibre ports: 8x open 10GbE SFP+ slots
- Open module slots: 4
- Layer: Layer 3 (base feature set)
- Management module: Aruba 5400R zl2 Management Module (J9827A)
- Fan tray: 5406R zl2 Switch Fan Tray (J9831A)
- Power supply: not fitted, Aruba 5400R zl2 power supplies required
- Input voltage: 110-127 / 200-240 VAC depending on power supply chosen
- Weight: 12.75 kg
- Operating relative humidity: 15% to 95% at 45 C, non-condensing

FAQs

Q: Does this switch need a separate power supply?
A: Yes. This is the no-PSU variant, so one or more Aruba 5400R zl2 power supplies must be selected. Choose the model according to the PoE+ budget you need. Redundant power supplies are supported.

Q: What can be fitted in the open module slots?
A: The four open slots take Aruba 5400R v3 zl2 modules, which lets you add further ports as your network grows.

Q: What speeds do the multi-gigabit ports support?
A: The 8 Smart Rate RJ-45 ports support 1, 2.5, 5 and 10GBASE-T with PoE+ (802.3at), suiting multi-gigabit wireless access point uplinks.

Q: Does it need a licence or subscription to run Layer 3?
A: No subscription is required for base operation. The base Layer 3 feature set is supported on this chassis.

Q: Which management module and fan tray does it use?
A: It uses the Aruba 5400R zl2 Management Module (J9827A) and the 5406R zl2 Switch Fan Tray (J9831A).
