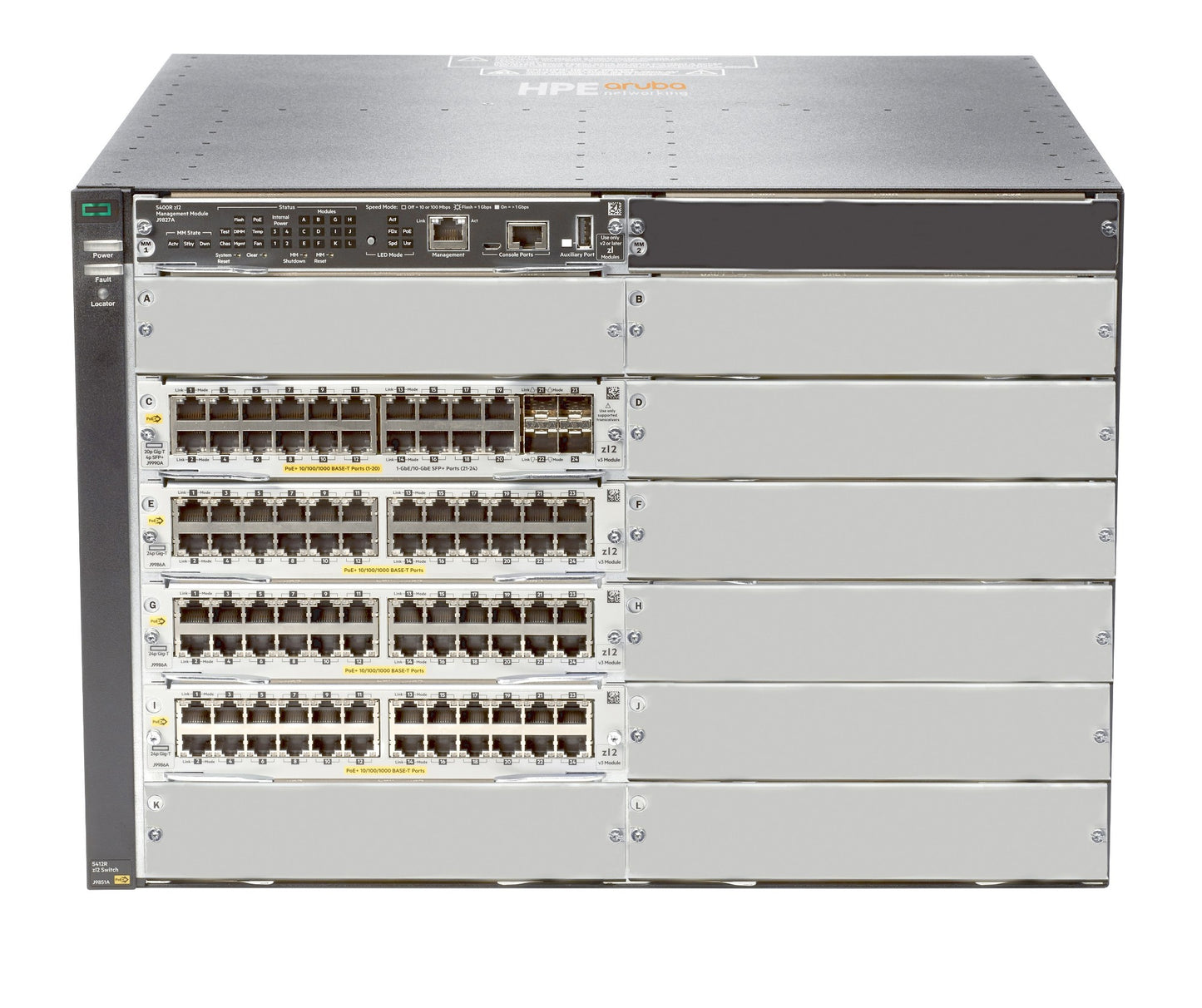

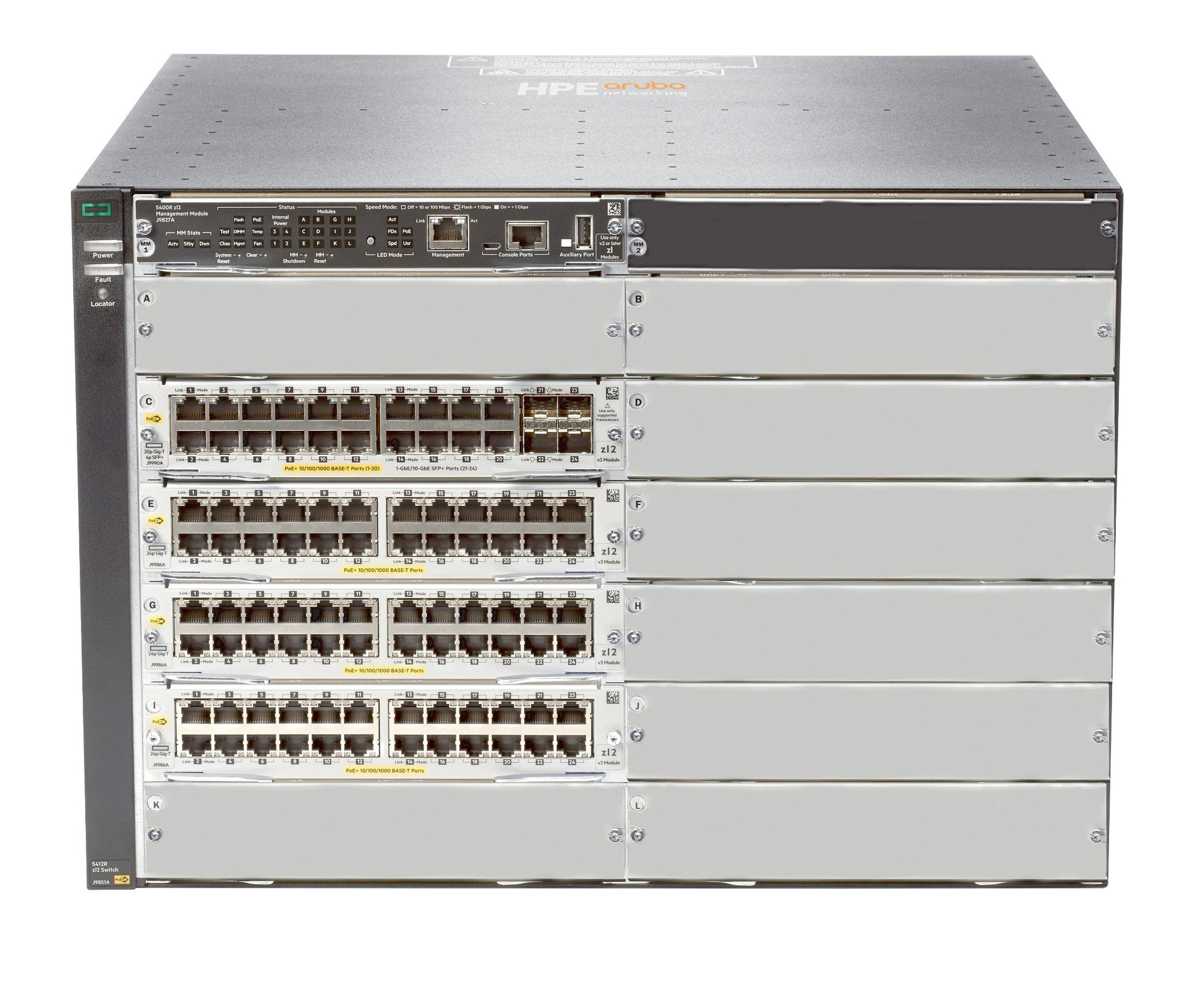

• Aruba JL001A silver cisco switch rack with PoE+ ports and SFP+ uplinks
1 1

Aruba

Aruba JL001A | 5400R 12-Slot 92-Port Gigabit PoE+ Switch, 4x SFP+

JL001A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 5412R 92GT PoE+ is a 12-slot modular Layer 3 chassis switch from the 5400R zl2 series, built for campus access and aggregation. It suits wiring closets that need high-density PoE+ for wireless access points, IP phones and cameras.

This SKU provides 92 x 10/100/1000 RJ-45 PoE+ (802.3at) ports and 4 x SFP+ 1GbE/10GbE ports in a 7U chassis. Switching capacity is 1920 Gbps with throughput up to 1142.8 Mpps, and the switch holds 64,000 MAC address entries. The full Layer 3 feature set, including OSPF, BGP, IPv6 and policy-based routing, is part of the base software with no add-on licence required. This is the no-PSU version: the chassis has 4 power supply slots and needs a minimum of 2 supplies, for example the J9828A 700W PoE+ unit, so the available PoE+ budget depends on the supplies you select.

The chassis accepts Aruba 5400R v3 zl2 modules such as the J9986A 24-port PoE+ and J9991A multi-gigabit PoE+ modules, and a second Management Module J9827A for redundancy. It can be managed with Aruba ClearPass, AirWave and Aruba Central.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 modular switch with VSF stacking and dynamic segmentation
- Full L3 feature set including OSPF, BGP, IPv6 and policy-based routing
- No software licence required for the advanced L2/L3 feature set
- Redundant management modules and hot-swappable power supplies
- Scales to 288 PoE+ ports per chassis with suitable modules
- REST API and OpenFlow support for software-defined networking
- Integrates with Aruba ClearPass Policy Manager, AirWave and Aruba Central
- Low-latency forwarding with line-rate 40GbE module options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: 5412R 92GT PoE+ and 4-port SFP+ (No PSU) v3 zl2 Switch
- Ports: 92 x RJ-45 autosensing 10/100/1000 PoE+ (802.3at)
- Uplink ports: 4 x SFP+ (1GbE/10GbE)
- Module slots: 12 total (4 populated as standard, up to 8 free for user-selected modules)
- Management module: 1 x J9827A included, maximum 2 per chassis
- Management processor: Freescale P2020 dual core 1.2 GHz
- Memory and storage: 4 GB DDR3 SODIMM, 16 MB flash, 1 GB SD card
- Module processor: Dual ARM Cortex A9 1 GHz, 13.5 MB packet buffer
- Fan tray: 1 x J9832A
- Switching capacity: 1920 Gbps
- Switch fabric speed: 2030 Gbps
- Throughput: up to 1142.8 Mpps
- Latency: under 2.8 µs (1G), under 1.8 µs (10G), under 1.5 µs (40G)
- MAC address table: 64,000 entries
- Routing table: 10,000 IPv4 / 5,000 IPv6 entries
- Power supply slots: 4 (minimum 2 required)
- Idle power: 312 W
- Max heat dissipation: 4900 BTU/hr (non-PoE), 7400 BTU/hr (with PoE)
- Frequency: 50/60 Hz
- Dimensions (H x W x D): 307.3 x 444.5 x 450.9 mm (7U)
- Weight: 20.5 kg
- Mounting: 19-inch EIA telco rack

FAQs

Q: Does this switch need a software licence?
A: No. The full Layer 3 feature set, including OSPF, BGP, IPv6 and policy-based routing, is included in the base software with no add-on licence required.

Q: What power supplies does the JL001A need?
A: This is the no-PSU version. The chassis has 4 power supply slots and requires a minimum of 2 supplies, for example the Aruba 5400R 700W PoE+ zl2 Power Supply (J9828A). The total PoE+ budget depends on the supplies you choose.

Q: Which modules can I add to the free slots?
A: It accepts Aruba 5400R v3 zl2 modules such as the J9986A 24-port PoE+, the J9991A 20-port PoE+ with 4 multi-gigabit PoE+ ports, and the J9992A 20-port PoE+ with a 40GbE QSFP+ port.

Q: Can I add a second management module?
A: Yes. One Management Module J9827A is included and the chassis supports a maximum of two for redundancy.

Q: How does the JL001A differ from other 5412R variants?
A: This SKU is the 12-slot 5412R chassis with 92 Gigabit PoE+ ports and 4 SFP+ ports, supplied without power supplies.
