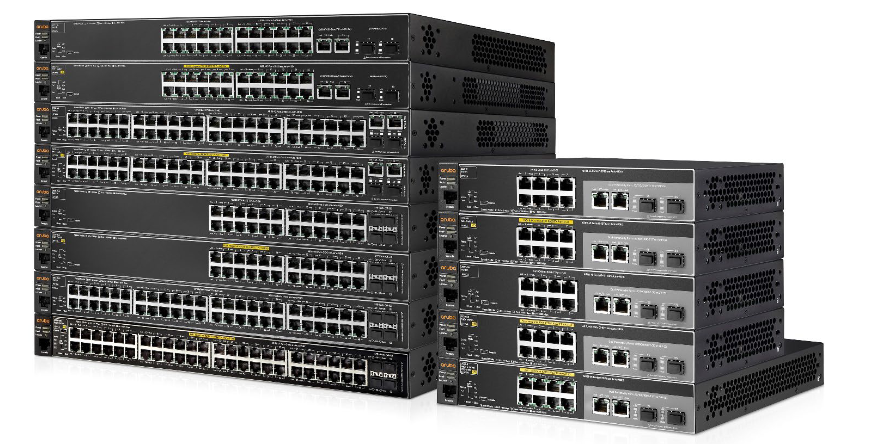

• Aruba J9856A switch with 24x1G ports, 2x10G SFP+ uplinks, black and silver
1 1

Aruba

Aruba J9856A | 2530 24-Port Gigabit Switch, 2x 10G SFP+

J9856A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 2530-24G-2SFP+ is a fixed-configuration Layer 2 managed access switch from the Aruba 2530 Series. It suits enterprise campus and SMB networks that need Gigabit desktop connectivity at the access layer with 10G uplinks back to the aggregation or core layer.

The switch provides 24 autosensing 10/100/1000 RJ-45 ports and 2 fixed SFP+ ports that run at 1G or 10G. It is a non-PoE model, so it does not power attached devices, and it uses a fixed internal AC power supply rated 100-127 / 200-240 VAC at 50/60 Hz. Switching performance is 65.4 Mpps with 64-byte packets, and the 1U chassis mounts in a standard rack. A dual-personality console port accepts either RJ-45 or USB micro-B. For PoE, the sibling model is J9854A (2530-24G-PoE+-2SFP+).

No separate software licence is required, as the switch ships with its base Layer 2 feature set. The SFP+ uplinks accept Aruba/HPE SFP+ transceivers, for example the HPE X132 10G SFP+ LC SR Transceiver (J9150A).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 2 managed access switch for enterprise campus and SMB networks
- Per-port ingress rate limiting
- Auto-MDIX on RJ-45 ports
- 10G SFP+ uplinks that also accept 1G SFP optics
- Dual-personality RJ-45/USB micro-B console port
- Fixed internal AC power supply with wide-range input

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x RJ-45 autosensing 10/100/1000
- Uplinks: 2 x fixed SFP+ 1000/10000
- PoE: Not supported
- Switching layer: Layer 2 managed
- Console port: 1 x dual-personality (RJ-45 or USB micro-B) serial
- Throughput: 65.4 Mpps (64-byte packets)
- Processor: ARM9E, 800 MHz
- Duplex: 10BASE-T/100BASE-TX half or full; 1000BASE-T full only
- Power supply: Fixed internal AC, 100-127 / 200-240 VAC, 50/60 Hz
- Form factor: 1U rack-mountable
- Dimensions (H x W x D): 4.45 x 44.30 x 25.40 cm
- Weight: 2.81 kg

FAQs

Q: Does the J9856A need a software licence?
A: No. No separate software licence is required. The switch ships with its base Layer 2 feature set.

Q: Does this switch provide PoE?
A: No. The J9856A is a non-PoE model with a fixed internal AC power supply. For PoE, the sibling model is J9854A (2530-24G-PoE+-2SFP+).

Q: Which optics work in the SFP+ uplinks?
A: The SFP+ ports accept Aruba/HPE SFP+ transceivers, for example the HPE X132 10G SFP+ LC SR Transceiver (J9150A). They also accept 1G SFP optics.

Q: How does this model differ from the PoE version?
A: The J9856A has 24 Gigabit ports with no PoE, while the J9854A is the PoE+ variant of the 2530-24G-2SFP+.

Q: What power input does it use?
A: It has a fixed internal AC power supply accepting 100-127 / 200-240 VAC at 50/60 Hz.
