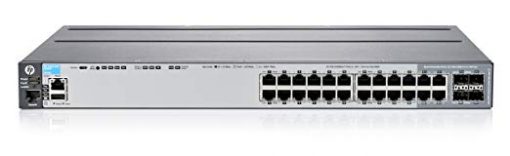

Aruba J9726A | 2920 24-Port Gigabit Switch, 4x SFP, No PSU

J9726A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 2920 24G is a 1U managed Layer 3 gigabit access switch built for enterprise edge, SMB and branch office networks that need static routing, stacking and 10GbE uplink options. It is a non-PoE model supplied as a switch only, with no power supply.

It provides 20 autosensing 10/100/1000 RJ-45 ports plus 4 dual-personality 10/100/1000 RJ-45 or SFP ports, giving a total of 24 gigabit ports. Two module slots accept optional 10GbE uplink modules, and a dedicated stacking module slot supports stacks of up to 4 units. Switching capacity is 128 Gbps with throughput of up to 95.2 Mpps, a 16,000-entry MAC address table and 11.25 MB of packet buffer. The maximum power rating is 58 W and an optional redundant power supply slot is provided.

The basic Layer 3 feature set covers static routing and RIP under a perpetual software licence with no subscription required. The switch can be managed through a web browser, SNMP or CLI, and works with Aruba ClearPass, AirWave and Aruba Central.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Basic Layer 3 features including static routing and RIP
- Modular stacking through a dedicated stacking module slot
- SDN-optimised with OpenFlow support
- Access control lists, sFlow and QoS
- IPv6 host support
- Managed through Aruba ClearPass, AirWave and Aruba Central
- Redundant power supply slot for added resilience

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Fixed ports: 20 x RJ-45 autosensing 10/100/1000
- Dual-personality ports: 4 x 10/100/1000 RJ-45 or SFP
- Module slots: 2 (optional 10GbE uplink modules)
- Stacking module slot: 1 (up to 4 units)
- PoE: Non-PoE model
- Management ports: 1 dual-personality console (RJ-45 or USB micro-B), 1 USB 1.1, 1 RJ-45 out-of-band management port
- Processor and memory: Tri-Core ARM1176 625 MHz, 512 MB SDRAM
- Flash: 1 GB
- Packet buffer: 11.25 MB (6.75 MB dynamic egress and 4.5 MB ingress)
- Switching capacity: 128 Gbps
- Throughput: up to 95.2 Mpps
- MAC address table: 16,000 entries
- Dimensions (H x W x D): 4.45 x 44.25 x 33.6 cm
- Weight: 5.25 kg
- Frequency: 50/60 Hz
- Maximum power rating: 58 W
- Maximum heat dissipation: 198 BTU/hr
- Operating temperature: 0 to 55 C
- Operating relative humidity: 15% to 95%, non-condensing
- Surge immunity: IEC 61000-4-5
- Form factor: 1U rack-mountable

FAQs

Q: Does this switch need a software licence or subscription?
A: No subscription is required. The switch uses a perpetual software licence covering the basic Layer 3 feature set of static routing and RIP.

Q: Does this switch support PoE?
A: No. The J9726A is a non-PoE model, so it does not power devices such as access points or IP phones over the ports.

Q: How does the J9726A differ from other 2920 24-port models?
A: This is the 24-port non-PoE variant supplied without a power supply, so a compatible power supply is needed to operate it.

Q: Can I add 10GbE uplinks or stack multiple switches?
A: Yes. The two module slots accept optional 10GbE uplink modules, and the stacking module slot allows up to 4 units to be stacked.

Q: Can I use SFP transceivers on this switch?
A: Yes. The 4 dual-personality ports can each operate as 10/100/1000 RJ-45 or as SFP, giving up to 4 gigabit SFP uplinks.
