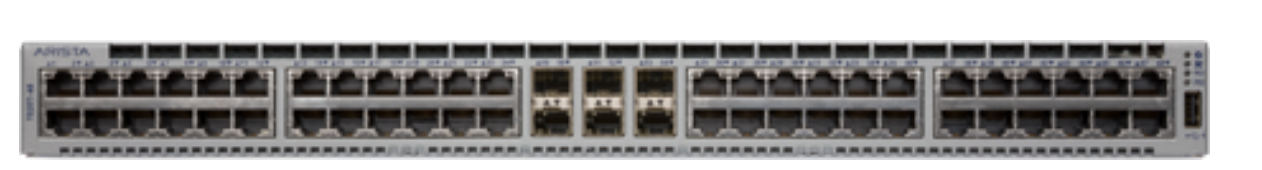

• Gray metal arista dcs-7020tr-48-f 48-port gigabit switch with 6x 10g sfp+ ports and sleek industrial design
1 1

Arista

Arista DCS-7020TR-48-R | 7020R 48-Port Gigabit Switch, 6x 10G SFP+, Rear-to-Front

DCS-7020TR-48-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7020R is a 1RU data centre switch built for server-edge 1GbE leaf roles in leaf-spine designs, as well as high-performance storage networks and 1G/10G cloud, virtualised and media deployments. This model runs Arista EOS and features a deep 3GB packet buffer with Virtual Output Queues per port to avoid head-of-line blocking.

It provides 48 x 100/1000Mb RJ-45 ports and 6 x 1/10GbE SFP+ uplinks, with 216 Gbps of throughput and 162 Mpps forwarding. The 48x RJ45, 6x SFP+, 2x AC configuration uses rear-to-front (reverse) airflow, with four hot-swappable N+1 fans and two hot-swap 1+1 redundant AC power supplies. Typical draw is 105 W and maximum draw is 115 W.

The SFP+ ports accept 10GBASE-CR DAC cables, AOC, and SR, LR, ER, ZR and DWDM optics, as well as 1GbE SX/LX and 100/1000BASE-T SFPs. EOS 4.18.3 or later is required, and the switch can be managed with CloudVision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Non-blocking wire-speed Layer 2 and Layer 3 forwarding
- Deep 3GB shared packet buffer with Virtual Output Queues per port to eliminate head-of-line blocking
- Hot-swappable 1+1 power supplies and N+1 fans, over 90% efficient (PWR-500AC is 93% Platinum)
- Arista EOS single binary image with Linux shell access, eAPI, Python, Ansible, Puppet and Chef support
- Zero Touch Provisioning, LANZ microburst detection, advanced mirroring and TAP aggregation, Accelerated sFlow
- VXLAN bridging and routing, MLAG and 128-way ECMP
- CloudVision management support
- Tool-less rails with 2-post and 4-post mounting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 100/1000Mb RJ-45, 6 x 1/10GbE SFP+
- Throughput: 216 Gbps
- Forwarding rate: 162 Mpps
- Latency: from 3.8 microseconds
- CPU: Quad-core x86
- System memory: 8GB
- Flash storage: 4GB
- Packet buffer: 3GB
- Management port: 1 x 100/1000Mb
- Serial console: 1 x RS-232 (RJ-45)
- USB ports: 2
- Power supplies: 2 x hot-swap AC (1+1 redundant), PWR-500AC
- Fans: 4 x hot-swappable (N+1 redundant), FAN-7000-F/R
- Airflow: Rear-to-front
- Typical power draw: 105 W
- Maximum power draw: 115 W
- MAC addresses: 256K
- IPv4 unicast routes: 200K
- IPv6 unicast routes: 200K
- ECMP: 128-way
- Ingress/egress ACLs: 12K each
- Minimum EOS: 4.18.3
- Dimensions (WxHxD): 43.9 x 4.34 x 40.1 cm
- Weight: 7.71 kg
- Operating temperature: 0 to 40 C

FAQs

Q: Does this switch need a licence to run?
A: It runs Arista EOS, and the default image provides a broad Layer 2 feature set with monitoring, provisioning, security, QoS and management. Optional EOS licences add features such as Enhanced L3 (OSPF, BGP, ISIS, PIM) with LIC-FIX-G-E, and FLX-Lite or FLX routing scale with EVPN and VXLAN.

Q: What power supplies does it use?
A: It uses two hot-swap PWR-500AC supplies in a 1+1 redundant arrangement, rated 100-240 VAC, 50/60 Hz with an IEC C13 inlet. Typical draw is 105 W and maximum is 115 W.

Q: Which optics and cables work in the SFP+ ports?
A: The 6 SFP+ ports accept 10GBASE-CR DAC (0.5-5m), AOC (3-30m), and SRL, SR, LRL, LR, ER, ZR and DWDM optics. They also take 1GbE SX/LX and 100/1000BASE-T SFPs.

Q: What does rear-to-front airflow mean for this SKU?
A: The fans (FAN-7000-F/R) draw cool air in from the rear port side and exhaust at the front. This suits racks where the switch ports face the hot aisle.

Q: What EOS version does it need?
A: It requires Arista EOS 4.18.3 or later. It can also be managed through CloudVision.
