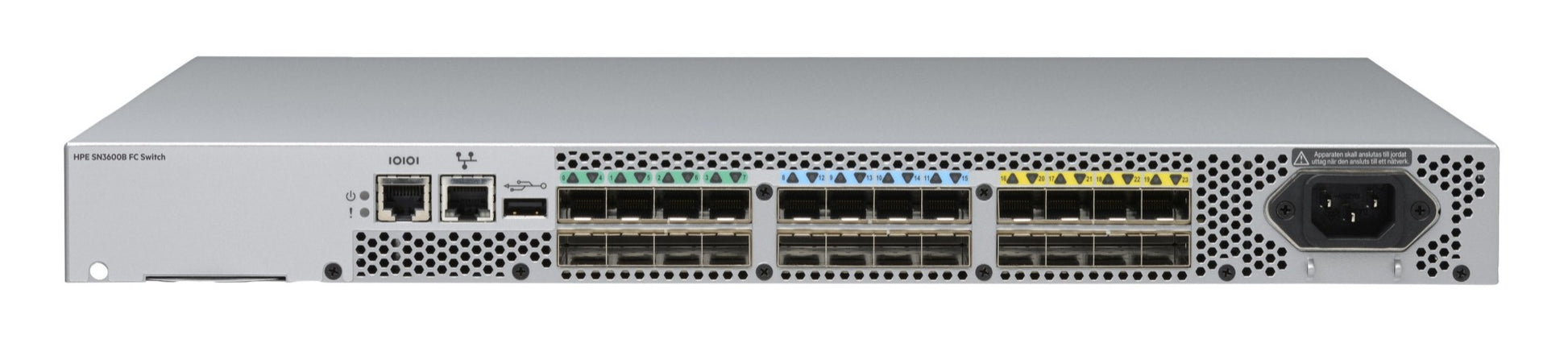

• Aruba R4G55B Fibre Channel switch with 24x 32G FC ports
1 1

Aruba

Aruba R4G55B | StoreFabric SN3600B 24/8 Fibre Channel Switch, 8x 16G

R4G55B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The StoreFabric SN3600B is a 1U Gen6 Fibre Channel SAN switch from the HPE B-series range, built on Brocade technology. This 24/8 model suits entry-level and mid-sized SAN fabrics, virtualisation, cloud and flash-based storage environments that need a dense switch with room to grow.

The switch has 24 Fibre Channel ports in total, with 8 ports active and 16 more available through Ports-on-Demand licence upgrades, applied with hot code load and no downtime. It supports both 16Gb and 32Gb Fibre Channel SFP+ transceivers and delivers up to 768 Gbps of aggregate bandwidth with 900 ns port-to-port latency. Management is covered by SNMP, SMI-S, SSH, HTTPS and LDAP, with Role-Based Access Control and Trusted Switch security.

It works with 16Gb and 32Gb Fibre Channel SFP+ optics and is interoperable with Brocade-based fabrics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Gen6 32Gb Fibre Channel in a dense 1U format
- Ports-on-Demand scaling from 8 to 24 ports with no downtime
- Accepts both 16Gb and 32Gb Fibre Channel SFP+ transceivers
- Role-Based Access Control and Trusted Switch security
- Broad management support including SNMP, SMI-S, SSH, HTTPS and LDAP
- Suited to virtualisation, cloud and flash-based SAN growth

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Device type: Managed Fibre Channel switch, 24 ports
- Configuration: 24/8, 8 ports active
- Active ports: 8 x 16Gb Fibre Channel SFP+
- Ports on Demand: 16 additional ports via licence upgrade
- Port speed: 32 Gbps Fibre Channel, supports 32Gb and 16Gb transceivers
- Aggregate switch bandwidth: 768 Gbps maximum
- Port-to-port latency: 900 ns
- Maximum frame size: 2112
- Frame buffers: 2000
- Remote management: SNMP 1, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SFTP, LDAP
- Security: RBAC, Trusted Switch, Secure RPC, Secure Copy (SCP), IP address filtering
- Syslog and IPv6 support: Yes
- Encryption capability: No
- Power input: AC 90-264 V, 50/60 Hz
- Enclosure: Rack-mountable, 1U
- Dimensions (W x D x H): approx. 429 x 307 x 43 mm
- Weight: approx. 5.8 kg

FAQs

Q: How do I enable the remaining ports?
A: This 24/8 model has 8 ports active. The other 16 ports are enabled with the optional HPE 8-port E-LTU/LTU Ports-on-Demand upgrade, applied through hot code load with no downtime.

Q: Which transceivers does it accept?
A: It accepts 16Gb and 32Gb Fibre Channel SFP+ transceivers.

Q: What power input does it need?
A: It runs from an AC supply of 90-264 V at 50/60 Hz.

Q: How does this SKU differ from other SN3600B models?
A: This is the 24/8 configuration, with 8 ports active out of 24 and 8 x 16Gb short-wave SFP+ transceivers included in its configuration. Other SN3600B models differ in active port count and optics.

Q: Does it support encryption?
A: No, encryption capability is not offered on this switch. It does provide Role-Based Access Control, Trusted Switch and Secure Copy for management security.
