Blue Cable Co

Upgrade your high-speed network with the OM4 Fibre Optic Breakout Cable from Blue Cable Co®. Designed for efficient and high-density connectivity, this MPO Female to 4 x LC multimode breakout cable is ideal for linking backbone MPO infrastructure to LC-based equipment.

Key Features:

• RCM Compliant & AS/CA S008:2020 Certified: Meets strict Australian standards for safe and reliable networking performance.
• Eco-Friendly Packaging: Packaged in recyclable cardboard, a sustainable alternative to single-use plastic bags used by other suppliers.
• High-Performance OM4 Fibre: Ensures low-loss transmission for 40G and 100G applications while maintaining full compatibility with OM3, OM2, and OM1 networks.
• MPO to LC Breakout: Converts 12-Fibre MPO connections into four duplex LC links, simplifying integration with LC-based transceivers and switches.
• Optimised for Transceivers: Designed for seamless compatibility with our transceivers, ensuring top-tier performance.
• Durable LSZH Pink Jacket: Low-smoke, zero-halogen (LSZH) construction for enhanced safety in data centers and confined spaces.

Available in lengths from 0.5m to 10m, this OM4 MPO to LC breakout cable is the perfect solution for high-speed networking in data centers, enterprise environments, and telecommunications infrastructure.

Choose Blue Cable Co® for industry-leading quality, compliance, and sustainability.

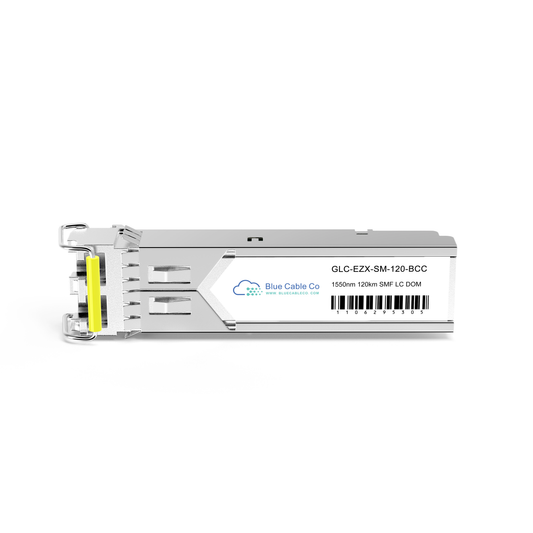

The GLC-EZX-SM-120-BCC is a Cisco compatible 1GB single-mode SFP transceiver rated for links up to 120km over 9/125µm SMF fibre. Fitted with a 1550nm DFB laser transmitter and APD receiver, it delivers a 32dB link budget suitable for metro and access network applications. The module is plug-and-play, hot-pluggable, and ships with DDM support for real-time monitoring of optical parameters. Every unit is tested in Blue Cable Co's state of the art lab in Sydney to ensure compatibility with Cisco platforms.

• Cisco compatible drop-in replacement for GLC-EZX-SM-120 applications
• 1.25Gb/s data rate over single-mode fibre, up to 120km reach
• 1550nm DFB laser transmitter with APD receiver and 32dB link budget
• Hot-pluggable SFP form factor with duplex LC connector
• DDM/DOM support compliant with SFF-8472 for live monitoring of temperature, voltage, bias current, and optical power
• Available in commercial (0 to 70°C), extended (-5 to 85°C), and industrial (-40 to 85°C) temperature variants
• RoHS compliant and lead free
• 5-year advanced hardware replacement warranty backed by Blue Cable Co

Blue Cable Co 100GbE QSFP28 active optical cables (AOC) deliver reliable 100Gb/s connectivity between QSFP28 ports over multi-mode fibre, compatible with NVIDIA Mellanox platforms. VCSEL-based optics are integrated directly into the QSFP28 connectors at each end, enabling reaches well beyond passive copper DAC cables while remaining hot-pluggable and plug-and-play. Available in lengths from 3m to 30m, all variants feature an LSZH jacket for data centre fire safety compliance and support selectable per-lane retiming for signal integrity over longer runs.

• Plug-and-play active optical cable — no separate transceivers required
• 100GbE QSFP28 to QSFP28 AOC, NVIDIA Mellanox compatible
• Available in 3m, 5m, 10m, 20m, and 30m lengths — select your variant above
• VCSEL-based optics integrated into QSFP28 connectors at both ends
• 100Gb/s aggregate via 4x25Gb/s NRZ lanes over multi-mode fibre
• Selectable per-lane retiming for both Tx and Rx — optimised for signal integrity at 25Gb/s
• LSZH (Low Smoke Zero Halogen) jacket for data centre fire safety compliance
• Hot-pluggable for live insertion without system downtime
• BER better than 1E-15
• Operating case temperature range: 0°C to +70°C
• Power dissipation: 2.2W typical / 2.5W maximum per end (with retiming)
• RoHS compliant

Blue Cable Co 40GbE QSFP+ active optical cables (AOC) deliver reliable 40Gb/s connectivity between QSFP+ ports over multi-mode fibre, compatible with NVIDIA Mellanox platforms. Unlike passive DAC cables, AOCs integrate VCSEL-based optical transceivers directly into the QSFP+ connectors at each end, enabling much longer reaches than copper while remaining hot-pluggable and plug-and-play. Available in lengths from 3m to 30m, these cables are plenum rated (OFNP) and suited to data centre deployments where reach, cable management, or fire rating requirements rule out passive copper.

• Plug-and-play active optical cable — no separate transceivers required
• 40GbE QSFP+ to QSFP+ AOC, NVIDIA Mellanox compatible
• Available in 3m, 5m, 10m, 15m, 20m, and 30m lengths — select your variant above
• VCSEL-based optics integrated into QSFP+ connectors at both ends
• 40Gb/s aggregate over four multi-mode fibre lanes at up to 10.3125Gb/s per lane
• IEEE 802.3ba 40GbE compliant
• Plenum rated (OFNP) — suitable for in-ceiling and raised-floor data centre environments
• Hot-pluggable for live insertion without system downtime
• BER better than 1E-15
• Operating case temperature range: 0°C to +70°C
• Power consumption: 0.8W typical, 1W maximum
• RoHS compliant and Class 1 laser safe

The MAM1Q00A-QSA28-BCC is a Blue Cable Co QSFP28 to SFP28 adapter, compatible with NVIDIA Mellanox platforms. It enables an SFP28, SFP+, or SFP transceiver to be installed directly into a QSFP28 port, providing a cost-effective solution for connecting 25GbE, 10GbE, or 1GbE SFP-form-factor equipment to switches and NICs with QSFP28 ports. The adapter uses lane 1 of the QSFP28 connector and is plug-and-play with all major SFP28 transceivers, AOC, and DAC cables. Backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP28 to SFP28 adapter — accepts SFP28, SFP+, or SFP transceivers, AOC, and DAC cables
• Enables 25GbE SFP28, 10GbE SFP+, or 1GbE SFP connectivity on QSFP28 ports of Mellanox switches and NICs
• Uses lane 1 of the QSFP28 connector — single lane, not a 4x25G breakout
• SFF-8636 compliant I2C management interface — passes SFP transceiver identity to the host
• Built-in EEPROM for product identification
• Low insertion loss with matched impedance design
• Secure latching mechanism for reliable retention in the QSFP28 cage
• Compliant with QSFP28 MSA SFF-8665 and SFP28 MSA SFF-8402
• Operating case temperature range: 0°C to +70°C
• Maximum power consumption: 0.1W
• RoHS compliant

The MAM1Q00A-QSA-BCC is a Blue Cable Co QSFP+ to SFP+ adapter, compatible with NVIDIA Mellanox platforms. It enables an SFP+ or SFP transceiver to be installed directly into a QSFP+ port, providing a cost-effective solution for connecting 10GbE SFP+ or 1GbE SFP equipment to switches and NICs with QSFP+ ports. The adapter uses lane 1 of the QSFP+ connector and is plug-and-play with all major SFP+ transceivers, AOC, and DAC cables. Backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP+ to SFP+ adapter — accepts any SFP+ or SFP transceiver, AOC, or DAC
• Enables 10GbE SFP+ or 1GbE SFP connectivity on QSFP+ ports of Mellanox switches and NICs
• Uses lane 1 of the QSFP+ connector — single lane, not a 4x10G breakout
• SFF-8636 compliant I2C management interface — passes through SFP transceiver identity to the host
• Low insertion loss with matched impedance design
• Secure latching mechanism for reliable retention in the QSFP+ cage
• Compliant with QSFP+ MSA SFF-8436 and SFP+ MSA SFF-8418/8419
• Operating case temperature range: 0°C to +70°C
• Maximum power consumption: 0.1W
• RoHS compliant

Blue Cable Co 100GbE QSFP28 passive direct attach copper (DAC) cables are a power-efficient, plug-and-play alternative to optical fibre for short-reach 100G connections between QSFP28 ports, compatible with NVIDIA Mellanox platforms. Available in lengths from 1m to 5m, cables up to 2m operate as CA-25G-N (no FEC required) for low-latency deployments, while 2.5m to 5m variants are CA-25G-L and require RS-FEC to be enabled on the host. All variants feature an LSZH jacket and halogen-free PCB construction, and are backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play passive DAC — no power supply or configuration required
• 100GbE QSFP28 to QSFP28 passive direct attach copper cable, NVIDIA Mellanox compatible
• Available in 1m, 1.5m, 2m, 2.5m, 3m, and 5m lengths — select your variant above
• 1m, 1.5m, and 2m variants: CA-25G-N compliant — no FEC required, low latency
• 2.5m, 3m, and 5m variants: CA-25G-L compliant — RS-FEC must be enabled on the host
• Four-lane passive copper construction, each lane operating at up to 25Gb/s
• SFF-8665 compliant QSFP28 connectors with SFF-8636 compliant I2C management interface
• LSZH (Low Smoke Zero Halogen) jacket with halogen-free, lead-free PCB
• BER better than 1E-15 with Mellanox systems
• Maximum power consumption: 0.1W
• Operating case temperature range: 0°C to +70°C
• RoHS compliant

Blue Cable Co 40GbE QSFP+ passive direct attach copper (DAC) cables provide a power-efficient, plug-and-play alternative to optical fibre for short-reach 40G connections between QSFP+ ports, compatible with NVIDIA Mellanox platforms. Available in lengths from 1m to 5m, these passive copper cables require no additional power and deliver reliable 40Gb/s Ethernet connectivity across four lanes. Each cable is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility, stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play passive DAC — no power supply or configuration required
• 40GbE QSFP+ to QSFP+ passive direct attach copper cable, NVIDIA Mellanox compatible
• Available in 1m, 2m, 3m, 4m, and 5m lengths — select your variant above
• Four-lane passive copper construction operating at up to 40Gb/s aggregate
• SFF-8685 compliant QSFP+ connectors with SFF-8636 compliant I2C management interface
• BER better than 1E-15
• Maximum power consumption: 0.1W
• Operating case temperature range: 0°C to +70°C
• RoHS compliant
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

Blue Cable Co 25GbE SFP28 passive direct attach copper (DAC) cables are a power-efficient, plug-and-play alternative to optical fibre for short-reach 25G connections between SFP28 ports, compatible with NVIDIA Mellanox platforms. Available in lengths from 1m to 5m, cables up to 2m operate as CA-25G-N (no FEC required) for low-latency deployments, while 2.5m to 5m variants are CA-25G-L and require RS-FEC to be enabled on the host. All variants feature an LSZH jacket and are tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play passive SFP28 DAC — no power supply or configuration required
• 25GbE SFP28 to SFP28 passive direct attach copper cable, NVIDIA Mellanox compatible
• Available in 1m, 1.5m, 2m, 2.5m, 3m, 4m, and 5m lengths — select your variant above
• 1m, 1.5m, and 2m variants: CA-25G-N compliant — no FEC required, low latency
• 2.5m, 3m, 4m, and 5m variants: CA-25G-L compliant — RS-FEC must be enabled on the host
• SFF-8402 compliant SFP28 connectors with SFF-8636 compliant I2C management interface
• LSZH (Low Smoke Zero Halogen) jacket — suitable for data centre environments
• BER better than 1E-15 with Mellanox systems
• Maximum power consumption: 0.1W per end
• Operating case temperature range: 0°C to +70°C
• RoHS-6 compliant, halogen-free PCB
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

Blue Cable Co 10GbE SFP+ passive direct attach copper (DAC) cables provide a power-efficient, plug-and-play alternative to optical fibre for short-reach 10G connections between SFP+ ports. Compatible with NVIDIA Mellanox platforms, these passive copper cables require no additional power and deliver 10Gb/s connectivity with ultra-low crosstalk and low insertion loss. Available in lengths from 1m to 5m, each cable is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play passive DAC — no power supply or configuration required
• 10Gb/s SFP+ to SFP+ direct attach copper cable, NVIDIA Mellanox compatible
• Available in 1m, 1.5m, 2m, 3m, and 5m lengths — select your variant above
• Passive copper construction — no active components, lower power draw than optical alternatives
• Ultra-low crosstalk and low insertion loss for reliable 10GbE signal integrity
• Compliant with SFF-8418 and SFF-8419 specifications
• BER better than 1E-15
• Operating case temperature range: 0°C to +70°C
• RoHS-6 compliant
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MMS1V70-CM-BCC is a Blue Cable Co 100GbE DR1 single-mode QSFP28 optical transceiver, compatible with NVIDIA Mellanox platforms. Using PAM4 modulation on a single 1310nm optical lane via a duplex LC connector, it supports reaches of 2m to 500m on single-mode fibre. Its primary application is bridging legacy 100GbE NRZ systems to emerging 400GbE PAM4 infrastructure — four MMS1V70-CM-BCC modules can connect to a single 400GbE QSFP-DD DR4 transceiver over a single-mode splitter cable. This plug-and-play module is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility, stocked and shipped from Sydney, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP28 form factor — no additional configuration required
• 100Gb/s DR1 single-lane PAM4 optical interface at 1310nm nominal wavelength
• Converts 4x25Gb/s NRZ electrical input to a single 100Gb/s PAM4 optical signal
• Single-mode fibre with duplex LC connector — no MPO cabling required
• Operating reach: 2m to 500m on single-mode fibre (per datasheet, depends on fibre and link conditions)
• Designed to bridge 100GbE NRZ and 400GbE PAM4 infrastructure
• Four units connect to a single 400GbE QSFP-DD DR4 transceiver via single-mode splitter cable
• SFF-8636 compliant digital diagnostic monitoring (DDM) via I2C management interface
• Hot-pluggable QSFP28 form factor for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Maximum power dissipation: 4W
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MMA1L10-CR-BCC is a Blue Cable Co 100GbE 100GBASE-LR4 single-mode QSFP28 optical transceiver, compatible with NVIDIA Mellanox platforms. Using four LAN-WDM DFB laser channels multiplexed over a duplex LC/UPC connector on G.652 single-mode fibre, it supports link lengths of up to 10km — making it well suited to inter-building and campus-scale 100G deployments. Per-lane digital diagnostic monitoring (DDM) is included for both transmit and receive paths. This plug-and-play module is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility, stocked and shipped from Sydney, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP28 form factor — no additional configuration required
• IEEE 802.3ba 100GBASE-LR4 compliant, 100Gb/s via 4x25.78Gb/s LAN-WDM channels
• Four DFB laser transmitters across LAN-WDM wavelengths (1294–1310nm range) multiplexed over duplex LC/UPC connector
• Single-mode fibre (G.652 compliant) — standard duplex LC infrastructure, no MPO cabling required
• Maximum link length of 10km (per datasheet, depends on fibre and link conditions)
• Per-lane DDM covering Rx/Tx optical power, Tx bias current, supply voltage, and case temperature
• Selectable retiming for both Tx and Rx; CDR enabled by default for 100G operation
• Hot-pluggable QSFP28 MSA form factor for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Maximum power consumption: 3.5W
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MMA1B00-C100D-BCC is a Blue Cable Co 100GbE 100GBASE-SR4 multi-mode QSFP28 optical transceiver, compatible with NVIDIA Mellanox platforms. Operating at 850nm across four parallel channels via an MPO connector, it supports up to 100m on OM4 fibre and up to 70m on OM3 fibre at 100Gb/s. The module also supports 40GBASE-SR4 operation, offering dual-rate flexibility in mixed-speed environments. This plug-and-play module includes SFF-8636 compliant digital diagnostic monitoring (DDM) and is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP28 form factor — no additional configuration required
• IEEE 802.3 100GBASE-SR4 compliant, 100Gb/s via 4x25.78125GBd parallel channels
• Also supports IEEE 802.3 40GBASE-SR4 operation for dual-rate flexibility
• 850nm VCSEL transmitter over parallel multi-mode fibre with MPO connector
• Up to 100m on OM4 MMF; up to 70m on OM3 MMF at 100Gb/s (per datasheet, depends on fibre and link conditions)
• Up to 100m on OM3 MMF at 40Gb/s (per datasheet, depends on fibre and link conditions)
• SFF-8636 compliant DDM — covers supply voltage, temperature, Tx/Rx optical power, and laser bias
• Selectable retiming for both Tx and Rx directions
• Hot-pluggable QSFP28 design for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Power dissipation: 2.2W typical / 2.5W maximum (with retiming)
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MC2210511-LR4-BCC is a Blue Cable Co 40GbE 40GBASE-LR4 single-mode QSFP+ optical transceiver, compatible with NVIDIA Mellanox platforms. Using four CWDM DFB laser channels multiplexed over a duplex LC connection at 1310nm, it supports link lengths of up to 10km on single-mode fibre — making it a strong fit for inter-building and campus-scale 40G deployments. This plug-and-play module includes digital diagnostic monitoring (DDM) and is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP+ form factor — no additional configuration required
• IEEE 802.3ba 40GBASE-LR4 compliant, up to 40Gb/s over four CWDM channels
• 1310nm CWDM DFB laser transmitters with high-sensitivity PIN receivers
• Single-mode fibre with duplex LC connector — no MPO cabling required
• Maximum link length of 10km (per datasheet, depends on fibre and link conditions)
• Digital diagnostic monitoring (DDM) via SFF-8636 compliant I2C management interface
• Hot-pluggable QSFP+ design for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Power consumption: 2.8W typical (up to 3.5W depending on variant supplied)
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MMA1B00-B150D-BCC is a Blue Cable Co 40GbE 40GBASE-SR4 multi-mode QSFP+ optical transceiver, compatible with NVIDIA Mellanox platforms. Operating at 850nm across four parallel channels via an MPO connector, it supports up to 150m on OM4 fibre and up to 100m on OM3 fibre at 40Gb/s. This plug-and-play module includes digital diagnostic monitoring (DDM) covering temperature, voltage, and optical power levels, and is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP+ form factor — no additional configuration required
• IEEE 802.3 40GBASE-SR4 compliant, 40Gb/s via 4x10.3125Gb/s parallel channels
• 850nm VCSEL transmitter over parallel multi-mode fibre with MPO connector
• Up to 150m on OM4 MMF; up to 100m on OM3 MMF (per datasheet, depends on fibre and link conditions)
• Digital diagnostic monitoring (DDM) — covers supply voltage, temperature, Tx/Rx optical power, and VCSEL bias
• Hot-pluggable QSFP+ design for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Power dissipation: 1.3W typical, 1.5W maximum
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MMA2L20-AR-BCC is a Blue Cable Co 25GbE 25GBASE-LR single-mode SFP28 optical transceiver, compatible with NVIDIA Mellanox platforms. Operating at 1310nm with a DFB transmitter and duplex LC connector, it supports link distances of up to 10km over ITU-T G.652.D rated single-mode fibre — making it well suited to inter-building and campus-scale 25G deployments. This plug-and-play module includes SFF-8472 compliant digital diagnostic monitoring (DDM) and is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Every unit is backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play SFP28 form factor — no additional configuration required
• IEEE 802.3cc 25GBASE-LR compliant, 25.78125 Gb/s data rate
• 1310nm DFB transmitter with high-sensitivity PIN receiver
• Single-mode fibre with duplex LC connector
• Up to 10km reach over ITU-T G.652.D rated SMF (per datasheet, depends on fibre and link conditions)
• SFF-8472 compliant digital diagnostic monitoring (DDM) for real-time performance visibility
• Hot-pluggable SFP28 MSA form factor for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Maximum power consumption: 1.0W
• RoHS compliant
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty
