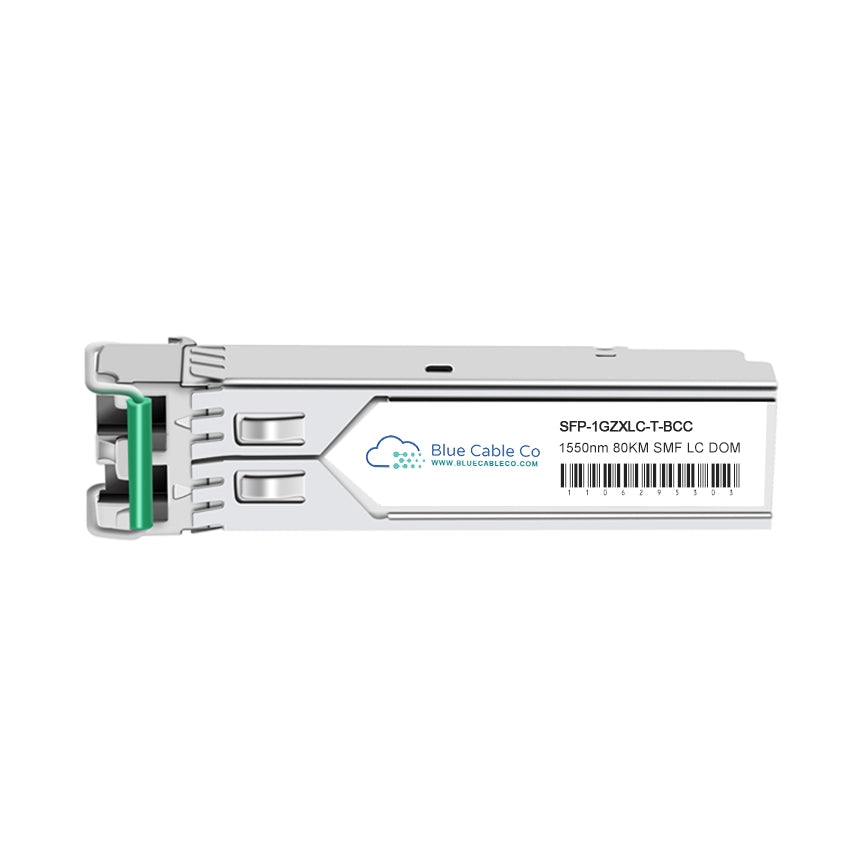

SFP-1GZXLC-T-BCC | Moxa Compatible 1GB Single-Mode ZR - 70km (1000BASE-ZX)

SFP-1GZXLC-T-BCC

8 in stock

$124.30 inc. GST
$113.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-1GZXLC-T-BCC is a drop-in compatible replacement for the Moxa SFP-1GZXLC-T. This industrial-grade transceiver operates across a -40 to 85°C temperature range and offers plug-and-play compatibility with Moxa Ethernet switches and industrial networking platforms requiring gigabit SFP ports. - IEEE 802.3z compliance guarantees interoperability with 1000BASE-ZX Gigabit Ethernet infrastructure - SFP form factor delivers 1Gbps over single-mode fibre at 1550nm wavelength with LC duplex connector, supporting up to 80km reach over OS1/OS2 fibre - Digital diagnostic monitoring (DDM) provides real-time access to optical power, temperature, voltage, and transceiver health parameters - Industrial temperature rating of -40 to 85°C ensures reliable operation in harsh environments including outdoor enclosures, factory floors, and remote substations - Hot-swappable design enables field replacement without powering down the host switch - Class 1 laser product compliant with EN 60825-1 safety standards

Features

• IEEE 802.3z and SFP MSA compliance ensures standards-based interoperability with any gigabit Ethernet switch or router accepting 1000BASE-ZX optics, regardless of vendor
• 1550nm DFB laser transmitter paired with PIN photodiode receiver enables 80km transmission over OS1 or OS2 single-mode fibre with sufficient link budget for typical deployments
• Industrial temperature range (-40 to 85°C) with differential LVPECL signalling allows deployment in uncontrolled environments such as outdoor cabinets, rail wayside equipment, or oil and gas facilities
• DDM capability exposes real-time optical transmit and receive power levels, module temperature, supply voltage, and laser bias current via I2C interface for proactive link health monitoring
• Hot-pluggable LC duplex interface supports live insertion and removal without disrupting adjacent ports or requiring chassis power cycling, reducing maintenance windows
• Low power consumption (typically under 1W) and TTL signal detect output simplify integration into managed switch platforms with per-port diagnostics and power budgeting
• Class 1 laser classification (EN 60825-1) and RoHS compliance meet safety and environmental requirements for commercial and industrial installations

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty item, minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-1GZXLC-T-BCC
Compatible Replacement For: SFP-1GZXLC-T
Compatibility: Moxa compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1Gbps (1000BASE-ZX)
Wavelength: 1550nm
Fibre Type: Single-Mode (SMF)
Connector Type: LC duplex
DOM Support: Yes (Digital Diagnostic Monitoring)
Standards: IEEE 802.3z, SFP MSA
Max Reach: Up to 80km (per datasheet, subject to fibre quality and link loss)
Operating Temperature: -40 to 85°C (Industrial Grade)
Laser Class: Class 1 (EN 60825-1 compliant)

FAQs

Q: Will this work in place of the Moxa SFP-1GZXLC-T?
A: Yes. This transceiver is coded and tested to operate as a direct replacement for the Moxa SFP-1GZXLC-T. It implements the same 1000BASE-ZX specification (1Gbps over single-mode fibre at 1550nm) and presents identical electrical and optical characteristics to the host platform. The module is plug-and-play compatible and will be recognized immediately upon insertion into any Moxa switch or platform that supports the SFP-1GZXLC-T.

Q: What Moxa switches and platforms support this transceiver?
A: This module is compatible with any Moxa Ethernet switch or industrial networking device that accepts standard SFP transceivers and lists gigabit single-mode support. This includes the ICS-G7000 and IM-G7000 interface module series, EDS-G508E/G512E/G516E managed switch families, IKS and EDS modular platforms with SFP slots, and similar Moxa industrial switches. If your platform has a gigabit SFP slot and supports single-mode optics, this transceiver will function correctly.

Q: What fibre type and grade do I need to reach 70 to 80km?
A: You need OS1 or OS2 specification single-mode fibre (9/125 micron core/cladding diameter) with LC duplex connectors. Actual reach depends on total link loss budget: OS1 fibre (1 dB/km attenuation) typically supports 70km; OS2 fibre (0.4 dB/km attenuation) can reach 80km or more. Factor in connector insertion loss (0.3 to 0.5 dB per mating pair) and splice loss if present. The 1550nm wavelength used by this transceiver experiences lower attenuation than 1310nm, enabling the extended reach.

Q: Can I access DDM data from this transceiver, and what parameters are available?
A: Yes. This module implements SFF-8472 digital diagnostic monitoring. You can read real-time optical transmit power, optical receive power, module temperature, supply voltage (3.3V rail), and laser bias current via the I2C interface exposed on pins 4 and 5 of the SFP connector. Most managed switches supporting DDM will display these values in the CLI or web UI. Monitoring receive power is especially useful on long 70 to 80km links to detect fibre degradation or margin erosion before link failure occurs.

Q: How does the -40 to 85°C operating range affect deployment compared to commercial-grade 0 to 60°C modules?
A: The extended industrial temperature range allows direct installation in outdoor enclosures, unheated roadside cabinets, rail wayside boxes, or factory environments subject to process heat without requiring climate control. The transceiver will maintain full 1Gbps throughput and meet all optical specifications across the entire -40 to 85°C span. Commercial-grade modules may experience optical power drift, increased bit error rates, or outright failure when exposed to temperature extremes outside the 0 to 60°C envelope.
