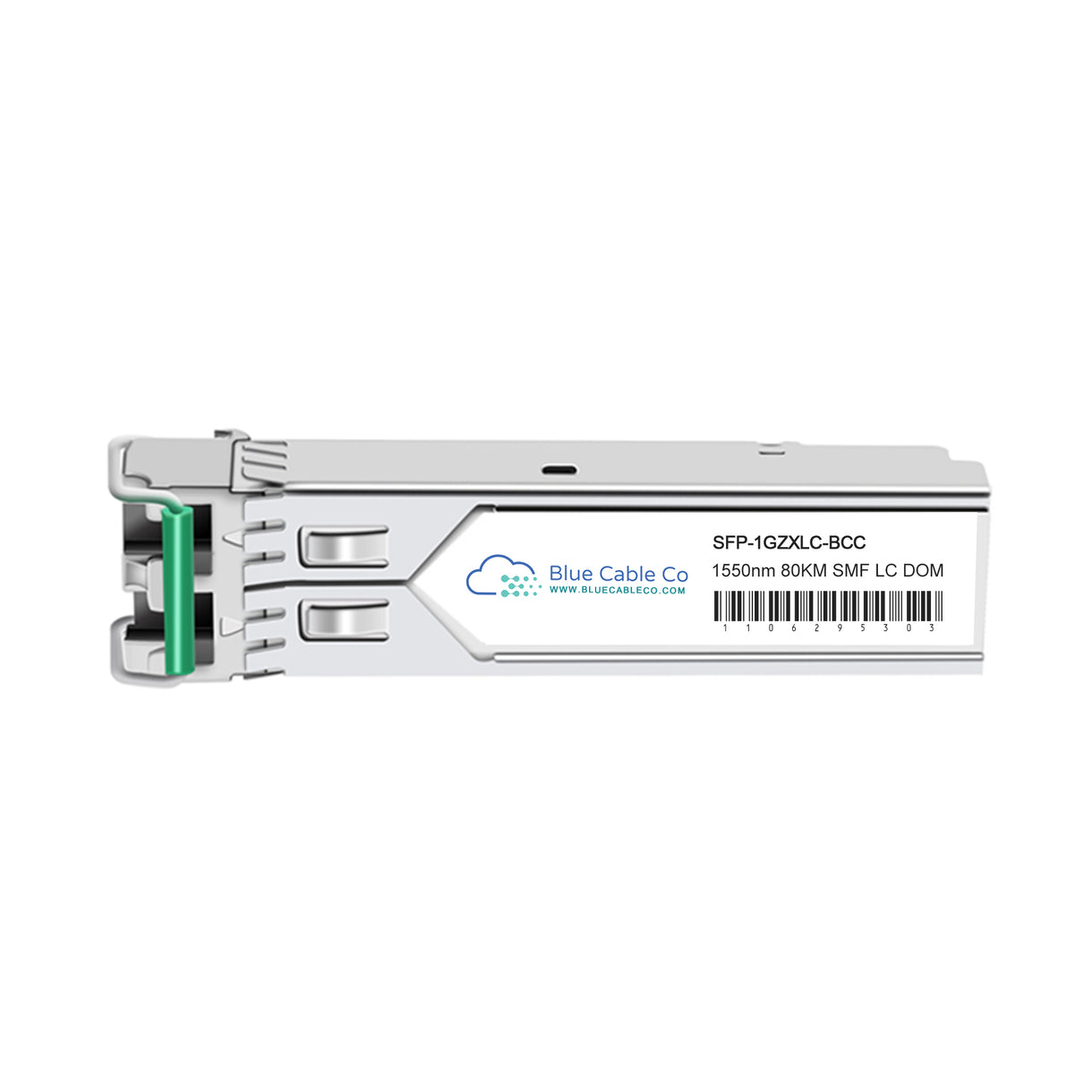

• Moxa Compatible SFP-1GZXLC-BCC 1GB ZR Transceiver Module
1 1

Blue Cable Co

SFP-1GZXLC-BCC | Moxa Compatible 1GB Single-Mode ZR - 70km (1000BASE-ZX)

SFP-1GZXLC-BCC

8 in stock

$124.30 inc. GST
$113.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-1GZXLC-BCC is a drop-in compatible replacement for the Moxa SFP-1GZXLC. It works as a plug-and-play solution in Moxa Gigabit Ethernet switches and routers that support 1000BASE-ZX SFP modules. - IEEE 802.3z compliant, ensuring interoperability with any standards-based Gigabit Ethernet network - SFP form factor supporting 1000BASE-ZX at 1550nm wavelength over single-mode fibre with LC duplex connector - Reaches up to 70km over OS1/OS2 single-mode fibre depending on link loss budget - Digital Diagnostic Monitoring (DDM) function provides real-time visibility of transceiver parameters including temperature, voltage, and optical power levels - Hot-swappable design allows installation and removal without interrupting network operations - Operating temperature range of 0 to 60°C suits standard commercial networking environments

Features

• IEEE 802.3z and SFP MSA compliance guarantee interoperability with any Gigabit Ethernet equipment supporting 1000BASE-ZX optics, removing vendor lock-in for long-reach single-mode links
• 1550nm long-wavelength transmission uses standard DFB laser and PIN receiver architecture, providing low signal degradation across metro-distance fibre spans without requiring in-line amplification
• SFF-8472 digital diagnostic interface exposes transceiver temperature, bias current, transmit power, and receive power in real time, enabling proactive link health monitoring without external test equipment
• Hot-swap capability allows field replacement during live network operation, as the host switch will detect insertion and activate the port without requiring a reboot or configuration change
• 0 to 60°C commercial operating range supports standard indoor telecom and enterprise data centre environments where thermal management is available
• Long-reach ZX optics at 70km may require optical attenuation on short links to prevent receiver overload; consult link budget calculation if span is under 10km

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we"ll deliver a replacement part before you return the faulty item, minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-1GZXLC-BCC
Compatible Replacement For: SFP-1GZXLC
Compatibility: Moxa compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1 Gbps
Wavelength: 1550nm
Fibre Type: Single-Mode (OS1/OS2)
Connector Type: LC duplex
DOM Support: Yes (DDM)
Standards: IEEE 802.3z (1000BASE-ZX), SFP MSA, SFF-8472
Max Reach: Up to 70km (per datasheet, subject to fibre and link conditions)
Operating Temperature: 0 to 60°C

FAQs

Q: Will this work in place of the Moxa SFP-1GZXLC?
A: Yes. This module is electrically and optically identical to the SFP-1GZXLC, providing the same 1000BASE-ZX functionality at 1550nm over single-mode fibre in an SFP form factor. It is plug-and-play compatible with any Moxa Gigabit Ethernet switch or router that accepts the original module, with no configuration or firmware changes required.

Q: Which Moxa platforms support this transceiver?
A: This module works in any Moxa switch, router, or interface module with a Gigabit SFP slot that supports 1000BASE-ZX optics. This includes the ICS-G7000, ICS-G7800, EDS-500A, EDS-G500, IKS-G6500, and IM-G7000 series, among others. The determining factor is the SFP slot specification, not the specific model number.

Q: What fibre type and link budget does this module require for 70km reach?
A: This module requires OS1 or OS2 single-mode fibre with 9/125µm core diameter. Achieving the full 70km distance depends on total link loss staying within the module's power budget. You must account for fibre attenuation (typically 0.35 dB/km at 1550nm), connector insertion loss, splice loss, and any patch panel losses when calculating end-to-end feasibility.

Q: Can I use this on short fibre runs, or will it damage the receiver?
A: ZX optics are designed for long distance and emit higher transmit power than short-reach modules. On links shorter than 10km, the receiver may experience overload. Best practice is to insert an LC fibre attenuator of 5 dB or greater on short spans to prevent saturation and bit errors. Always verify received power levels using the DDM function.

Q: Does this module support Fibre Channel in addition to Gigabit Ethernet?
A: Yes. This transceiver complies with both IEEE 802.3z for Gigabit Ethernet and 1G Fibre Channel physical layer requirements. The same optical and electrical specifications apply in either application, making it suitable for storage area networks or converged network environments where both protocols are present on the same infrastructure.
