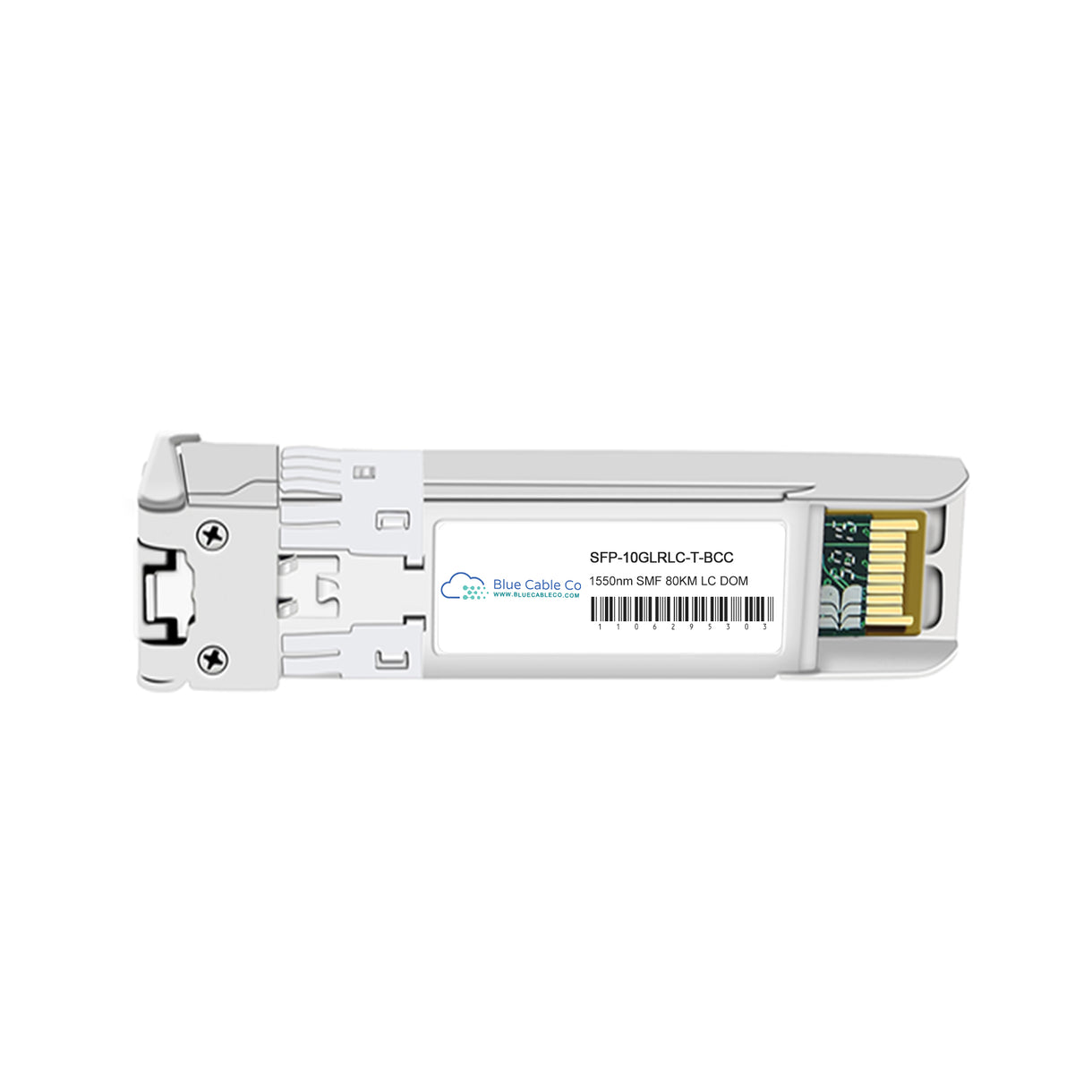

• Moxa Compatible SFP-10GLRLC-T-BCC 10GBASE-LR White Transceiver Module
1 1

Blue Cable Co

SFP-10GLRLC-T-BCC | Moxa Compatible 10GB Single-Mode 10km (10GBASE-LR)

SFP-10GLRLC-T-BCC

43 in stock

$90.20 inc. GST
$82.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-10GLRLC-T-BCC is a drop-in compatible replacement for the Moxa SFP-10GLRLC-T. This SFP+ transceiver operates plug-and-play in Moxa industrial Ethernet switches with 10G SFP+ ports. - IEEE 802.3ae 10GBASE-LR compliance guarantees interoperability with standards-based 10 Gigabit Ethernet infrastructure - SFP+ form factor, 10 Gbps data rate, single-mode fibre, 1310nm wavelength, up to 10km reach over OS2 SMF - Digital Diagnostic Monitoring (DOM) function provides real-time access to transceiver parameters including temperature, voltage, and optical power - LC duplex connector, hot-pluggable design for live insertion and removal without network interruption - Extended operating temperature range of -40 to 85°C makes this module suitable for harsh industrial environments and outdoor installations - SFF-8432 SFP+ MSA compliant, tested for compatibility with Moxa industrial switches and Ethernet platforms

Features

• IEEE 802.3ae 10GBASE-LR standard compliance ensures transparent interoperability with vendor-neutral 10 Gigabit Ethernet equipment over single-mode fibre infrastructure
• Extended industrial temperature operation from -40 to 85°C supports deployment in outdoor cabinets, railway applications, power substations, and other harsh environments where commercial-grade optics fail
• Digital Diagnostic Monitoring via SFF-8472 two-wire serial interface enables proactive link health monitoring by exposing transmit power, receive power, temperature, voltage, and bias current in real time
• Hot-pluggable LC duplex connector allows field installation and replacement without powering down the host switch, maintaining network uptime during maintenance windows
• 1310nm wavelength transmitter and single-mode fibre architecture deliver low chromatic dispersion and attenuation over 10km links, supporting both short intra-rack connections and longer inter-building runs on the same transceiver
• Maximum power consumption of 1.5W reduces thermal load in dense SFP+ switch installations and enables fanless industrial switch designs

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty item, minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-10GLRLC-T-BCC
Compatible Replacement For: SFP-10GLRLC-T
Compatibility: Moxa compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10 Gbps
Standards: IEEE 802.3ae 10GBASE-LR, SFF-8432 SFP+ MSA
Wavelength: 1310nm
Fibre Type: Single-Mode (SMF)
Connector Type: LC duplex
DOM Support: Yes (Digital Diagnostic Monitor)
Max Reach: 10km (OS2 single-mode fibre)
Operating Temperature: -40 to 85°C
Power Consumption: Max. 1.5W

FAQs

Q: Will this work in place of the Moxa SFP-10GLRLC-T?
A: Yes. This transceiver is a plug-and-play replacement for the Moxa SFP-10GLRLC-T. It meets the same IEEE 802.3ae 10GBASE-LR standard, uses the same SFP+ form factor, operates at 10 Gbps over single-mode fibre at 1310nm, and provides the same 10km reach and extended temperature rating. It will initialise and link normally in any Moxa switch that accepts the original module.

Q: Which Moxa switches support this transceiver?
A: This SFP+ module is compatible with Moxa industrial Ethernet switches that feature 10G SFP+ port slots, including the ICS Series 10G core switches and other Moxa platforms with 10 Gigabit uplink capability. Consult the Moxa Ethernet SFP Transceiver Product Compatibility Matrix for your specific switch model to confirm 10G SFP+ port availability.

Q: What type of fibre cable does this transceiver require?
A: This 10GBASE-LR transceiver requires OS2 single-mode fibre (9/125 micron) with LC duplex connectors. It transmits at 1310nm wavelength and supports link distances up to 10km. Do not use multi-mode fibre (OM3, OM4) with this module as the modal bandwidth and core diameter are incompatible with the single-mode laser source, which will prevent link establishment.

Q: Can I monitor the optical power levels on this transceiver?
A: Yes. This transceiver supports Digital Diagnostic Monitoring (DOM) per SFF-8472. Your Moxa switch or network management software can read real-time transmit power, receive power, temperature, supply voltage, and laser bias current via the two-wire serial interface. These parameters are useful for qualifying new fibre installations, diagnosing marginal links, and predicting transceiver end-of-life before failures occur.

Q: What is the minimum link distance for this 10km-rated transceiver?
A: According to IEEE 802.3ae, the minimum cabling distance for 10GBASE-LR modules is 2 metres. This transceiver can be used for short single-mode connections within a rack or between adjacent racks without requiring attenuators, as the receive sensitivity and transmit power are designed to handle the full range from 2 metres to 10 kilometres on standard G.652 single-mode fibre.
