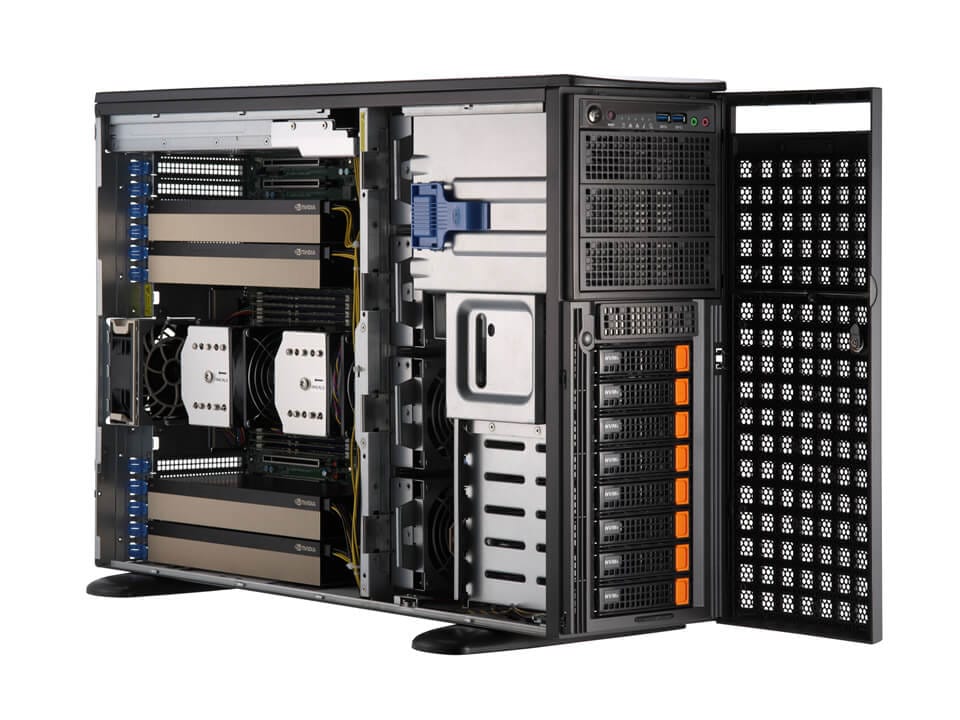

Supermicro SYS-741GE-TNRT | X13 Dual Xeon Tower Server, 4x DW GPU, 4TB DDR5, 10GbE

Q: What GPU configurations are supported on the SYS-741GE-TNRT?
A: The system supports up to four double-width full-length GPUs including NVIDIA H100, A100, L40S, and L40 PCIe models. It features 4x PCIe 5.0 x16 double-width slots optimized for GPU workloads and 3 additional PCIe 5.0 x16 single-width slots for networking or storage expansion.

Q: Can this workstation support both tower and rackmount deployment?
A: Yes, the SYS-741GE-TNRT is designed as a convertible tower/4U rackmount system. It can be deployed as a standalone tower workstation for office or lab environments or installed in a standard 4U rack space for data center deployment.

Q: What storage configurations are available?
A: The system includes 8x hot-swap 3.5"/2.5" drive bays that support NVMe, SAS, or SATA drives with direct CPU-attached NVMe support via PCIe 5.0. It supports up to 8x NVMe drives by default and includes 2x M.2 NVMe slots dedicated for boot drives. Hardware RAID 0/1/5/10 is supported.

Q: What generation of Intel Xeon processors does this server support?
A: The SYS-741GE-TNRT supports dual 5th Gen Intel Xeon Scalable processors (Emerald Rapids) and 4th Gen Intel Xeon Scalable processors (Sapphire Rapids), including Xeon CPU Max series. The system accommodates processors up to 64 cores per socket with up to 320MB cache per CPU.

Q: What are the key use cases for this GPU workstation?
A: This system is optimized for AI/deep learning training, high-performance computing, 3D rendering and animation, design and visualization, diagnostic imaging, VDI deployments, media and video streaming, and cloud gaming applications requiring multi-GPU acceleration.
