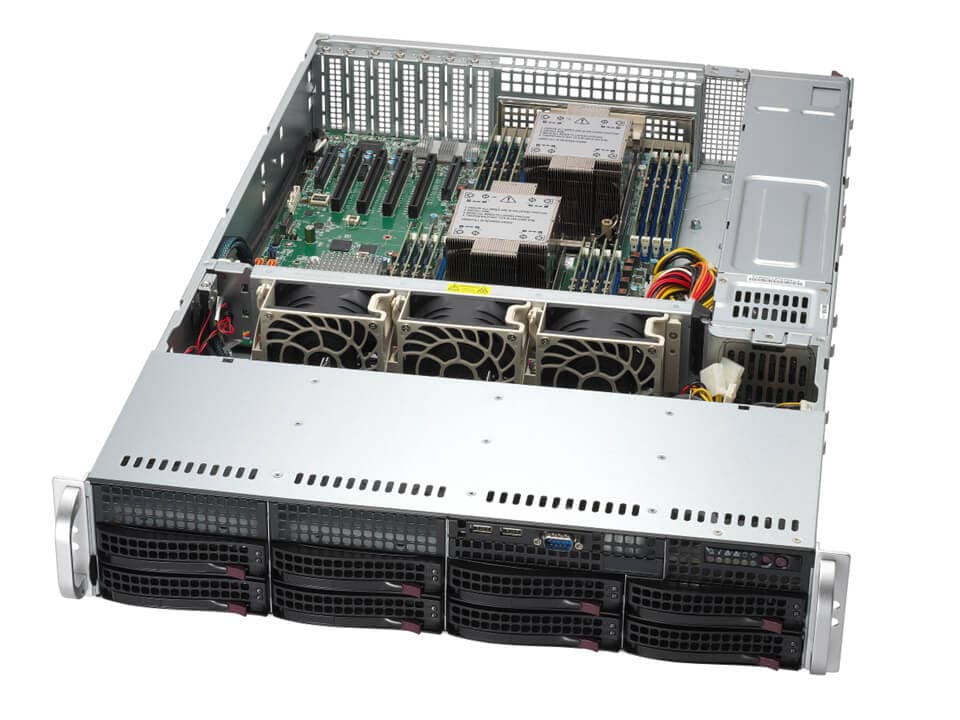

• Silver and black supermicro sys-621p-trt rack-mounted server with multiple drive bays cooling fans and internal components visible
1 1

Supermicro

Supermicro SYS-621P-TRT | X13 2U Dual Xeon Server, 8x 3.5" Hot-Swap, 16x DDR5

SYS-621P-TRT

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SYS-621P-TRT is a 2U rackmount server engineered for virtualization, enterprise applications, and compute-intensive workloads. Supporting dual 5th/4th Gen Intel Xeon Scalable processors with up to 300W TDP and up to 4TB DDR5-5600MHz memory across 16 DIMM slots, this mainstream server delivers robust performance for data centers. With 8x 3.5-inch hot-swap drive bays, dual 10GbE networking, 6x PCIe 5.0 expansion slots, and redundant 1200W Titanium-level power supplies, it offers exceptional flexibility and reliability for business-critical operations.

Features

Dual 5th/4th Gen Intel Xeon Scalable processor support with Socket E (LGA-4677) for up to 80 cores total
- Up to 4TB DDR5-5600MHz ECC RDIMM memory across 16 DIMM slots for maximum bandwidth
- 6x PCIe 5.0 expansion slots (4x x16 LP, 2x x8 LP) for high-speed networking, storage controllers, or GPU accelerators
- 8x 3.5-inch hot-swap drive bays with flexible SATA3, SAS, or NVMe configuration options
- 2x M.2 NVMe slots (PCIe 4.0) for boot drives or caching applications
- Dual 10GbE RJ45 networking with Broadcom BCM57416 controllers for high-throughput connectivity
- Redundant 1200W Titanium-level power supplies (1+1) for maximum efficiency and uptime
- Intel C741 chipset optimized for Xeon Scalable platforms
- IPMI 2.0 with dedicated LAN for comprehensive remote management and monitoring
- Hot-swappable cooling with 3x 8cm fans for serviceability without downtime
- Redfish API support for modern data center automation and orchestration
- Tool-less drive trays for rapid storage deployment and maintenance
- Front-panel system information LEDs for HDD activity, network status, power, and thermal monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U Rackmount
- Processors: Dual Socket E (LGA-4677) supporting 5th/4th Gen Intel Xeon Scalable processors, up to 300W TDP
- Memory: 16x DIMM slots, up to 4TB DDR5-5600MHz/4800MHz ECC Registered RDIMM
- Drive Bays: 8x 3.5-inch hot-swap SATA3 drive bays (configurable for SAS or 4x NVMe with additional parts), plus 2x M.2 NVMe (PCIe 4.0, Form Factor 2280/22110)
- Expansion Slots: 4x PCIe 5.0 x16 Low Profile, 2x PCIe 5.0 x8 Low Profile
- Network: 2x 10GbE RJ45 ports (Broadcom BCM57416 10GBase-T)
- Chipset: Intel C741
- Power Supply: Dual 1200W Redundant Titanium Level (80 PLUS Titanium)
- Management: IPMI 2.0 with KVM-over-LAN, Redfish API, Supermicro Server Manager (SSM), SuperDoctor 5
- I/O: 1x VGA, 2x USB 2.0 (front), 4x USB 3.0 (rear), 2x COM ports, 1x dedicated BMC LAN
- Cooling: 3x 8cm hot-swappable fans
- Dimensions: 437mm x 89mm x 647mm (17.2" x 3.5" x 25.5")
- Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Certifications: RoHS compliant

FAQs

Q: What processors are compatible with the SYS-621P-TRT?
A: The SYS-621P-TRT supports dual 5th and 4th Gen Intel Xeon Scalable processors in Socket E (LGA-4677) with up to 300W TDP per processor. This includes Xeon Platinum, Gold, Silver, and Bronze families, providing flexibility for various performance and budget requirements.

Q: Can I configure this server with NVMe drives?
A: Yes, the standard configuration includes 8x 3.5-inch hot-swap SATA3 drive bays, which can be configured for SAS or up to 4x hot-swap NVMe drives with additional required parts. The system also includes 2x M.2 NVMe slots (PCIe 4.0, form factors 2280/22110) for boot drives or caching.

Q: What is the maximum memory capacity?
A: The SYS-621P-TRT supports up to 4TB of DDR5 ECC Registered RDIMM across 16 DIMM slots, with memory speeds up to 5600MHz (depending on processor and configuration). This provides ample capacity for virtualization, in-memory databases, and data-intensive applications.

Q: Is this server suitable for virtualization environments?
A: Absolutely. The SYS-621P-TRT is specifically designed for virtualization workloads, featuring dual high-core-count Xeon Scalable processors, up to 4TB memory capacity, 6x PCIe 5.0 expansion slots for accelerators or additional networking, and flexible storage configurations ideal for hypervisor deployments.

Q: What management capabilities does this server include?
A: The server includes comprehensive out-of-band management through IPMI 2.0 with dedicated LAN port, KVM-over-LAN for remote console access, Redfish API for modern automation, and Supermicro's management suite including Server Manager (SSM), SuperDoctor 5 for monitoring, and Update Manager (SUM) for firmware maintenance.
