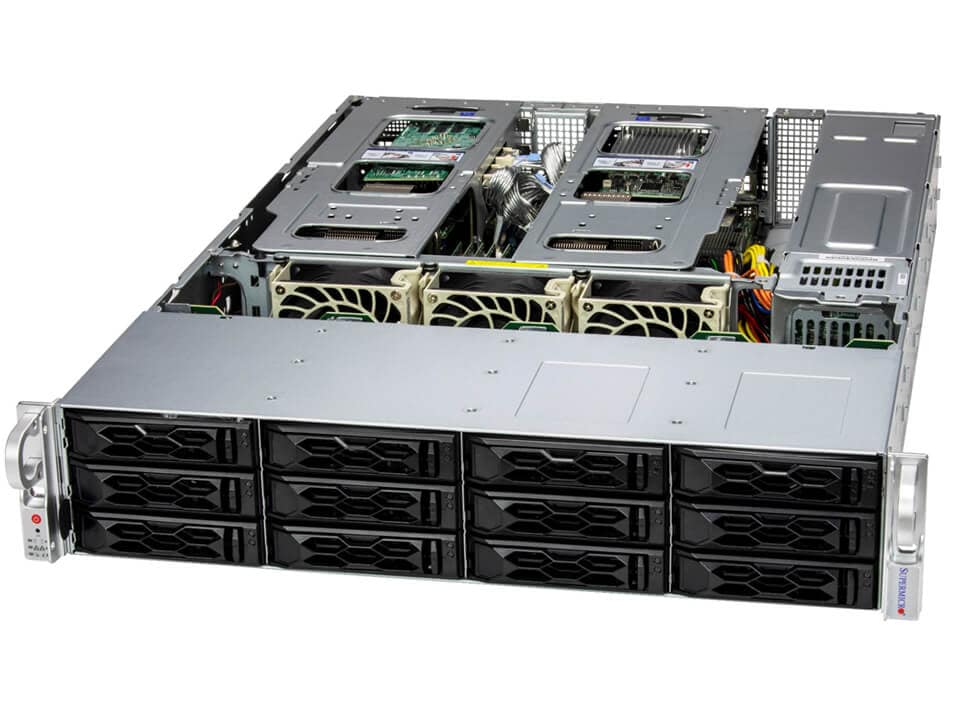

• Silver and black Supermicro SYS-621C-TN12R rack-mounted server with multiple drive bays and visible cooling fans and hardware
1 1

Supermicro

Supermicro SYS-621C-TN12R | X13 CloudDC 2U Server, Dual Xeon Scalable, 16 DDR5

SYS-621C-TN12R

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SYS-621C-TN12R is a versatile 2U rackmount server engineered for cloud computing, virtualization, and data center workloads. Supporting dual 5th/4th Gen Intel Xeon Scalable processors with up to 4TB DDR5-5600MHz memory, it delivers exceptional compute density. With 12 hot-swap 3.5 or 2.5-inch hybrid NVMe/SAS/SATA drive bays, 6 PCIe 5.0 slots, dual AIOM networking, and optional GPU support for up to 2 double-width or 6 single-width accelerators, this CloudDC platform offers unmatched flexibility for enterprise infrastructure.

Features

Dual 5th/4th Gen Intel Xeon Scalable processor support with up to 64 cores per CPU
- DDR5-5600MHz memory support with up to 4TB capacity across 16 DIMM slots
- 12 hot-swap hybrid drive bays supporting NVMe/SAS/SATA in 3.5-inch or 2.5-inch form factors
- PCIe 5.0 architecture with 6 expansion slots for maximum bandwidth and future-proofing
- Dual AIOM (OCP 3.0) networking slots for tool-free, high-speed network card deployment
- GPU support for up to 2 double-width or 6 single-width accelerators
- On-board RAID 0/1/5/10 for SATA drives, Intel VROC support for NVMe RAID arrays
- 2x M.2 NVMe slots (PCIe 5.0 x4) for OS boot drives or caching
- Redundant 1200W Titanium Level power supplies for efficiency and uptime
- Tool-less PCIe brackets for rapid component installation and maintenance
- IPMI 2.0 with dedicated LAN for out-of-band remote management
- Redfish API support for modern data center orchestration and automation
- TPM 2.0, Intel SGX, Secure Boot, and signed firmware for hardware-based security
- Hot-swap drive trays and redundant cooling for serviceability without downtime
- Compatible with VMware ESXi, Citrix, Microsoft Hyper-V, Windows Server, and major Linux distributions

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rackmount, 437 x 89 x 648mm (17.2 x 3.5 x 25.5 inches)
- Processors: Dual Socket E (LGA-4677) for 5th/4th Gen Intel Xeon Scalable processors, up to 270W TDP per CPU
- Memory: 16 DIMM slots supporting up to 4TB DDR5-5600MHz ECC RDIMM, 3DS support
- Storage: 12x hot-swap 3.5/2.5-inch hybrid NVMe/SAS/SATA drive bays, 2x M.2 PCIe 5.0 x4 NVMe slots (2280 form factor)
- Expansion Slots: 4x PCIe 5.0 x8 FHHL (combinable into 2x PCIe 5.0 x16), 2x PCIe 5.0 x16 FHHL
- GPU Support: Up to 2 double-width GPUs or 6 single-width GPUs (supports NVIDIA H100, L40S, L40, RTX series, Intel Data Center GPU)
- Network: Dual AIOM (OCP 3.0) slots supporting 1GbE/10GbE/25GbE/100GbE networking cards, 1x dedicated IPMI LAN
- RAID: On-board SATA3 (6Gbps) controller with RAID 0/1/5/10 support, Intel VROC support for NVMe
- Power Supply: 1200W/1000W redundant 80 PLUS Titanium Level (100-240VAC, 200-240VDC)
- Cooling: 3 heavy-duty fans with optimal speed control, 1 air shroud
- Management: IPMI 2.0, Redfish, SuperDoctor 5, Intel Node Manager, KVM with dedicated LAN, TPM 2.0 header
- I/O Ports: 1x VGA, 1x COM, 2x USB 3.0 (rear)
- Chipset: Intel C741

FAQs

Q: What processor generations does the SYS-621C-TN12R support?
A: The system supports dual 5th and 4th Generation Intel Xeon Scalable processors in Socket E (LGA-4677) configuration, with TDP support up to 270W per processor, providing flexibility for both current and next-generation CPU deployments.

Q: Can I mix NVMe, SAS, and SATA drives in the same system?
A: Yes, all 12 front drive bays support hybrid NVMe/SAS/SATA configurations. You can deploy any combination of 3.5-inch or 2.5-inch drives across these interfaces, allowing for tiered storage architectures that balance performance and capacity needs.

Q: What GPU configurations are supported?
A: The SYS-621C-TN12R supports up to 2 double-width GPUs (such as NVIDIA H100, L40S, or L40) or up to 6 single-width GPUs through its PCIe 5.0 x16 slots. This makes it suitable for AI inference, GPU-accelerated compute, and virtualized graphics workloads.

Q: How does the AIOM networking work?
A: The system includes dual AIOM (OCP 3.0) slots that accept modular networking cards supporting 1GbE, 10GbE, 25GbE, or 100GbE speeds. This allows you to configure networking bandwidth precisely to your requirements without occupying PCIe slots, and swap network cards tool-free as needs evolve.

Q: Is this server suitable for virtualization platforms?
A: Absolutely. The SYS-621C-TN12R is certified compatible with VMware ESXi, Citrix Hypervisor, Microsoft Hyper-V, and KVM. With high memory capacity, flexible storage, and Intel VT-x/VT-d support, it excels in virtualized data center and private cloud deployments.
