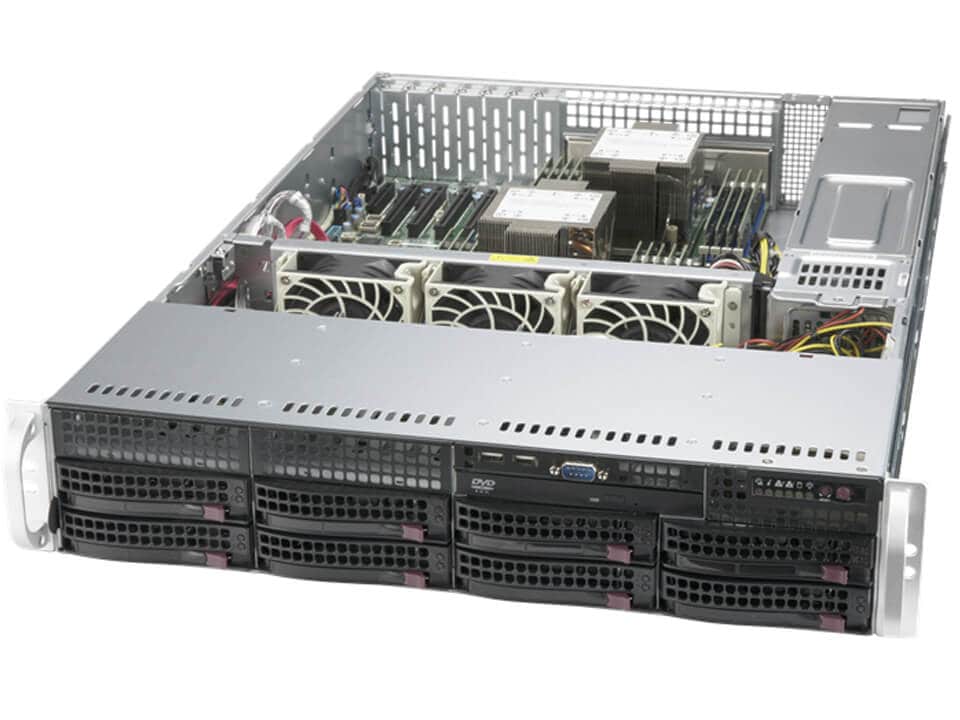

• Supermicro sys-620p-trt silver and black 1u rack-mount server with multiple drive bays and front panel ports including dvd cd rom vga usb and power indicators
1 1

Supermicro

Supermicro SYS-620P-TRT | X12 Dual Xeon Scalable 2U Rack Server, 18 DIMM, 8x 3.5" Hot-Swap

SYS-620P-TRT

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SYS-620P-TRT is a versatile 2U rackmount server engineered for virtualization, data centers, and compute-intensive enterprise workloads. Featuring dual 3rd Gen Intel Xeon Scalable processor sockets with support for up to 270W TDP and 18 DIMM slots accommodating up to 4TB of DDR4-3200 memory, it delivers exceptional performance and scalability. With 8 hot-swap 3.5-inch SATA drive bays, 6 PCIe 4.0 expansion slots, dual 10GBase-T networking, and 1200W redundant Titanium-level power supplies, this platform is optimized for mission-critical applications requiring reliability and expansion capacity.

Features

Dual 3rd Gen Intel Xeon Scalable processor support with up to 270W TDP per socket
- Up to 4TB DDR4-3200 ECC memory across 18 DIMM slots with support for RDIMM, LRDIMM, and Intel Optane Persistent Memory
- 8 hot-swap 3.5-inch SATA drive bays with optional SAS support and expandable with internal NVMe and rear SATA bays
- 6 PCIe 4.0 expansion slots (4x x16 and 2x x8) for high-performance adapters and accelerators
- Dual 10GBase-T Ethernet with Intel X550 controller for high-bandwidth network connectivity
- Intel C621A chipset with UPI 3.0 support up to 11.2 GT/s for high-speed inter-processor communication
- 1200W redundant hot-plug power supplies with 80 PLUS Titanium efficiency (96%)
- Advanced IPMI 2.0 remote management with AST2600 BMC, KVM-over-IP, and virtual media support
- Optimized airflow design with up to 3 heavy-duty fans and intelligent speed control
- Comprehensive management software suite including SuperDoctor 5, Supermicro Server Manager, and Update Manager
- Tool-less drive installation and hot-swap capability for minimal downtime
- AMI 32MB SPI Flash EEPROM BIOS with extensive configuration options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rackmount
- Processor Support: Dual socket P+ (LGA-4189) for 3rd Gen Intel Xeon Scalable processors, up to 270W TDP, 3 UPI up to 11.2 GT/s
- Chipset: Intel C621A
- Memory: 18 DIMM slots supporting up to 4TB DDR4-3200MHz ECC RDIMM/LRDIMM or Intel Optane Persistent Memory 200 Series
- Drive Bays: 8x hot-swap 3.5-inch SATA3 (6Gbps) drive bays; optional 2x internal NVMe fixed bays and 2x rear hot-swap SATA bays
- Expansion Slots: 4x PCIe 4.0 x16 low-profile, 2x PCIe 4.0 x8 low-profile
- Network: Dual 10GBase-T LAN with Intel X550 Ethernet Controller
- Power Supply: Dual 1200W redundant hot-plug power supplies, 80 PLUS Titanium Level (96% efficiency), 100-240Vac/200-240Vdc
- Management: IPMI 2.0 with dedicated RJ45 port, KVM-over-IP, remote media support; AST2600 BMC; SuperDoctor 5, Supermicro Server Manager
- I/O Ports: 1x rear VGA, 1x Type A port, 2x COM ports (1 front, 1 rear), 6x USB (2 front USB 2.0, 4 rear USB 3.0)
- Cooling: Up to 3 heavy-duty fans with optimal speed control
- Dimensions (H x W x D): 89mm x 437mm x 647mm (2U)
- Weight: 16.1 kg

FAQs

Q: What processors are compatible with the SYS-620P-TRT?
A: The SYS-620P-TRT supports dual 3rd Gen Intel Xeon Scalable processors (Ice Lake) in LGA-4189 sockets with TDP support up to 270W. This includes models from the Xeon Gold, Platinum, Silver, and Bronze families designed for demanding enterprise and data center workloads.

Q: Can I expand storage beyond the 8 hot-swap drive bays?
A: Yes, the chassis includes optional expansion with 2 internal fixed NVMe drive bays and 2 additional rear hot-swap SATA drive bays. You can also add SAS drives by installing an optional SAS controller card in one of the PCIe slots.

Q: What memory configurations are supported?
A: The system supports up to 4TB across 18 DIMM slots using DDR4-3200MHz ECC RDIMM or LRDIMM memory. It also supports Intel Optane Persistent Memory 200 Series (note: P1-DIMMB2 and P2-DIMMB2 slots are reserved for Optane PMem only).

Q: Does this server support remote management?
A: Yes, the SYS-620P-TRT includes IPMI 2.0 with a dedicated management port, AST2600 BMC, and KVM-over-IP capabilities. It supports remote power control, virtual media mounting, and integrates with Supermicro management tools including SuperDoctor 5 and Supermicro Server Manager.

Q: What makes this server suitable for virtualization environments?
A: The dual-socket architecture with high-core-count Xeon Scalable processors, massive memory capacity up to 4TB, PCIe 4.0 expansion for high-speed storage and network adapters, and dual 10GbE networking make it ideal for running multiple virtual machines with enterprise-grade performance and I/O throughput.
