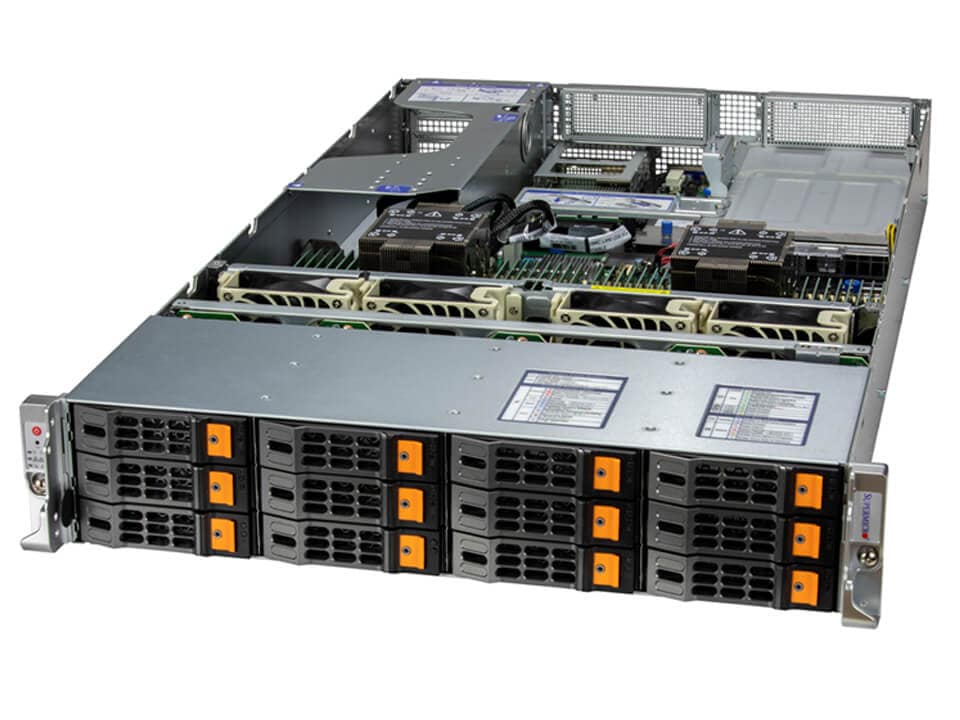

• Supermicro sys-620h-tn12r silver and black server rack with orange drive bay indicators modular design enterprise computing
1 1

Supermicro

Supermicro SYS-620H-TN12R | Hyper 2U Dual Xeon Scalable Server, 32 DIMM, 12-Bay

SYS-620H-TN12R

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SYS-620H-TN12R is a high-density 2U rackmount server designed for virtualization, cloud computing, software-defined storage, and AI inference workloads. Featuring dual 3rd Gen Intel Xeon Scalable processors with 32 DDR4 DIMM slots supporting up to 8TB memory, it delivers exceptional compute and memory capacity. The system offers 12 hot-swap 3.5-inch hybrid NVMe/SAS/SATA drive bays with flexible PCIe 4.0 expansion up to 8 slots, GPU support, and dual AIOM OCP 3.0 networking for maximum performance and scalability.

Features

Dual 3rd Gen Intel Xeon Scalable processor support with Socket P+ (LGA-4189)
- 32 DDR4 DIMM slots supporting up to 8TB ECC RDIMM/LRDIMM at 3200MHz
- Intel Optane Persistent Memory 200 series support for hybrid memory configurations
- 12 hot-swap 3.5-inch hybrid NVMe/SAS/SATA drive bays with flexible storage options
- Up to 8 PCIe 4.0 expansion slots with double-width GPU/accelerator support
- Dual AIOM networking slots with OCP NIC 3.0 compatibility
- 1200W redundant 80 PLUS Titanium power supplies with PMBus management
- IPMI 2.0 with dedicated LAN, KVM-over-IP, and remote media mounting
- Hot-swap fan modules with intelligent speed control and PWM support
- Comprehensive system health monitoring for CPU, memory, fans, and temperatures
- Intel C621A chipset with PCIe 4.0 architecture
- Tool-less drive bay access for simplified maintenance
- Compatible with VMware, Microsoft Windows Server, Red Hat Enterprise Linux, and Oracle Linux

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rackmount server
- Processor: Dual Socket P+ (LGA-4189) supporting 3rd Gen Intel Xeon Scalable processors
- Chipset: Intel C621A
- Memory: 32 DIMM slots, up to 8TB ECC DDR4-3200MHz RDIMM/LRDIMM, supports Intel Optane Persistent Memory 200 series
- Drive Bays: 12x 3.5-inch hot-swap NVMe/SAS/SATA hybrid drive bays, plus 2x M.2 (NVMe or SATA3)
- Expansion Slots: Up to 8x PCIe 4.0 x8 or 4x PCIe 4.0 x16 slots with double-width GPU/accelerator support
- Networking: Up to 2x AIOM slots (OCP NIC 3.0 compatible), 1x dedicated IPMI LAN port
- Power Supply: Dual 1200W redundant 80 PLUS Titanium power supplies with PMBus
- Management: IPMI 2.0 with KVM, Redfish API, SuperDoctor 5, Intel Node Manager
- I/O: 4x USB 3.2 Gen1, 1x VGA, 1x COM port, TPM header
- Dimensions: 3.5 inches H x 17.2 inches W x 31.6 inches D (88.9 x 437 x 803 mm)
- Weight: Net 37 lbs (16.8 kg), Gross 63 lbs (28.6 kg)

FAQs

Q: What processors does the SYS-620H-TN12R support?
A: The SYS-620H-TN12R supports dual 3rd Generation Intel Xeon Scalable processors in Socket P+ (LGA-4189) configuration, offering enterprise-class performance for demanding workloads.

Q: Can this server support GPU accelerators?
A: Yes, the system supports up to 4 double-width GPU or accelerator cards using PCIe 4.0 x16 slots, making it ideal for AI inference, machine learning, and high-performance computing applications.

Q: What storage configurations are available?
A: The server features 12 hot-swap 3.5-inch drive bays that support hybrid NVMe, SAS, and SATA drives. Natively it supports 8 SATA and 4 NVMe drives, with optional RAID controller support for up to 12 SAS/SATA drives. Two additional M.2 slots are available on the rear panel.

Q: What is the maximum memory capacity?
A: The system supports up to 8TB of DDR4-3200MHz ECC memory using 32 DIMM slots with RDIMM or LRDIMM modules. It also supports Intel Optane Persistent Memory 200 series for up to 8TB PMem or up to 12TB combined memory with DRAM.

Q: What remote management features are included?
A: The server includes IPMI 2.0 with dedicated LAN port, providing KVM-over-IP, remote virtual media mounting, and comprehensive hardware monitoring. Additional management tools include Redfish API, SuperDoctor 5, and Intel Node Manager for complete out-of-band control.
