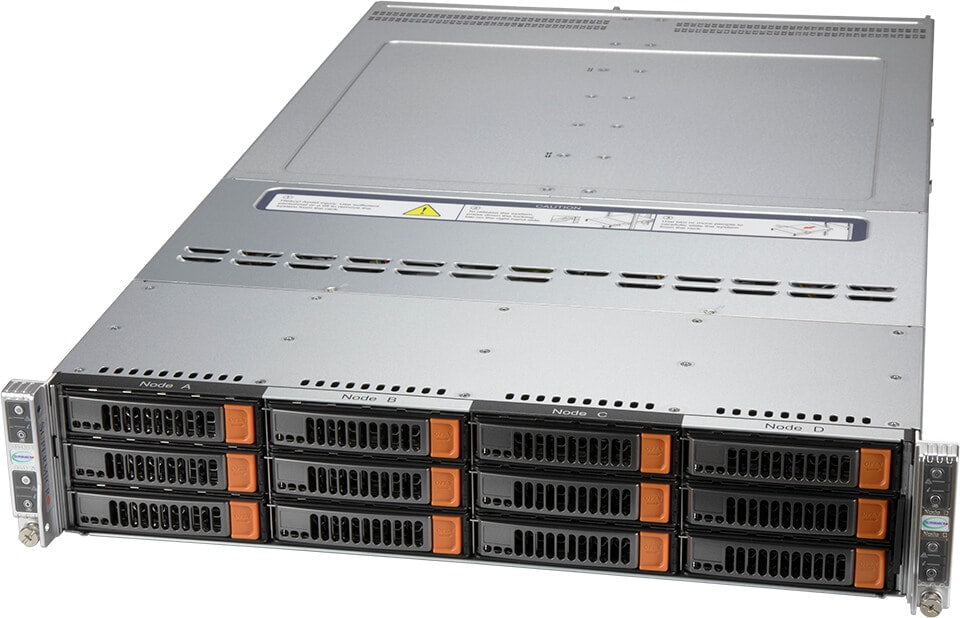

• Silver Supermicro SYS-620BT-HNC8R BigTwin 2U 4-node rack server with black and orange front panels labeled a through d
1 1

Supermicro

Supermicro SYS-620BT-HNC8R | BigTwin 2U 4-Node Rack Server, Dual Xeon Scalable

SYS-620BT-HNC8R

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SYS-620BT-HNC8R is a high-density BigTwin server featuring four hot-pluggable nodes in a compact 2U rackmount chassis. Each node supports dual 3rd Generation Intel Xeon Scalable processors, up to 4TB of DDR4-3200 memory across 16 DIMM slots, and three hot-swap 3.5-inch NVMe/SAS/SATA drive bays with Broadcom 3808 SAS controller. Designed for hyperconverged infrastructure, scale-out storage, and container deployments, the system includes AIOM networking, IPMI 2.0 remote management, and shared 2600W redundant Titanium-level power supplies for maximum efficiency and uptime.

Features

High-density 4-node architecture in compact 2U form factor for maximum datacenter efficiency
- Dual 3rd Generation Intel Xeon Scalable processors per node with support for up to 205W TDP CPUs
- Intel C621A chipset with PCIe 4.0 support for high-bandwidth I/O
- Hot-pluggable node design allows maintenance and upgrades without full system shutdown
- Up to 4TB DDR4-3200 ECC memory per node, or 6TB with Intel Optane Persistent Memory 200 Series
- Broadcom 3808 SAS 12Gb/s HBA controller integrated in each node for storage connectivity
- NVMe, SAS, and SATA drive support with 3x hot-swap 3.5-inch bays per node
- Dual M.2 slots per node for OS boot drives or high-speed caching
- AIOM (OCP 3.0) network slot per node for flexible 1GbE to 100GbE connectivity
- IPMI 2.0 with dedicated management port per node for remote KVM, monitoring, and virtual media
- Shared 2600W redundant Titanium-level (96%+) power supplies for energy efficiency and N+1 redundancy
- Tool-less design with optimized airflow and intelligent fan speed control
- Supports Intel VROC (Virtual RAID on CPU) for NVMe RAID without HBA
- Compatible with major hypervisors and Linux distributions including VMware ESXi, Windows Server, RHEL, SLES, and Oracle Linux
- Ideal for hyperconverged infrastructure, software-defined storage, container platforms, and scale-out workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rackmount with 4 hot-pluggable nodes
- Processor: Dual Socket P+ (LGA 4189) per node, supports 3rd Gen Intel Xeon Scalable processors up to 205W TDP
- Chipset: Intel C621A
- Memory: 20 DIMM slots per node (16 DDR4 + 4 Intel Optane PMem 200 slots); up to 4TB DDR4-3200 ECC RDIMM or up to 6TB with Intel Optane Persistent Memory
- Storage: 3x hot-swap 3.5-inch NVMe/SAS/SATA drive bays per node (12 total); 2x M.2 NVMe or SATA per node
- Storage Controller: Broadcom 3808 SAS 12Gb/s HBA per node
- Expansion: 2x PCIe 4.0 x16 low-profile slots per node; 1x PCIe 3.0 x8 M.2 boot controller slot
- Networking: AIOM (OCP 3.0 compliant) slot per node for flexible networking; dedicated RJ45 port for IPMI 2.0
- Management: IPMI 2.0 with KVM and remote virtual media support per node
- Power Supply: Dual 2600W redundant 80 PLUS Titanium Level (96%+) PSUs, shared across all nodes
- Cooling: 4 heavy-duty fans with optimal speed control, shared cooling design with air shrouds
- Certifications: Compatible with VMware ESXi, Microsoft Windows Server 2019, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux

FAQs

Q: What is the memory configuration for each node?
A: Each node supports 20 DIMM slots (16 standard DDR4 slots plus 4 Intel Optane Persistent Memory slots). Maximum capacity is up to 4TB using DDR4-3200 ECC RDIMMs, or up to 6TB when combining DDR4 with Intel Optane Persistent Memory 200 Series.

Q: How many storage drives can the entire system support?
A: The SYS-620BT-HNC8R supports a total of 12 hot-swap 3.5-inch drive bays (3 per node x 4 nodes) with NVMe, SAS, or SATA compatibility. Additionally, each node has 2x M.2 slots for boot drives or caching, providing flexible storage architecture for hyperconverged deployments.

Q: What networking options are available?
A: Each node features an AIOM (Advanced I/O Module) slot that is OCP 3.0 compliant, allowing flexible installation of 1GbE, 10GbE, 25GbE, or higher-speed network cards. Each node also includes a dedicated RJ45 port for out-of-band IPMI 2.0 management.

Q: Can each node be managed independently?
A: Yes, each node has independent IPMI 2.0 management with dedicated LAN port, providing remote KVM access, virtual media mounting, and health monitoring. Nodes can be hot-swapped for maintenance without impacting the other three nodes in the chassis.

Q: What are the ideal use cases for this BigTwin platform?
A: The SYS-620BT-HNC8R is optimized for hyperconverged infrastructure (HCI), scale-out file storage, container orchestration, and software-defined storage deployments. The high-density 4-node design maximizes compute and storage capacity per rack unit while shared power and cooling reduce operational costs.
