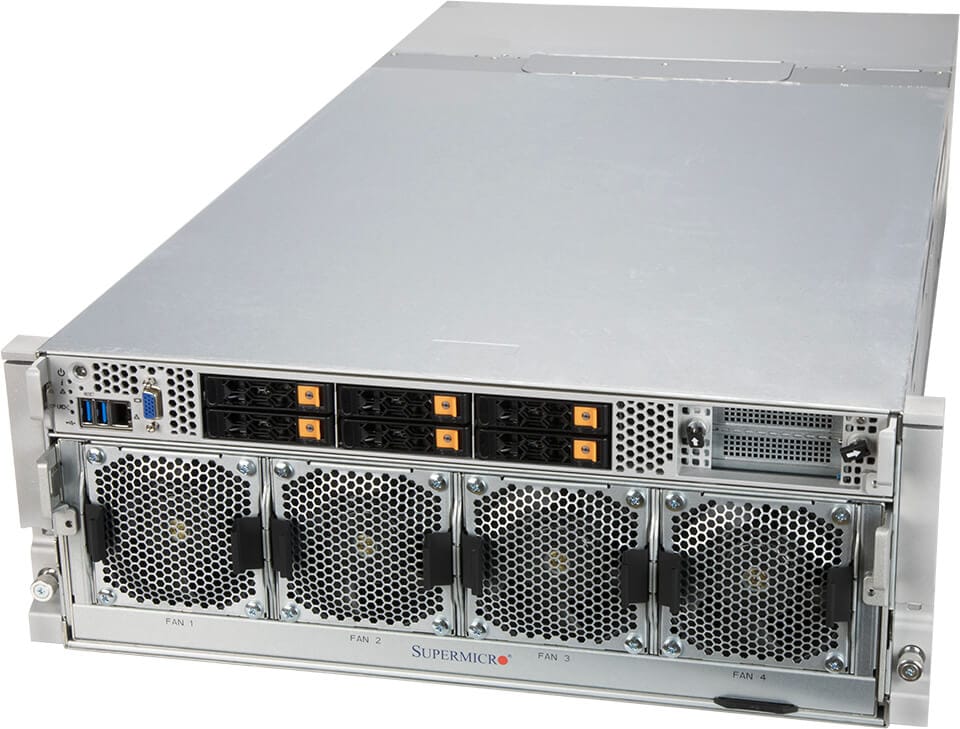

Supermicro SYS-420GP-TNAR | 4U Rackmount Server, Dual Xeon Scalable, 8x A100 GPU

Q: What GPUs does the SYS-420GP-TNAR support?
A: The SYS-420GP-TNAR is designed specifically for the NVIDIA HGX A100 8-GPU platform with NVLink and NVSwitch interconnect, providing high-speed GPU-to-GPU communication for accelerated AI training and HPC workloads.

Q: What processors are compatible with this system?
A: The system supports dual 3rd Gen Intel Xeon Scalable processors in LGA-4189 (Socket P+) format, leveraging the Intel C621A chipset for high-performance computing applications.

Q: How much memory can the SYS-420GP-TNAR accommodate?
A: The server features 32 DDR4 DIMM slots and supports up to 8TB of ECC DDR4 memory at speeds of 3200/2933/2666MHz. It also supports Intel Optane Persistent Memory 200 series, enabling up to 12TB total memory when combined with DRAM.

Q: What storage options are available?
A: The system includes 6 hot-swap 2.5-inch drive bays supporting NVMe, SAS, or SATA drives, plus 2 M.2 slots for NVMe or SATA boot drives. Additional rear-mounted NVMe bays may be available depending on configuration.

Q: What network expansion options does this server offer?
A: The SYS-420GP-TNAR provides AIOM (Add-In OCP Module) and OCP 3.0 support for flexible high-speed networking configurations, along with 10 PCIe Gen 4.0 x16 low-profile slots for additional network adapters or other expansion cards.
