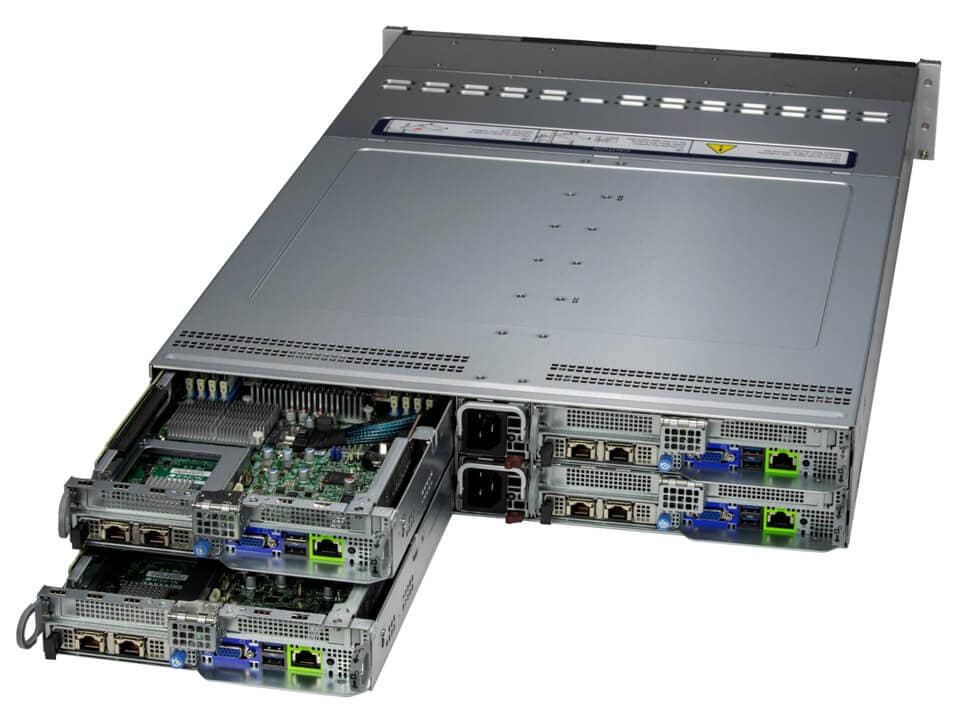

Supermicro SYS-221BT-HNTR | BigTwin 2U 4-Node Rack Server, Dual 5th/4th Gen Xeon

Q: What is the BigTwin architecture and how does it differ from standard servers?
A: The BigTwin architecture packs four independent, hot-pluggable server nodes into a single 2U chassis, delivering four times the compute density of traditional servers. Each node operates as a fully independent system with its own processors, memory, storage, and networking, but shares common power supplies and cooling infrastructure for improved efficiency and reduced datacenter footprint.

Q: Can I mix different processor generations across the four nodes?
A: While each node supports both 5th and 4th Gen Intel Xeon Scalable processors independently, it is recommended to use consistent processor configurations across all nodes for simplified management and workload balancing. Each node can be configured with different memory and storage configurations based on specific application requirements.

Q: What types of applications are best suited for this system?
A: This system excels in hyperconverged infrastructure deployments, all-flash NVMe storage clusters, container-as-a-service platforms, diskless HPC clusters, high-performance file systems, and application acceleration workloads that benefit from high compute density and direct-attached NVMe storage with PCIe 5.0 performance.

Q: How does the shared power and cooling design work?
A: The four nodes share redundant 3000W Titanium-level power supplies and a counter-rotating fan cooling system, reducing power infrastructure costs and improving overall energy efficiency. This shared design allows for N+1 redundancy while maintaining independent operation of each node, so a single node can be serviced or replaced without affecting the others.

Q: What networking options are available via the AIOM slot?
A: The AIOM (Advanced I/O Module) slot on each node is OCP 3.0 compliant and supports a wide range of network adapter cards including 1GbE, 10GbE, 25GbE, and 100GbE options in various configurations (single-port, dual-port, quad-port). This provides flexible, high-speed networking tailored to specific application requirements without consuming PCIe expansion slots.
