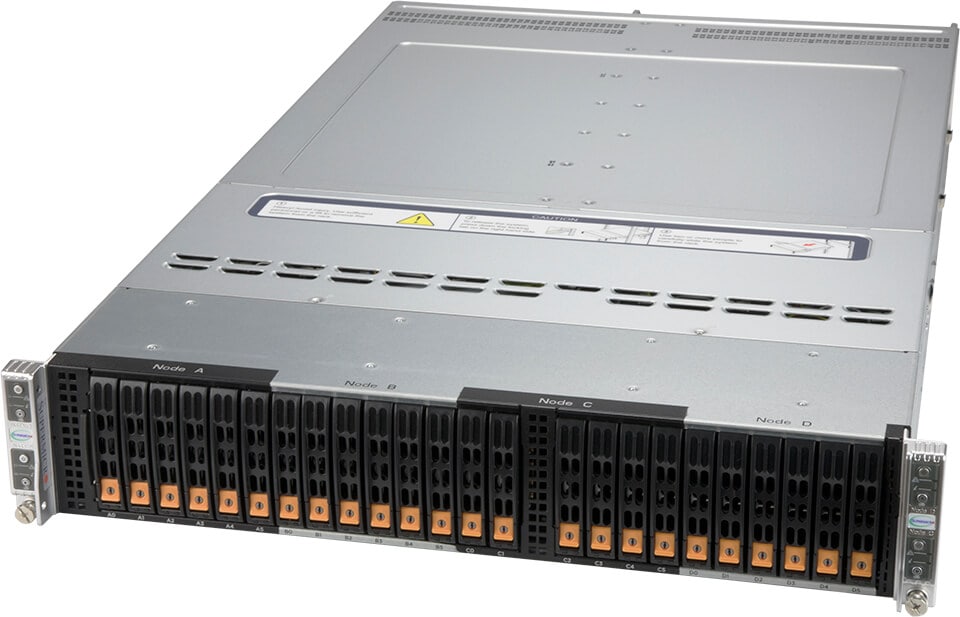

Supermicro SYS-220BT-HNTR | X12 BigTwin 2U 4-Node Rack Server, Dual 3rd Gen Xeon

Q: What is a BigTwin server and how does it differ from a standard rackmount server?
A: The BigTwin architecture packs four independent, hot-pluggable server nodes into a single 2U chassis, quadrupling compute density compared to traditional single-node servers. Each node operates independently with its own processors, memory, storage, and I/O, but shares cooling and power infrastructure for maximum efficiency. This design is ideal for hyperconverged deployments, scale-out workloads, and environments where floor space and power are at a premium.

Q: Can I mix different processor models or memory configurations across the four nodes?
A: Yes, each node in the SYS-220BT-HNTR operates independently, allowing you to configure different processor models, memory capacities, and storage layouts per node. This flexibility enables you to dedicate nodes to specific workloads or gradually upgrade compute resources over time without impacting the other nodes in the chassis.

Q: What networking options are available via the AIOM slot?
A: The AIOM (Advanced I/O Module) slot on each node is OCP 3.0 compliant and supports a wide range of add-in network cards, including 1GbE, 10GbE, 25GbE, and 100GbE options from various vendors. This provides flexible, high-speed networking tailored to your data centre fabric without consuming PCIe expansion slots, leaving those available for GPUs, storage controllers, or other accelerators.

Q: How does the shared power architecture work across the four nodes?
A: The SYS-220BT-HNTR uses 2600W redundant Titanium-level power supplies that are shared across all four nodes in the chassis. This shared power design maximizes efficiency and reduces waste, as the total power budget is dynamically allocated based on actual node demand rather than provisioning separate PSUs for each node. Redundancy ensures continuous operation even if one power supply fails.

Q: What is Intel Optane Persistent Memory and how does it benefit this platform?
A: Intel Optane Persistent Memory 200 Series slots (4 per node) allow you to expand total memory capacity beyond traditional DRAM limits, reaching up to 6TB per node when combined with 8x 256GB RDIMM modules. Optane PMem provides large-memory-footprint applications with a cost-effective way to keep massive datasets in-memory, accelerating databases, analytics, and virtualization workloads that require both high capacity and persistence.
