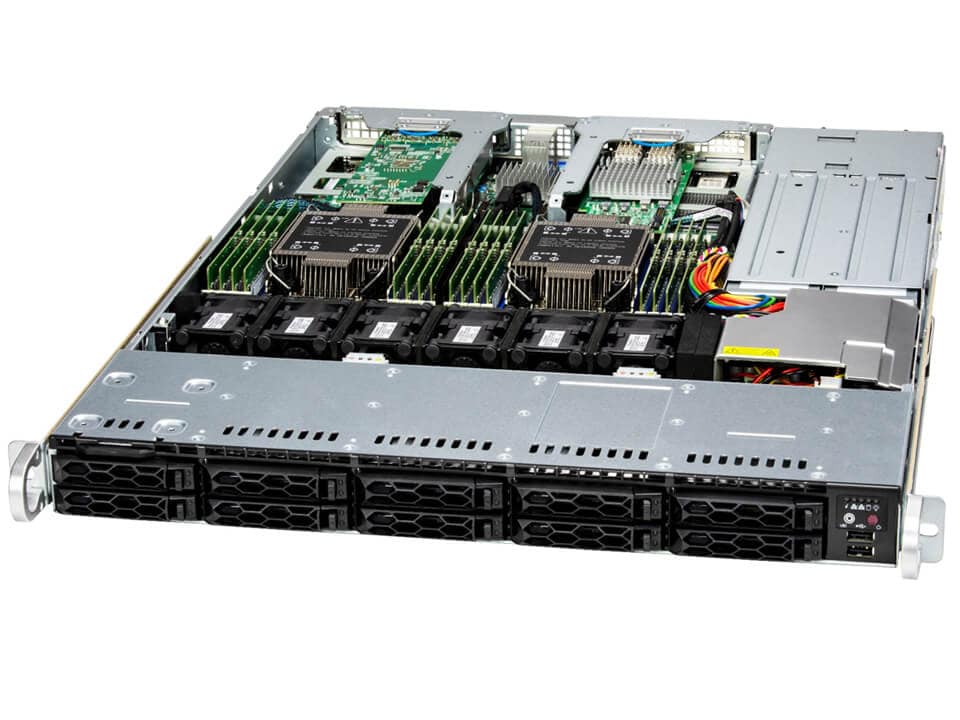

• Silver and black Supermicro SYS-121C-TN10R rack-mounted 1U dual Xeon server with 16 DDR5 ram and 10x 2.5 inch NVMe slots
1 1

Supermicro

Supermicro SYS-121C-TN10R | CloudDC 1U Dual Xeon Server, 16 DDR5, 10x 2.5" NVMe

SYS-121C-TN10R

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Supermicro SYS-121C-TN10R is a 1U CloudDC rack server optimized for data center virtualization, cloud computing, and enterprise applications. It supports dual 5th and 4th Gen Intel Xeon Scalable processors with up to 4TB DDR5 memory across 16 DIMM slots, and features 10 hot-swap 2.5-inch hybrid NVMe/SATA/SAS drive bays for flexible high-performance storage. Equipped with dual AIOM OCP 3.0 network slots, PCIe 5.0 expansion, and redundant 860W Titanium power supplies, this server delivers exceptional configurability and efficiency for demanding workloads.

Features

Dual 5th and 4th Gen Intel Xeon Scalable processor support with LGA-4677 sockets
- 16 DDR5 DIMM slots supporting up to 4TB DDR5-5600MHz ECC RDIMM
- 10 hot-swap 2.5-inch hybrid drive bays supporting NVMe, SATA, and SAS
- PCIe 5.0 expansion with 2x x16 FHHL slots and 2x x16 AIOM OCP 3.0 slots
- Dual M.2 NVMe slots (PCIe 5.0 x4) for boot or cache drives
- Tool-less design for easy PCIe and AIOM card installation
- Redundant 860W Titanium-level power supplies supporting AC and DC input
- Advanced thermal management with 6 counter-rotating PWM fans and air shrouds
- IPMI 2.0 with dedicated LAN port for remote management
- On-board SATA3 controller with RAID 0/1/5/10 support
- Flexible networking with dual AIOM OCP 3.0 slots supporting up to 100GbE
- Compact 1U form factor optimized for high-density data center deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U Rackmount
- Processors: Dual Socket E (LGA-4677) supporting 5th and 4th Gen Intel Xeon Scalable processors, up to 270W TDP
- Chipset: Intel C741
- Memory: 16 DDR5 DIMM slots supporting up to 4TB ECC RDIMM DDR5-5600MHz
- Storage: 10x 2.5-inch hot-swap hybrid NVMe/SATA/SAS drive bays
- Expansion: 2x PCIe 5.0 x16 FHHL slots, 2x PCIe 5.0 x4 NVMe M.2 slots
- Network: Dual AIOM (OCP 3.0) slots with NCSI, 1x dedicated IPMI LAN port
- Power Supply: 860W redundant Titanium level (100-240Vac and 200-240Vdc)
- Cooling: 6x counter-rotating 4cm PWM fans with optimal speed control, 2 air shrouds
- I/O: 1x VGA, 1x COM, 2x USB 3.0 (rear), 2x USB 2.0 (front)
- Dimensions: 437mm x 43mm x 597mm (17.2" x 1.7" x 23.5")
- Management: IPMI 2.0, KVM with dedicated LAN, SuperDoctor 5, Supermicro Update Manager

FAQs

Q: What processor generations does the SYS-121C-TN10R support?
A: The SYS-121C-TN10R supports both 5th Gen (Emerald Rapids) and 4th Gen (Sapphire Rapids) Intel Xeon Scalable processors in dual-socket configuration with LGA-4677 socket, supporting TDP up to 270W per processor.

Q: Can I mix NVMe, SATA, and SAS drives in the same system?
A: Yes, all 10 drive bays support hybrid NVMe/SATA/SAS connectivity. You can configure any combination of drive types to match your storage performance and capacity requirements. SAS support may require an additional controller card.

Q: What networking options are available with the AIOM slots?
A: The dual AIOM (OCP 3.0) slots provide flexible networking options allowing you to install 1GbE, 10GbE, 25GbE, or 100GbE AIOM network cards. The system also includes a dedicated IPMI LAN port for out-of-band management.

Q: What is the maximum memory capacity and speed?
A: The server supports up to 4TB of DDR5 ECC RDIMM memory across 16 DIMM slots, with support for DDR5-5600MHz (or DDR5-4800MHz depending on processor and memory configuration).

Q: What applications is this server best suited for?
A: The SYS-121C-TN10R is optimized for cloud computing, virtualization, web servers, enterprise applications, edge computing, CDN, DNS and gateway services, and data center infrastructure where dense compute, flexible storage, and efficient power consumption are priorities.
