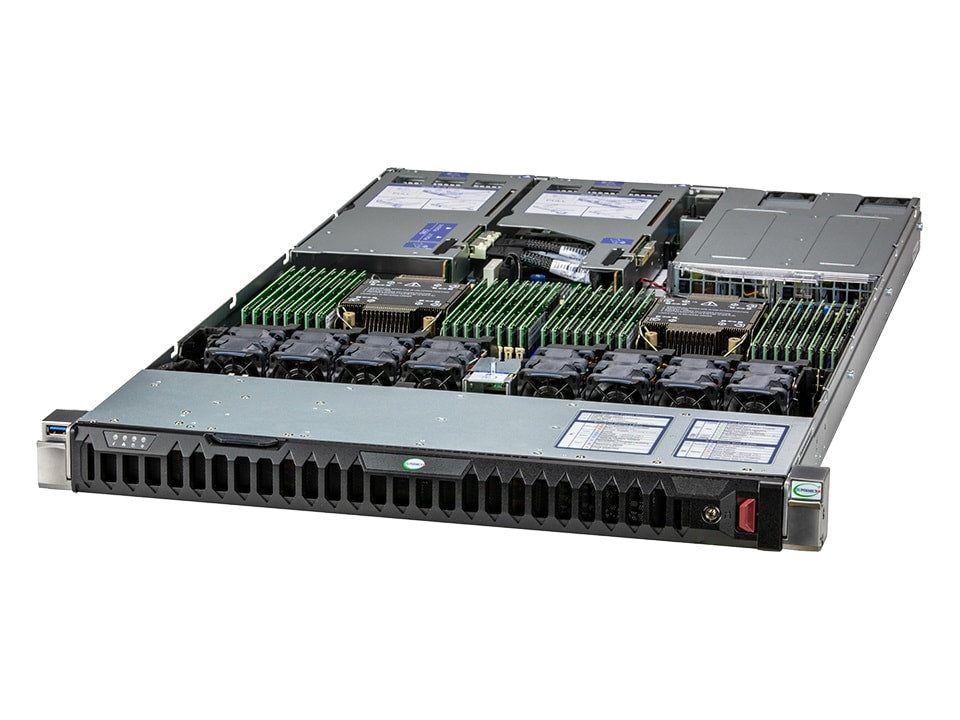

Supermicro SYS-120H-TNR | X12 Hyper Dual 3rd Gen Xeon Scalable 1U Server, 32 DIMM, 8x 2.5" Hot-Swap

Q: What processors does the SYS-120H-TNR support?
A: The SYS-120H-TNR supports dual 3rd Gen Intel Xeon Scalable processors (Ice Lake) in Socket P+ (LGA-4189) with TDP up to 270W. This includes the 83xx, 63xx, 53xx, and 4314 series processors with up to 40 cores and 80 threads per socket.

Q: Can this server be configured with both NVMe and SAS drives?
A: Yes, the 8 hot-swap 2.5-inch drive bays natively support both NVMe and SATA drives. SAS drive support requires an optional RAID controller add-on card. You can also add up to 4 additional hot-swap bays and use 2 internal M.2 slots for boot or caching.

Q: Does the SYS-120H-TNR support GPU accelerators?
A: Yes, this server includes 3 PCIe 4.0 x16 slots that support GPU and accelerator cards, making it ideal for AI inference, machine learning workloads, and compute-intensive applications that benefit from hardware acceleration.

Q: What is Intel Optane Persistent Memory and how much can this server support?
A: Intel Optane Persistent Memory 200 series provides high-capacity, high-speed, byte-addressable memory that bridges the gap between DRAM and storage. The SYS-120H-TNR can support up to 8TB of Optane PMem alone, or up to 12TB total when combined with DRAM, enabling massive in-memory datasets for databases and analytics.

Q: What networking options are available with the AIOM OCP 3.0 slot?
A: The AIOM (Additional I/O Module) slot is OCP NIC 3.0 compatible, allowing flexible networking configurations. You can add high-speed network adapters including 10GbE, 25GbE, 40GbE, or 100GbE options depending on your datacenter requirements, in addition to the onboard dual 10GbE ports.
