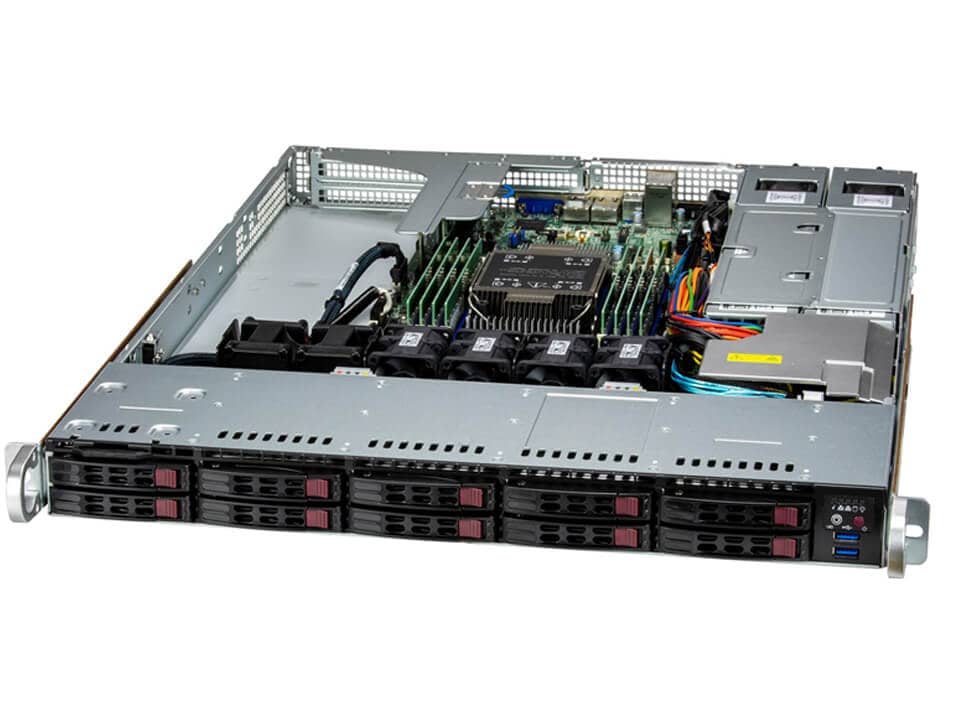

• Silver and black supermicro sys-111e-wr 1u rack server showing motherboard cooling fans and multiple nvme drive bays
1 1

Supermicro

Supermicro SYS-111E-WR | 1U Rack Server, 5th/4th Gen Xeon, 8x DDR5, 10x 2.5" NVMe

SYS-111E-WR

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SYS-111E-WR is a compact 1U rackmount server designed for virtualization, cloud computing, and database workloads. Powered by a single socket 4th or 5th Gen Intel Xeon Scalable processor with up to 52 cores, it supports up to 2TB DDR5 memory across 8 DIMM slots and features 10 hot-swap 2.5-inch drive bays with hybrid NVMe/SAS/SATA support. With 3 PCIe 5.0 expansion slots, redundant 860W Titanium power supplies, and dual 1GbE networking, this system delivers high-density performance for modern data centers and edge deployments.

Features

Single socket 4th/5th Gen Intel Xeon Scalable processor support with up to 52 cores and 300W TDP
- Up to 2TB DDR5 memory capacity across 8 DIMM slots with speeds up to 5600 MT/s
- 10x hot-swap 2.5-inch drive bays with hybrid NVMe/SAS/SATA support for flexible storage configurations
- PCIe 5.0 expansion with 2x x16 FHFL slots and 1x x8 LP slot for high-speed add-on cards and GPUs
- Supports up to 1 double-width or 2 single-width GPUs with top-loading tool-less expansion mechanism
- Dual 1GbE networking with Intel i210 controllers and dedicated IPMI management port
- Onboard SATA RAID 0/1/5/10 support for data protection
- IPMI 2.0 with KVM-over-LAN, virtual media, and Redfish API for comprehensive remote management
- Redundant hot-swap 860W 80 PLUS Titanium power supplies for high efficiency and uptime
- TPM 2.0 support and Silicon Root of Trust (NIST 800-193 compliant) for enhanced security
- Compact 1U form factor (23.5-inch depth) optimized for high-density data center deployments
- Advanced thermal management with PWM fan control and PC health monitoring for CPU, memory, and chassis
- M.2 NVMe slot (PCIe 3.0 x2) for dedicated boot drive
- SuperDOM support for flexible boot options and system resilience

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Processor: Single Socket E (LGA-4677) supports 4th/5th Gen Intel Xeon Scalable processors, up to 52 cores/104 threads, up to 300W TDP, up to 300MB cache
- Chipset: Intel C741
- Memory: 8x DDR5 DIMM slots, supports 3DS DDR5 RDIMM up to 5600 MT/s, maximum capacity 2TB
- Storage: 10x front hot-swap 2.5" drive bays supporting SATA3 (6Gbps), SAS3, and NVMe (optional all 10 hybrid Gen5 NVMe)
- RAID: Onboard SATA RAID 0/1/5/10 support
- Expansion Slots: 2x PCIe 5.0 x16 FHFL slots, 1x PCIe 5.0 x8 (in x16) LP slot; 1x PCIe 3.0 x2 M.2 NVMe (M-key, 2280/22110)
- Network: Dual 1GbE RJ45 LAN ports (Intel i210), 1x dedicated IPMI LAN port
- Management: IPMI 2.0 with KVM-over-LAN, virtual media, Redfish API, Supermicro Server Manager (SSM), SuperDoctor 5
- Power Supply: Redundant 860W 80 PLUS Titanium hot-swap power supplies
- I/O Ports: 4x USB 3.2 Gen 1 (2 front, 2 rear), 3x USB 2.0, 1x VGA, 2x COM ports
- Form Factor: 1U rackmount, dimensions 437mm x 43mm x 597mm (W x H x D) / 17.2" x 1.7" x 23.5
- Operating Temperature: 10°C to 35°C
- Cooling: 5x middle PWM 40x40x56mm fans, 1x optional AOC cooling fan, air shroud

FAQs

Q: What processors are compatible with the SYS-111E-WR?
A: The SYS-111E-WR supports single socket 4th and 5th Gen Intel Xeon Scalable processors (LGA-4677) with up to 52 cores, 104 threads, and 300W TDP, delivering high performance for virtualization, cloud computing, and database applications.

Q: Can this server support NVMe storage across all drive bays?
A: Yes, the SYS-111E-WR supports hybrid NVMe/SAS/SATA configurations. While it ships with SATA3 support standard, all 10 front hot-swap 2.5-inch drive bays can be optionally configured for Gen5 NVMe, providing maximum storage performance for demanding workloads.

Q: What GPU options are supported in this 1U chassis?
A: The server supports up to 1 double-width or 2 single-width GPUs via its PCIe 5.0 x16 FHFL slots. Compatible GPUs include NVIDIA T400, L4, A2, and A10. The top-loading expansion mechanism enables tool-less installation of double-width GPUs, making it suitable for entry-level GPU acceleration and AI inference.

Q: What remote management features are included?
A: The SYS-111E-WR includes comprehensive out-of-band management with IPMI 2.0, dedicated management LAN port, KVM-over-LAN, virtual media support, and Redfish API. It also supports Supermicro Server Manager (SSM), SuperDoctor 5 for health monitoring, and Supermicro Update Manager (SUM) for firmware updates.

Q: Is this server suitable for virtualization workloads?
A: Absolutely. With support for up to 52-core Xeon processors, 2TB of fast DDR5 memory, flexible NVMe/SATA storage, and PCIe 5.0 expansion, the SYS-111E-WR is optimized for virtualization, cloud computing, and high-density data center deployments where compute density and I/O performance are critical.
