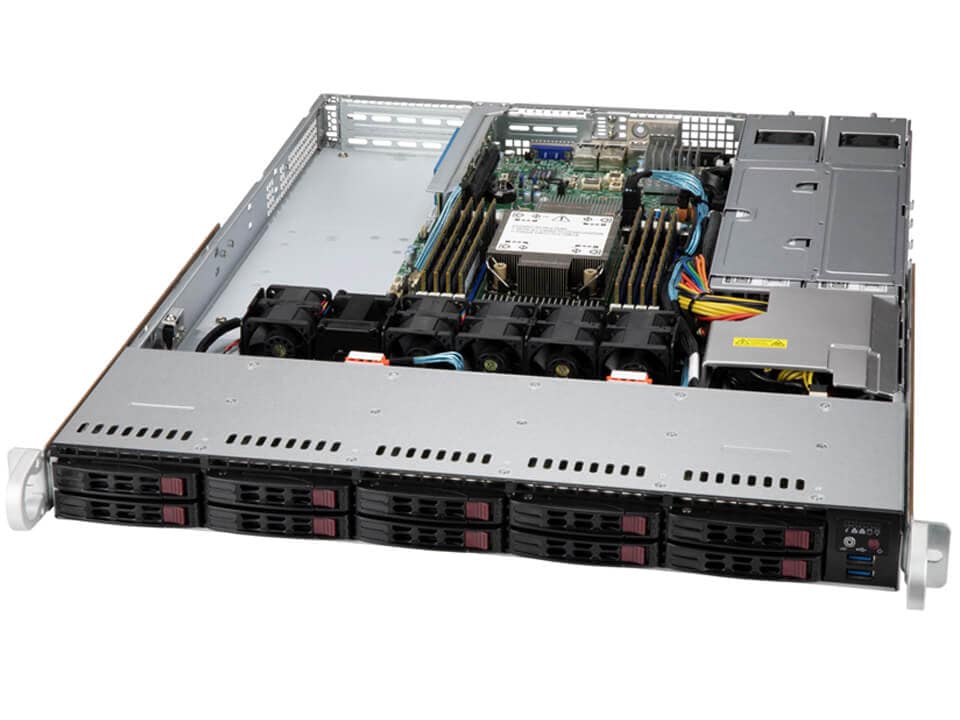

• Silver and black supermicro sys-110p-wr 1u server rack with multiple drive bays cooling fans and internal components visible
1 1

Supermicro

Supermicro SYS-110P-WR | X12 1U Server, 3rd Gen Xeon Scalable, 8 DIMM DDR4, 10x 2.5" Hot-Swap

SYS-110P-WR

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SYS-110P-WR is a compact 1U rackmount server designed for edge computing, virtualization, and enterprise workloads requiring single-socket performance. Built on the X12SPW-F motherboard with Intel C621A chipset, it supports 3rd Gen Intel Xeon Scalable processors up to 270W TDP and up to 2TB DDR4-3200 memory across 8 DIMM slots. With 10 hot-swap 2.5-inch drive bays, three PCIe 4.0 slots, dual Gigabit Ethernet, and redundant 750W power supplies, this barebone server delivers flexibility and reliability for cost-effective deployments.

Features

Single-socket 3rd Gen Intel Xeon Scalable processor support up to 270W TDP
- 8x DDR4 DIMM slots with DDR4-3200 support, maximum 2TB capacity
- Intel Optane Persistent Memory 200 Series compatibility for enhanced performance
- 10x hot-swap 2.5-inch drive bays with hybrid NVMe/SATA capability
- Intel C621A chipset with integrated SATA and NVMe controllers
- Hardware RAID 0/1/5/10 support for both SATA and NVMe (VROC key required for NVMe)
- Three PCIe 4.0 x16 expansion slots for flexible I/O and GPU options
- Dual Gigabit Ethernet with Intel I210-AT controller
- IPMI 2.0 with dedicated management port, KVM, and virtual media support
- Redundant 750W 80 PLUS Platinum power supplies for high availability
- Compact 1U form factor optimized for edge, cloud, and enterprise deployments
- Tool-less hot-swap drive access for simplified maintenance
- M.2 slots (2280/22110) for additional NVMe storage or boot devices
- Wide OS compatibility including VMware, Microsoft, Red Hat, SUSE, and Oracle Linux

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rackmount
- Processor: Single Socket LGA-4189 (Socket P+), supports 3rd Gen Intel Xeon Scalable processors, up to 40-core/80-thread, up to 270W TDP
- Chipset: Intel C621A
- Memory: 8x DDR4 DIMM slots, supports DDR4-3200 RDIMM/LRDIMM, maximum 2TB, Intel Optane Persistent Memory 200 Series compatible
- Storage: 10x 2.5-inch hot-swap SATA drive bays (4 bays support NVMe hybrid configuration with optional components)
- Storage Controller: Intel C621A controller, 6x SATA3 6Gbps ports, hardware RAID 0/1/5/10 support, NVMe RAID 0/1/5/10 (VROC key required)
- Expansion: 2x PCIe 4.0 x16 full-height full-length slots, 1x PCIe 4.0 x16 low-profile slot
- Networking: Dual 1GbE ports (Intel I210-AT controller), dedicated IPMI 2.0 LAN port for remote management
- Power Supply: Dual redundant 750W 80 PLUS Platinum power supplies
- Management: IPMI 2.0 with KVM and virtual media support, web interface, CLI, SNMP
- Motherboard: Super X12SPW-F (WIO form factor)
- Chassis: CSE-116TS-R706WBP4

FAQs

Q: What processors are compatible with the SYS-110P-WR?
A: The SYS-110P-WR supports single-socket 3rd Generation Intel Xeon Scalable processors (Ice Lake) with LGA-4189 socket, including Xeon Platinum, Gold, Silver, and Bronze models, up to 40 cores and 270W TDP with appropriate cooling.

Q: Can this server support NVMe drives?
A: Yes, 4 of the 10 hot-swap 2.5-inch drive bays can be configured to support NVMe drives in a hybrid configuration with optional components. The motherboard includes 4x PCIe 4.0 NVMe ports and M.2 slots (2280/22110) for additional NVMe storage expansion.

Q: What RAID configurations are supported?
A: The onboard Intel C621A controller supports hardware RAID 0, 1, 5, and 10 for SATA drives. NVMe RAID 0, 1, 5, and 10 is also supported but requires an Intel VROC hardware key.

Q: Is this server suitable for virtualization workloads?
A: Yes, the SYS-110P-WR is well-suited for virtualization with support for up to 2TB of DDR4-3200 memory, Intel Xeon Scalable processors with up to 40 cores, and compatibility with VMware ESXi, Citrix Hypervisor, Microsoft Windows Server, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server.

Q: What expansion options are available?
A: The server includes three PCIe 4.0 x16 slots (two full-height full-length, one low-profile), supporting network cards, RAID controllers, or a single-width GPU such as NVIDIA T1000 or A2. Additional M.2 slots provide NVMe expansion capability.
