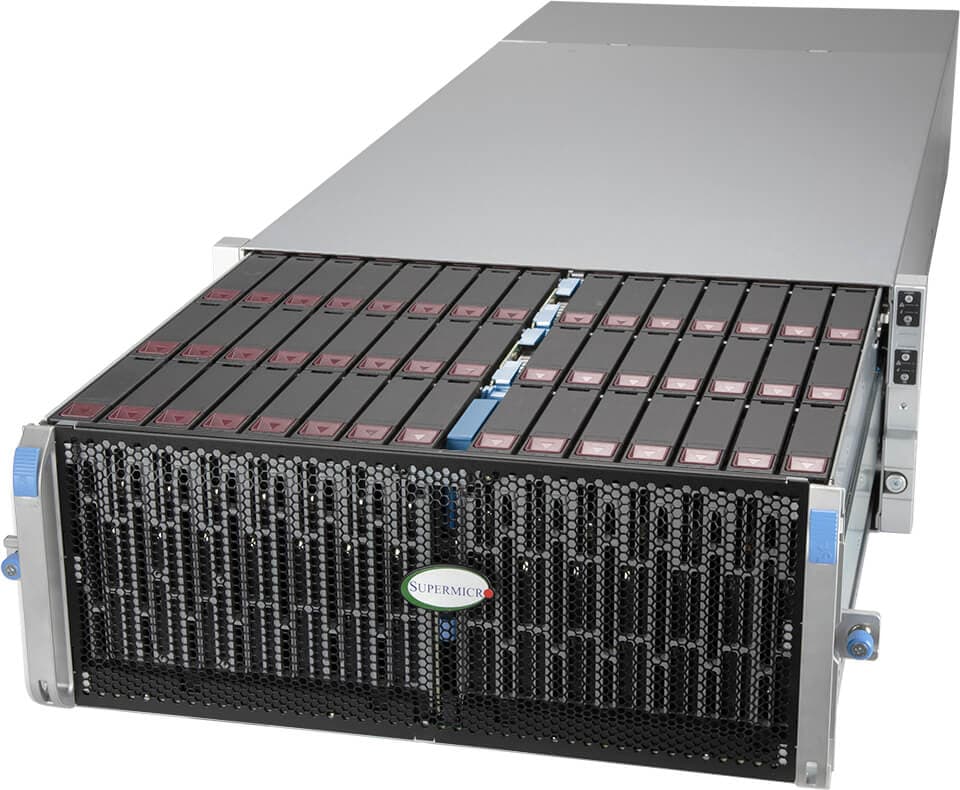

• Silver and black supermicro ssg-640sp-e1cr90 4u rack server with honeycomb grille and 90 top-load drive bays
1 1

Supermicro

Supermicro SSG-640SP-E1CR90 | 4U Rack Server, Dual Xeon Scalable, 90-Bay Top-Load

SSG-640SP-E1CR90

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SSG-640SP-E1CR90 is a high-capacity 4U storage server designed for big data, AI/ML workloads, and data lake applications. Supporting dual 3rd Gen Intel Xeon Scalable processors and up to 4TB DDR4 memory, this top-loading configuration delivers 90 hot-swap 3.5-inch SAS3/SATA3 drive bays, 2 fixed SATA SSDs, and 2 M.2 NVMe slots. Dual 10GbE networking, PCIe 4.0 expansion, and redundant 2600W Titanium-level power supplies ensure enterprise-grade performance and reliability.

Features

Dual 3rd Gen Intel Xeon Scalable processor support with up to 72 cores total
- Massive 90-bay top-loading hot-swap SAS3/SATA3 storage capacity
- PCIe 4.0 support with three x16 expansion slots for high-speed adapters
- Dual 10GbE networking with Intel X550 controller (RJ45)
- 2x M.2 NVMe slots supporting 2280 and 22110 form factors
- Tool-less top-loading drawer design for simplified drive maintenance
- Broadcom 3916/3616 SAS/SATA controller support with expander backplanes
- Redundant 2600W Titanium-level (96% efficiency) power supplies
- Hot-swap counter-rotating redundant cooling fans for optimal airflow
- IPMI 2.0 remote management with KVM over LAN and virtual media
- Compatible with Windows Server, Red Hat Enterprise Linux, and Oracle Linux
- Supports software-defined storage platforms including ZFS and Lustre
- Intel VROC support for NVMe RAID without hardware HBA
- Redfish API, Supermicro Server Manager (SSM), and SuperDoctor 5 support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 4U rackmount top-loading storage server
- Processor: Dual socket LGA-4189 for 3rd Gen Intel Xeon Scalable processors, up to 72 cores total
- Memory: 16x DDR4-3200 DIMM slots (LRDIMM/RDIMM), supports up to 4TB
- Storage: 90x 3.5-inch or 2.5-inch hot-swap SAS3/SATA3 drive bays, 2x fixed slim SATA SSD, 2x M.2 NVMe (2280/22110)
- Expansion: 3x PCIe 4.0 x16 half-height half-length slots
- Network: Dual 10GbE RJ45 (Intel X550 controller)
- Storage Controller: Broadcom 3916 or 3616 (SAS/SATA)
- Power Supply: Dual 2600W redundant, 80 PLUS Titanium (96% efficiency)
- Cooling: 6x 8cm hot-swap counter-rotating redundant PWM fans
- Management: IPMI 2.0, KVM over LAN, Media over LAN, Redfish API
- Dimensions (WxHxD): 17.6 x 7 x 42.1 inches

FAQs

Q: What processors does the SSG-640SP-E1CR90 support?
A: This server supports dual 3rd Generation Intel Xeon Scalable processors (Ice Lake-SP) in LGA-4189 sockets, providing up to 72 cores total across both CPUs for demanding storage and compute workloads.

Q: Can I mix 3.5-inch and 2.5-inch drives in the 90 bays?
A: Yes, the 90 hot-swap bays support both 3.5-inch and 2.5-inch SAS3 and SATA3 drives with tool-less brackets. You can configure the server with the appropriate drive mix for your capacity and performance requirements.

Q: What is the maximum memory capacity?
A: The system supports up to 4TB of DDR4-3200 memory across 16 DIMM slots using LRDIMM or RDIMM modules, ideal for memory-intensive big data analytics and AI/ML training workloads.

Q: What storage controllers are compatible with this system?
A: The SSG-640SP-E1CR90 supports Broadcom 3916 or 3616 SAS/SATA controllers. It is also compatible with software-defined storage platforms like ZFS and Lustre, and supports Intel VROC for NVMe RAID configurations.

Q: What makes the top-loading design beneficial?
A: The top-loading drawer design with tool-less drive brackets enables easy drive servicing and maintenance without removing the server from the rack, reducing downtime and simplifying high-density storage deployments.
