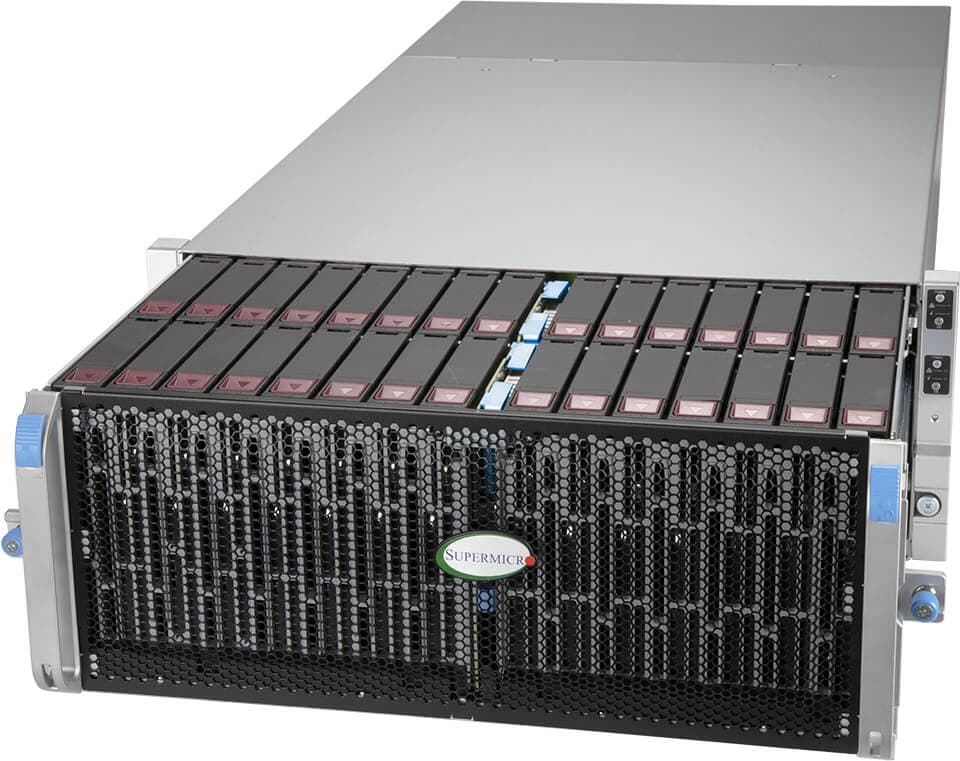

• Silver supermicro ssg-640sp-e1cr60 4u top-loading storage server with black perforated front panel and 60 drive bays
1 1

Supermicro

Supermicro SSG-640SP-E1CR60 | 4U Top-Loading Storage Server, Dual Xeon, 60x 3.5" SAS/SATA

SSG-640SP-E1CR60

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SSG-640SP-E1CR60 is a high-capacity 4U storage server designed for data-intensive workloads including big data analytics, HPC, AI/ML, and content repositories. It supports dual 3rd Gen Intel Xeon Scalable processors with up to 72 cores, 16 DDR4 DIMM slots for up to 4TB memory, and features 60 hot-swap 3.5-inch SAS3/SATA3 bays in a top-loading configuration. With dual 10GbE networking, PCIe 4.0 expansion, and redundant 2000W Titanium-level power supplies, this platform delivers enterprise-grade reliability and scalability for mission-critical storage environments.

Features

Dual 3rd Gen Intel Xeon Scalable processor support with up to 72 cores per system
- 60-bay top-loading storage architecture with tool-less drive brackets for easy maintenance
- PCIe 4.0 architecture for high-bandwidth storage and network expansion
- Dual 10GbE networking with Intel X550 controller
- Broadcom 3916/3616 SAS controller support for enterprise storage management
- IPMI 2.0 remote management with KVM and virtual media over LAN
- Hot-swap redundant counter-rotating PWM cooling fans
- Dual 2000W 80 PLUS Titanium (96% efficiency) redundant power supplies
- Support for SAS3/SATA3 drives with dual-ported SAS architecture for high availability
- M.2 NVMe and 2.5-inch NVMe support for high-performance boot and caching
- Compatible with Microsoft Windows Server 2019/2022, Red Hat Enterprise Linux, and Oracle Linux
- Tool-less design for drives and PCIe card installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 4U rackmount storage server
- Processors: Dual socket 3rd Gen Intel Xeon Scalable processors, up to 72 cores
- Memory: 16x DDR4-3200 DIMM slots (RDIMM/LRDIMM), up to 4TB capacity
- Storage Bays: 60x 3.5-inch/2.5-inch hot-swap SAS3/SATA3 top-loading drive bays
- Additional Storage: 2x fixed slim SATA SSD bays, 2x M.2 NVMe slots (2280/22110 form factor), 4x 2.5-inch NVMe bays (optional)
- Expansion Slots: 3x PCIe 4.0 x16 HHHL slots
- Network: Dual 10GbE RJ45 ports (Intel X550 controller), 1x dedicated IPMI 2.0 management port
- Storage Controller: Broadcom 3916 or 3616 SAS controller support
- Cooling: 6x 8cm hot-swap counter-rotating redundant PWM fans
- Power Supply: Dual 2000W redundant, 80 PLUS Titanium (96% efficiency)
- Management: IPMI 2.0, KVM over LAN, media over LAN

FAQs

Q: What type of drives does the SSG-640SP-E1CR60 support?
A: The system supports 60 hot-swap 3.5-inch or 2.5-inch SAS3 and SATA3 drives in the main top-loading bays. It also includes 2 fixed slim SATA SSD bays, 2 M.2 NVMe slots (2280/22110), and supports an additional 4x 2.5-inch NVMe drives with optional components.

Q: What is the maximum memory capacity for this server?
A: The SSG-640SP-E1CR60 supports up to 4TB of DDR4-3200 ECC memory across 16 DIMM slots, using RDIMM or LRDIMM modules. This provides ample capacity for virtualization, in-memory databases, and data-intensive applications.

Q: What workloads is this storage server designed for?
A: This platform is optimized for big data analytics, data lakes, HPC and AI/ML workloads, cloud service providers, financial services, healthcare image archives, content repositories, and government data protection applications requiring high-capacity storage with top-loading serviceability.

Q: Does this system support hardware RAID?
A: Yes, the SSG-640SP-E1CR60 supports hardware RAID through Broadcom 3916 or 3616 SAS controllers. It also supports software-defined storage platforms like ZFS and Lustre through industry-standard SAS controllers and expander infrastructure.

Q: What are the networking options for this server?
A: The system includes dual 10GbE RJ45 ports using the Intel X550 controller, plus a dedicated IPMI 2.0 management port. The 3 PCIe 4.0 x16 expansion slots allow for additional networking cards up to 100GbE or specialized storage controllers as needed.
