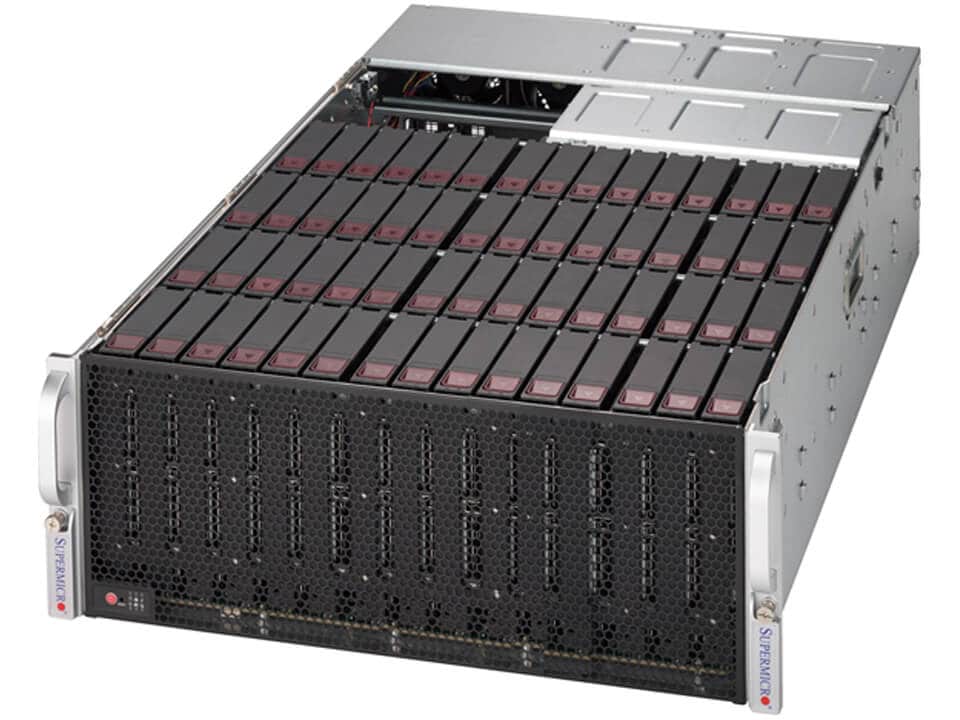

• Supermicro ssg-540p-e1ctr60l 4u top-loading storage server with silver chassis black front panel 60x 3.5 inch sas sata bays
1 1

Supermicro

Supermicro SSG-540P-E1CTR60L | 4U Top-Loading Storage Server, 60x 3.5" SAS/SATA

SSG-540P-E1CTR60L

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SSG-540P-E1CTR60L is a high-capacity 4U top-loading storage server designed for enterprise data centers requiring large-scale storage deployments. Supporting a single 3rd Gen Intel Xeon Scalable processor with up to 270W TDP and up to 3TB DDR4 memory across 8 DIMM slots, this system delivers reliable performance for database applications, backup storage, cold storage, and data warehousing. With 60 hot-swap 3.5-inch SAS3/SATA3 drive bays managed by Broadcom 3816 12Gb/s HBA controller, dual 10GBase-T LAN ports, and redundant 1600W 80 PLUS Titanium power supplies, it offers exceptional storage density and enterprise-grade reliability.

Features

Single socket 3rd Gen Intel Xeon Scalable processor support with up to 270W TDP
- Top-loading design for 60x 3.5-inch hot-swap SAS3/SATA3 drive bays enabling easy drive access and maintenance
- Up to 3TB DDR4-3200 memory capacity across 8 DIMM slots (RDIMM/LRDIMM/Intel DCPMM)
- Broadcom 3816 12Gb/s SAS3 HBA controller in IT mode for high-performance storage throughput
- Intel C621A chipset with onboard SATA3 and hardware RAID 0/1/5/10 support
- Dual 10GBase-T network ports via Intel X550 Ethernet controllers
- Additional 2 rear hot-swap SATA bays and optional 2 NVMe bays for cache or boot drives
- IPMI 2.0 remote management with dedicated LAN port, KVM, and virtual media capabilities
- M.2 and SuperDOM support for flexible boot device options
- Redundant 1600W 80 PLUS Titanium power supplies for maximum efficiency and reliability
- PCIe 4.0 support for high-bandwidth expansion cards
- Enterprise OS compatibility including Windows Server, Red Hat Enterprise Linux, and Oracle Linux
- Rackmount rail kit and cable management arm included
- 4U rackmount form factor optimized for high-density storage environments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 4U rackmount storage server
- Processor: Single Socket P+ (LGA-4189) supporting 3rd Gen Intel Xeon Scalable processors, up to 270W TDP
- Chipset: Intel C621A
- Memory: 8 x DIMM slots supporting up to 3TB DDR4-3200 RDIMM/LRDIMM/Intel DCPMM
- Storage Controller: Broadcom 3816 SAS3 12Gb/s HBA (IT mode), onboard SATA3 6Gb/s with RAID 0/1/5/10 support
- Drive Bays: 60x 3.5-inch hot-swap SAS3/SATA3 top-loading bays, plus 2x rear hot-swap SATA bays
- Expansion: M.2 support, 2x SuperDOM ports, optional 2x hot-plug NVMe bays for cache
- Network: 2x 10GBase-T RJ45 LAN ports (Intel X550), 1x dedicated RJ45 IPMI 2.0 LAN port
- Management: IPMI 2.0 with dedicated LAN, KVM, virtual media support
- Power Supply: Dual redundant 1600W 80 PLUS Titanium or 1000W options
- Motherboard: X12SPI-TF integrated
- PCIe: PCIe 4.0 support
- Operating System Support: Windows Server 2019/2022, Red Hat Enterprise Linux, Oracle Linux

FAQs

Q: What processor generation does the SSG-540P-E1CTR60L support?
A: The SSG-540P-E1CTR60L supports 3rd Generation Intel Xeon Scalable processors in a single Socket P+ (LGA-4189) configuration, with TDP support up to 270W.

Q: How many drive bays does this storage server provide?
A: This server features 60 hot-swap 3.5-inch SAS3/SATA3 top-loading drive bays in the main chassis, plus an additional 2 rear hot-swap SATA bays and optional 2 hot-plug NVMe bays for cache, providing exceptional storage density for large-scale deployments.

Q: What storage controller is included with this system?
A: The system includes a Broadcom 3816 12Gb/s SAS3 HBA controller operating in IT mode for JBOD configurations. The onboard Intel C621A chipset also provides SATA3 6Gb/s connectivity with hardware RAID 0/1/5/10 support.

Q: What network connectivity does the SSG-540P-E1CTR60L offer?
A: The server features dual 10GBase-T RJ45 LAN ports powered by Intel X550 Ethernet controllers for high-speed network connectivity, plus a dedicated RJ45 port for IPMI 2.0 remote management with KVM and virtual media support.

Q: What are typical use cases for this top-loading storage server?
A: The SSG-540P-E1CTR60L is ideally suited for database applications, backup storage, cold storage, data warehousing, archiving, and any enterprise application requiring massive storage capacity with top-loading accessibility for simplified drive maintenance in dense rack environments.
