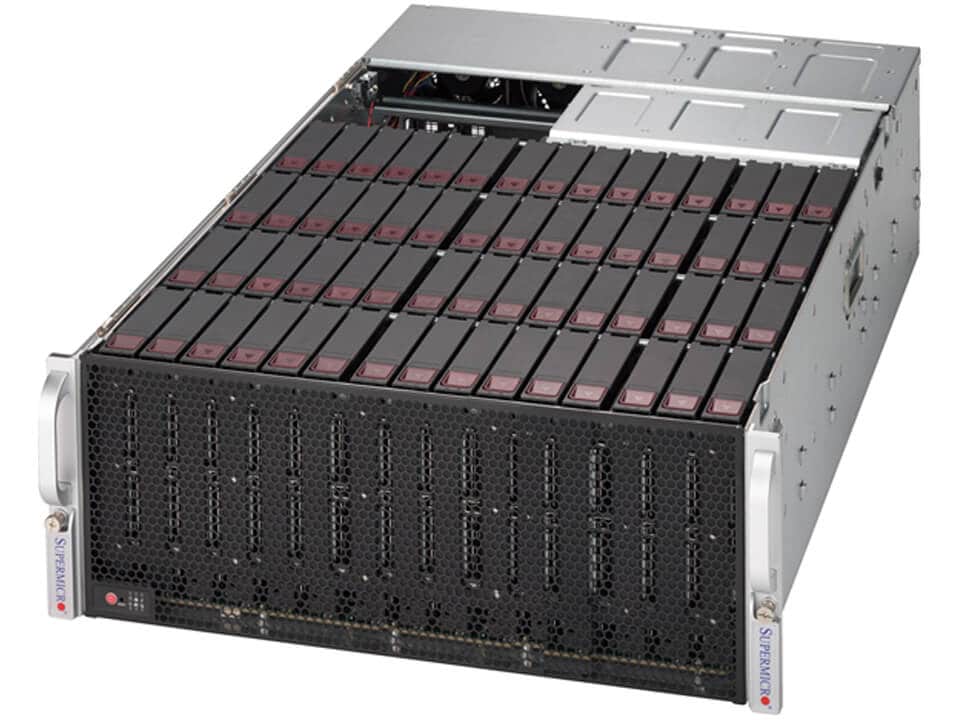

• Supermicro ssg-540p-e1ctr60h 4u rack server with silver chassis black front panel 60x 3.5 inch top-load sas sata bays 1600w
1 1

Supermicro

Supermicro SSG-540P-E1CTR60H | 4U Rack Server, 60x 3.5" Top-Load SAS/SATA, 1600W

SSG-540P-E1CTR60H

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SSG-540P-E1CTR60H is a high-capacity 4U rack-mounted storage server designed for data-intensive applications including backup, archiving, and database workloads. Featuring 60 top-loading hot-swap 3.5-inch SAS/SATA drive bays with Broadcom 3916 hardware RAID support, it supports a single 3rd Gen Intel Xeon Scalable processor and up to 2TB DDR4 memory across 8 DIMM slots. Equipped with dual 10GbE networking, PCIe 4.0 expansion, and redundant 1600W Titanium power supplies, this platform delivers enterprise-grade storage density and reliability.

Features

Single-socket 3rd Gen Intel Xeon Scalable processor platform with LGA-4189 socket
- 60x top-loading hot-swap 3.5-inch/2.5-inch SAS3/SATA3 drive bays for high-density storage
- Broadcom 3916 SAS3 12Gb/s RAID controller with 8GB cache and RAID 0/1/5/6/10/50/60 support
- Up to 2TB DDR4-3200 ECC memory across 8 DIMM slots with RDIMM/LRDIMM/DCPMM support
- PCIe 4.0 expansion: 2x x16 and 2x x8 low-profile slots for network, storage, or GPU cards
- Dual 10GBase-T Ethernet via Intel X550 controller for high-speed network connectivity
- IPMI 2.0 with dedicated management port, KVM-over-IP, and remote virtual media support
- Redundant 1600W 80 PLUS Titanium power supplies for energy efficiency and uptime
- Hot-swap 8cm redundant PWM fan design for efficient thermal management
- Additional rear storage: 2x hot-swap 2.5-inch SATA bays and optional 2x NVMe bays for caching
- Onboard M.2 slot for boot drive or additional fast storage
- 4U rackmount form factor with rail kit and cable management arm
- Optimized for database, backup storage, cold storage, data warehousing, and archiving workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 4U rackmount barebone server
- Processor: Single Socket P+ (LGA-4189) supporting 3rd Gen Intel Xeon Scalable processors, up to 270W TDP
- Chipset: Intel C621A
- Memory: 8x DDR4-3200 DIMM slots; supports RDIMM/LRDIMM/Intel DCPMM; up to 2TB maximum capacity
- Storage Bays: 60x top-loading hot-swap 3.5" or 2.5" SAS3/SATA3 drive bays; 2x rear hot-swap 2.5" SATA bays; 1x M.2 NVMe/SATA onboard; optional 2x rear hot-swap 2.5" SATA3/NVMe
- RAID: SAS3 (12Gb/s) via Broadcom 3916 controller with 8GB cache; supports RAID 0, 1, 5, 6, 10, 50, 60; onboard SATA3 (6Gb/s) via C621A chipset supports RAID 0, 1, 5, 10
- Network: Dual Intel Ethernet Controller X550 with 2x 10GBase-T RJ45 ports; 1x dedicated RJ45 IPMI 2.0 port
- Expansion: 2x PCIe 4.0 x16 low-profile slots; 2x PCIe 4.0 x8 low-profile slots
- Power Supply: Redundant 1600W 80 PLUS Titanium Level power supplies
- Cooling: 5x hot-swap 8cm redundant PWM fans
- Management: IPMI 2.0 with dedicated LAN, KVM, and remote virtual media support

FAQs

Q: What type of drives can be installed in this server?
A: The SSG-540P-E1CTR60H supports both 3.5-inch and 2.5-inch SAS3 and SATA3 drives in the 60 top-loading bays. It also includes 2 rear hot-swap 2.5-inch SATA bays, onboard M.2 support, and optional rear NVMe bays for caching or high-performance applications.

Q: What RAID levels are available on this system?
A: The Broadcom 3916 SAS controller provides hardware RAID 0, 1, 5, 6, 10, 50, and 60 support with 8GB cache memory. The onboard SATA controller via the Intel C621A chipset also supports RAID 0, 1, 5, and 10. CacheVault protection is available as an optional upgrade.

Q: What processors are compatible with this server?
A: This server supports single-socket 3rd Generation Intel Xeon Scalable processors using the LGA-4189 socket, with TDP support up to 270W. It is designed for high-performance storage and database applications requiring single-socket compute with massive storage capacity.

Q: What is the maximum memory capacity?
A: The system supports up to 2TB of DDR4-3200 memory across 8 DIMM slots. It is compatible with RDIMM, LRDIMM, and Intel Data Center Persistent Memory Modules (DCPMM) for flexible memory configurations.

Q: What networking options are included?
A: The server includes dual 10GBase-T Ethernet ports via the Intel X550 controller for high-speed data transfer. A dedicated RJ45 management port with IPMI 2.0 provides out-of-band remote management, KVM access, and virtual media mounting capabilities.
