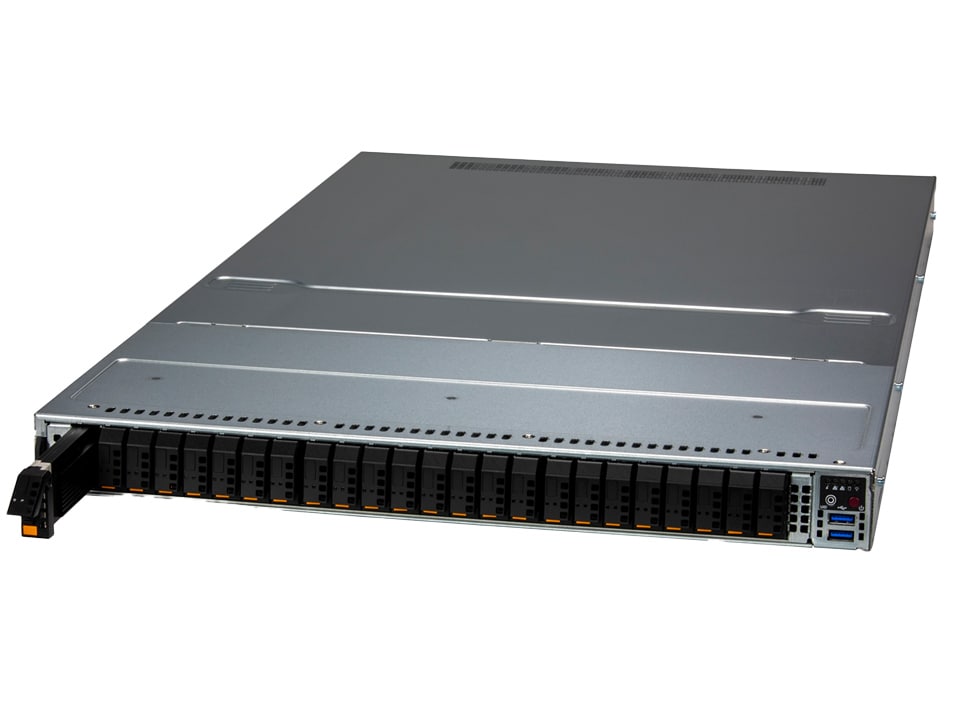

• Silver metal supermicro ssg-121e-nes24r server rack with 24 black e1.s nvme bays and usb ports front panel
1 1

Supermicro

Supermicro SSG-121E-NES24R | X13 1U All-Flash Storage Server, Dual Xeon, 8TB DDR5, 24x E1.S NVMe

SSG-121E-NES24R

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SSG-121E-NES24R is a high-density 1U all-flash storage server designed for software-defined storage, data-intensive HPC, and NVMe over Fabrics deployments. Supporting dual 5th/4th Gen Intel Xeon Scalable processors and up to 8TB of DDR5-5600 ECC memory across 32 DIMM slots, it delivers exceptional compute and memory bandwidth. The front-loading design accommodates 24 hot-swap E1.S NVMe drives with PCIe 5.0 connectivity, maximizing storage density and throughput in a compact form factor.

Features

PCIe 5.0 support for maximum I/O bandwidth and future-proof expansion
- Direct-attached E1.S NVMe backplane for optimal thermal performance and low latency
- DDR5-5600 ECC memory with support for Intel Optane PMem 300 Series
- Compute Express Link (CXL) 1.1 support for enhanced memory and accelerator connectivity
- Intel Virtual RAID on CPU (VROC) support for software-based NVMe RAID configurations
- Redundant 80 PLUS Titanium power supplies for maximum efficiency and uptime
- Hot-swap drive bays for maintenance without system downtime
- IPMI 2.0 with dedicated management port for remote administration and monitoring
- Two PCIe 5.0 x16 expansion slots for additional accelerators or network cards
- OCP 3.0 compliant AIOM slots for standardized, flexible networking options
- Front-loading all-flash design for easy serviceability and cable management
- Optimized for hyperscale deployments requiring maximum storage density per rack unit

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U Rackmount (438.4 x 43.6 x 773.25mm)
- Processors: Dual Socket E (LGA-4677) supporting 5th/4th Gen Intel Xeon Scalable processors, up to 270W TDP
- Chipset: Intel C741
- Memory: 32 DIMM slots (2DPC), up to 8TB capacity with DDR5-5600 ECC RDIMM/LRDIMM
- Storage: 24x hot-swap E1.S (9.5mm or 15mm) NVMe drive bays with PCIe 5.0 x4 per drive
- Expansion Slots: 2x PCIe 5.0 x16 slots, 2x AIOM connectors (OCP 3.0 SFF compliant)
- Additional Storage: 2x M.2 slots (PCIe 3.0, 2280/22110 form factor)
- Power Supply: Redundant 2000W 80 PLUS Titanium rated power supplies
- Management: IPMI 2.0 with dedicated RJ45 port, KVM, remote media support
- I/O: 2x USB 3.0 front, 2x USB 3.0 rear, VGA port

FAQs

Q: What processors does the SSG-121E-NES24R support?
A: The system supports dual Socket E (LGA-4677) 5th and 4th Generation Intel Xeon Scalable processors with TDP up to 270W, providing powerful processing for data-intensive workloads and HPC applications.

Q: What is the maximum memory capacity?
A: The server supports up to 8TB of DDR5-5600 ECC memory across 32 DIMM slots (2 DIMMs per channel), using 256GB 3DS RDIMM modules. It also supports LRDIMM and Intel Optane PMem 300 Series.

Q: What storage drives are compatible with this system?
A: The SSG-121E-NES24R supports 24 hot-swap E1.S NVMe drives in either 9.5mm or 15mm heights, with PCIe 5.0 x4 connectivity per drive. Additionally, two M.2 slots (2280/22110) are available for boot drives or caching.

Q: What networking options are available?
A: The system features two AIOM (Add-In OCP Module) slots compliant with OCP 3.0 SFF standard, allowing flexible networking options including 1GbE, 10GbE, 25GbE, or higher-speed network adapters depending on configuration.

Q: What are the typical use cases for this storage server?
A: The SSG-121E-NES24R is optimized for software-defined storage, NVMe over Fabrics solutions, in-memory computing, data-intensive HPC, private and hybrid cloud deployments, and high-performance database applications requiring maximum storage density and throughput.
