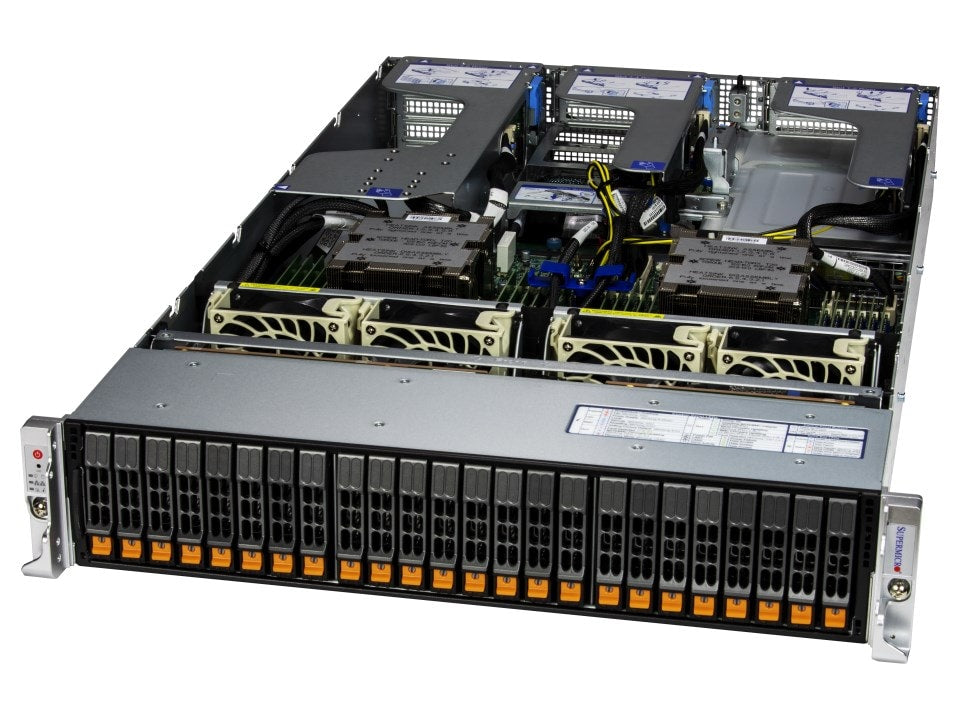

Supermicro AS-2125HS-TNR | Hyper 2U Dual AMD EPYC Server, 24x 2.5" NVMe/SAS/SATA, Up to 6TB DDR5

Q: What processors are supported by the AS-2125HS-TNR?
A: This server supports dual AMD EPYC 9004 Series processors (Genoa, Genoa-X, Bergamo) out of the box. AMD EPYC 9005 Series processors are also supported with motherboard board revision 2.xx or higher, offering drop-in compatibility for future upgrades.

Q: How many GPUs can this server accommodate?
A: The AS-2125HS-TNR can support up to 3 double-width GPUs when configured with the appropriate PCIe slot layout. The flexible PCIe 5.0 expansion allows configurations from 4x PCIe 5.0 x16 slots to 8x PCIe 5.0 x8 slots depending on your GPU and expansion card requirements.

Q: What storage configurations are available?
A: The system features 24 hot-swap 2.5-inch drive bays that support NVMe, SAS, or SATA drives (note that NVMe and SAS support may require additional controllers or cables). Two M.2 PCIe 3.0 NVMe slots are also available for boot drives or caching in 2280 or 22110 form factors.

Q: What is the maximum memory capacity?
A: The server supports up to 6TB of DDR5 memory across 24 DIMM slots using RDIMM modules at speeds up to DDR5-6400. This high memory capacity makes it ideal for virtualization, in-memory databases, and large-scale data analytics workloads.

Q: What networking options are available?
A: The AS-2125HS-TNR includes one AIOM slot compatible with OCP NIC 3.0 mezzanine cards for flexible high-speed networking. A dedicated 1GbE RJ45 port provides out-of-band IPMI 2.0 management with KVM and remote media capabilities. Network cards are sold separately and can be configured to your requirements.
