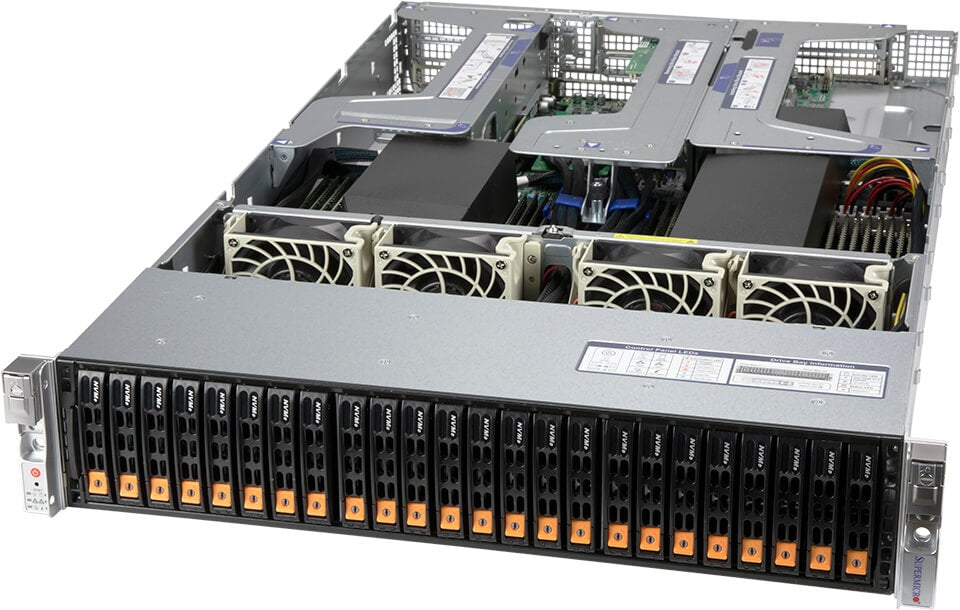

• Silver and black supermicro as-2124us-tnrp server rack with 24 nvme bays and visible cooling fans and components
1 1

Supermicro

Supermicro AS-2124US-TNRP | H12 Ultra 2U Dual AMD EPYC Server, 24x NVMe, 32 DIMM

AS-2124US-TNRP

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Supermicro AS-2124US-TNRP is a high-density 2U rackmount server built on the H12 platform, supporting dual AMD EPYC 7002/7003 series processors with up to 64 cores per socket. Designed for all-flash NVMe deployments, it features 24 hot-swap 2.5-inch U.2 NVMe drive bays with hybrid backplane support for SAS/SATA when configured with optional controllers. With 32 DIMM slots supporting up to 8TB of DDR4-3200 ECC registered memory, quad 10GbE networking, PCIe 4.0 expansion, and redundant 1600W Titanium-level power supplies, this system delivers exceptional performance for virtualization, cloud computing, hyperconverged infrastructure, and enterprise storage workloads.

Features

Dual AMD EPYC 7002/7003 series processors with up to 128 cores and 256 threads total
- 24x hot-swap 2.5-inch U.2 NVMe Gen 4 drive bays with all-hybrid direct-attached backplane
- Optional SAS/SATA drive support via add-on controller for mixed storage configurations
- 32 DIMM slots supporting up to 8TB DDR4-3200MHz ECC memory with 8-channel architecture
- PCIe 4.0 expansion architecture with riser card design for high-bandwidth devices
- Intel X710-TM4 quad 10Gb Ethernet with dual RJ45 and dual SFP+ ports
- IPMI 2.0 with KVM over IP, remote console, and virtual media support via dedicated management port
- Software Out-of-Band Management license included for advanced BIOS-level remote management
- Dual 1600W redundant power supplies with 80 PLUS Titanium Level efficiency
- Hot-swap cooling with four heavy-duty fans for optimal thermal management
- Support for RDIMM, LRDIMM, 3DS, and NVDIMM memory technologies
- ASPEED AST2500 Baseboard Management Controller for comprehensive system monitoring
- Optional M.2 SSD support via add-on card for boot drives or caching
- Rackmount rail kit included for standard 19-inch rack installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rackmount server (3.5-inch height, 17.2-inch width, 28.46-inch depth)
- Processors: Dual AMD EPYC 7002/7003 series, Socket SP3, up to 64 cores per CPU, TDP up to 280W
- Memory: 32x DIMM slots, up to 8TB DDR4-3200MHz ECC Registered/Load-Reduced SDRAM, 8-channel per CPU
- Storage: 24x hot-swap 2.5-inch U.2 NVMe Gen 4 drive bays, hybrid backplane supports SAS/SATA with optional controller
- Networking: Quad 10Gb Ethernet via Intel X710-TM4 (2x 10GBASE-T RJ45, 2x 10G SFP+)
- Expansion: 1x PCIe 4.0 x16 full-height slot (9.5-inch length) when all 24 NVMe bays populated
- Management: IPMI 2.0 with KVM, dedicated management LAN port, ASPEED AST2500 BMC, Software OOB license included
- Power: Dual 1600W redundant power supplies, 80 PLUS Titanium Level (96% efficiency), 90-264V AC input
- Cooling: 4x heavy-duty hot-swap fans
- Dimensions: 89mm (H) x 437mm (W) x 723mm (D), Net weight 17.7 kg (39 lbs)

FAQs

Q: What processors are supported by the AS-2124US-TNRP?
A: This server supports dual AMD EPYC 7002 and 7003 series processors in Socket SP3, with up to 64 cores per socket and TDP up to 280W. EPYC 7003 series processors require BIOS version 2.0 or newer, and 7003 processors with AMD 3D V-Cache require BIOS 2.3 or newer.

Q: Can this server support both NVMe and SAS/SATA drives?
A: Yes, the system features a hybrid all-NVMe direct-attached backplane supporting 24x 2.5-inch U.2 NVMe Gen 4 drives by default. With an optional SAS controller kit, the backplane can alternatively support SAS or SATA drives, providing flexibility for different storage requirements.

Q: How much memory can be installed in this server?
A: The AS-2124US-TNRP supports up to 8TB of DDR4-3200MHz ECC memory across 32 DIMM slots, utilizing 8-channel memory architecture per processor. It supports Registered DIMM, Load-Reduced DIMM, 3DS variants, and NVDIMM memory modules.

Q: What networking options are available?
A: The server includes integrated quad 10Gb Ethernet via Intel X710-TM4 controller, providing 2x 10GBASE-T RJ45 ports and 2x 10G SFP+ ports. A dedicated RJ45 port is provided for IPMI 2.0 remote management with KVM and virtual media capabilities.

Q: What are the typical use cases for this server?
A: The AS-2124US-TNRP is optimized for all-flash storage applications, virtualization platforms, cloud computing infrastructure, hyperconverged storage deployments, and high-performance database workloads requiring fast NVMe storage, high memory capacity, and multi-core processing power.
