Supermicro AS-2124BT-HNTR | BigTwin 2U 4-Node Server, Dual EPYC, 2200W Titanium
SKU:AS-2124BT-HNTR
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

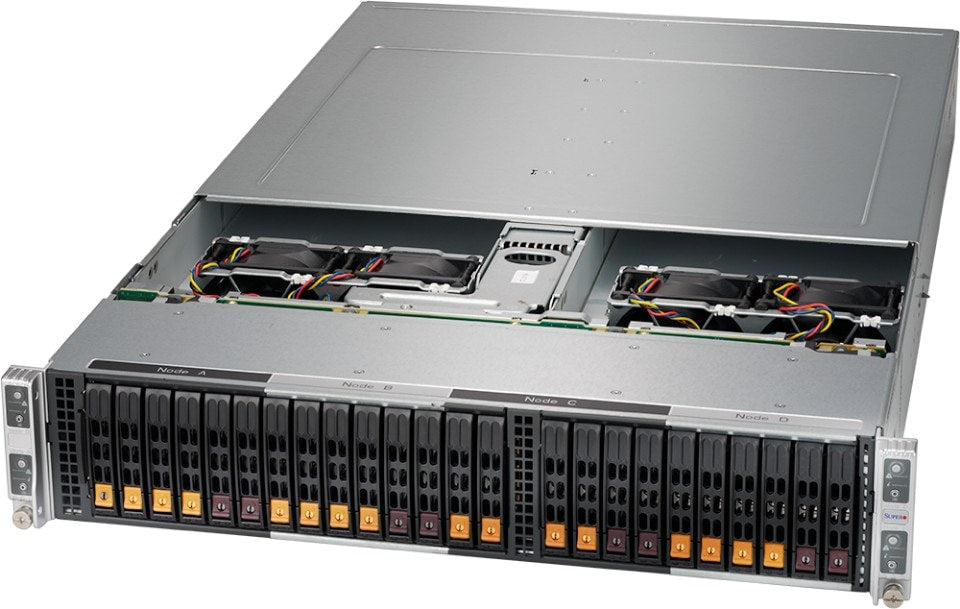

The BigTwin AS-2124BT-HNTR is a 2U multi-node rack server that packs four hot-pluggable nodes into a single chassis. Each node carries dual AMD EPYC 7002 or 7003 series processors, making it well suited to high-performance computing, virtualised and hyper-converged infrastructure, big data analytics, AI and machine learning workloads, software-defined storage and hyperscale data centres.
Each node is built on a Super H12DST-B motherboard and supports up to 64 cores per CPU at up to 225W TDP, with up to 4TB of 3200MT/s ECC DDR4 memory. Storage per node is six 2.5-inch hot-swap bays, either four NVMe plus two SATA3 or six SATA3, giving 24 bays across the chassis. Expansion per node includes two PCIe 4.0 x16 low-profile slots, one SIOM card slot for flexible networking, and one M.2 slot. The chassis shares redundant 2200W Titanium Level (96%) power supplies and four 80mm PWM fans across all nodes, and a Software Out-of-Band Management licence (SFT-OOB-LIC) is included.
EPYC 7003 support requires BIOS 2.0 or newer. Networking is provided through SIOM cards, and each node has IPMI 2.0 with a dedicated LAN port and KVM-over-LAN. An operating system is not included.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Four hot-pluggable dual-socket nodes in a 2U chassis for high compute density
- Up to 8 CPUs and 16TB of memory per 2U chassis
- PCIe 4.0 support and AMD EPYC 7003 drop-in support with BIOS 2.0 or newer
- Flexible networking through SIOM cards
- Shared redundant Titanium Level (96%) power supplies and shared cooling to reduce total cost of ownership
- Integrated IPMI 2.0 with KVM-over-LAN and a dedicated management port per node
- Hot-swap 2.5-inch bays with NVMe and SATA3 options on every node
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2U rackmount, 4 hot-pluggable nodes
- Motherboard: Super H12DST-B (per node)
- Processor (per node): Dual Socket SP3 AMD EPYC 7002/7003 Series
- CPU support: up to 64 cores per CPU, up to 225W TDP air-cooled
- EPYC 7003 support: requires BIOS 2.0 or newer
- Memory (per node): up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM, 1.2V
- Memory slots (per node): 16 DIMMs with 2 CPUs, 8 DIMMs with 1 CPU
- Drive bays (per node): 6 x 2.5" hot-swap, 4 NVMe/SATA3 plus 2 SATA3, or 6 SATA3
- Total drive bays: 24 x 2.5" hot-swap
- M.2 (per node): 1 x SATA/PCIe 3.0 x4, 2280/22110, M-key
- Expansion (per node): 2 x PCIe 4.0 x16 low-profile, 1 x SIOM card slot
- Network: 1 x RJ45 1GbE dedicated BMC LAN per node, networking via SIOM card
- Management: IPMI 2.0, virtual media over LAN, KVM-over-LAN
- BMC: ASPEED AST2500
- Out-of-band licence: Software Out-of-Band Management (SFT-OOB-LIC) included
- Cooling: 4 x 80mm heavy-duty PWM fans
- Power supply: 2 x 2200W redundant, PMBus, Titanium Level (96%)
- PSU output steps: 1200W / 1800W / 1980W / 2090W / 2200W
- Dimensions (H x W x D): 88 x 438-449 x 724-730 mm
- Weight: 24.7 kg net, 38.6 kg gross
- Colour: Black
- Operating temperature: 10 to 30 C
FAQs
Q: Does this server need a software licence for out-of-band management?
A: No. A Software Out-of-Band Management licence (SFT-OOB-LIC) is included for out-of-band BIOS management, and no other subscription is needed. An operating system is not included.
Q: Which processors does each node support?
A: Each node supports dual SP3 AMD EPYC 7002 or 7003 series processors, up to 64 cores per CPU and 225W TDP air-cooled. EPYC 7003 processors require BIOS 2.0 or newer.
Q: What power supplies does the chassis use?
A: It uses two 2200W redundant hot-swap power supplies with PMBus, rated 80 PLUS Titanium Level (96%). They are shared across all four nodes.
Q: How is networking provided on each node?
A: Each node has a dedicated 1GbE RJ45 BMC LAN port. Data networking is added through a SIOM card slot, which must be bundled with a network card, and Ethernet or InfiniBand SIOM and AIOM card options are available.
Q: How many drives can each node hold?
A: Each node has six 2.5-inch hot-swap bays, configured as four NVMe plus two SATA3 or as six SATA3, for 24 bays across the chassis. Each node also has one M.2 slot.
