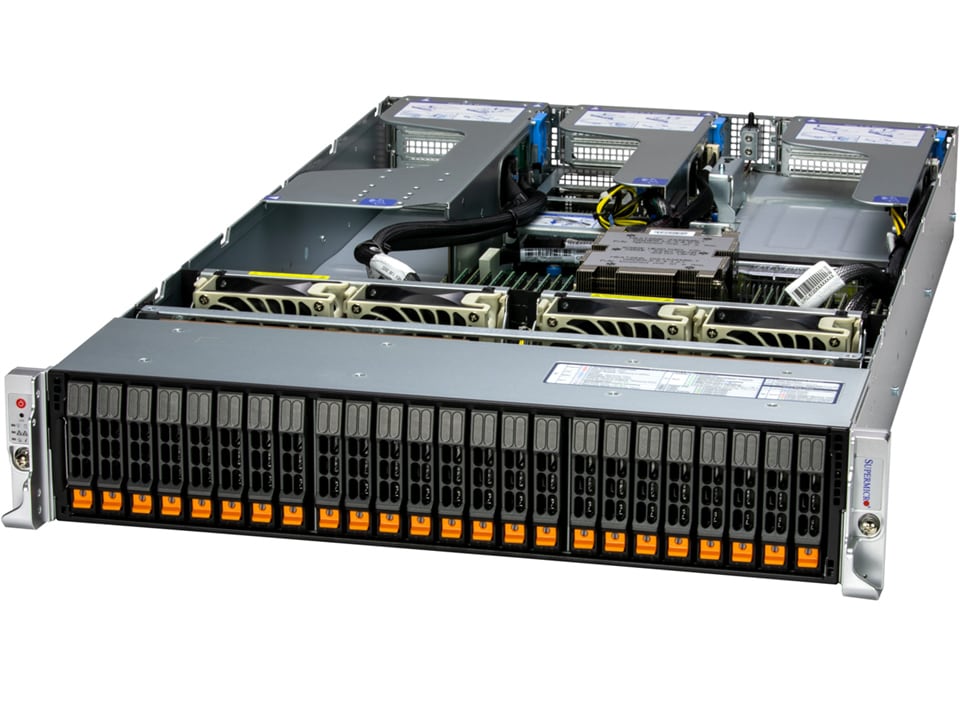

Supermicro AS-2115HS-TNR | Hyper 2U Rack Server, 24x 2.5" NVMe/SAS/SATA, 24 DDR5

AS-2115HS-TNR

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro AS-2115HS-TNR is a 2U Hyper rackmount server designed for virtualization, AI inference, and cloud computing workloads. Powered by a single AMD EPYC 9004 or 9005 series processor with up to 128 cores, it supports up to 6TB DDR5 memory across 24 DIMM slots and features 24 hot-swap 2.5-inch drive bays for NVMe, SAS, or SATA storage. With flexible PCIe 5.0 expansion options, AIOM OCP 3.0 networking, and dual 1600W Titanium-level power supplies, this platform delivers exceptional performance and scalability for enterprise and data center environments.

Features

Single-socket AMD EPYC 9004/9005 series processor support with up to 128 cores and 320 threads
- AMD 3D V-Cache technology compatibility for enhanced L3 cache performance
- 24x DDR5 DIMM slots supporting up to 6TB memory with ECC and RDIMM support
- 24x hot-swap 2.5-inch hybrid drive bays supporting NVMe, SAS, and SATA drives simultaneously
- 2x M.2 PCIe 3.0 NVMe slots for boot drives or caching
- Flexible PCIe 5.0 expansion with multiple slot configurations based on workload requirements
- OCP NIC 3.0 compliant AIOM slot for high-speed networking up to 200GbE
- PCIe 5.0 infrastructure for maximum bandwidth to storage, networking, and accelerators
- ASPEED AST2600 BMC with IPMI 2.0 for comprehensive out-of-band management
- Tool-less chassis design for simplified serviceability and reduced maintenance time
- Dual redundant 1600W 80 PLUS Titanium-level power supplies for energy efficiency
- GPU acceleration support for AI inference and machine learning workloads
- Hot-swap storage and power components for high availability deployments
- Front and rear I/O flexibility for easy data center integration
- Comprehensive hardware monitoring including temperature, voltage, and fan sensors

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rackmount, 437mm W x 88.9mm H x 760mm D
- Processor: Single socket AMD EPYC 9004/9005 series (up to 128 cores/320 threads)
- Memory: 24x DDR5 DIMM slots, supports up to 6TB DDR5-4800 (1DPC) or DDR5-4000/3600 (2DPC)
- Storage: 24x hot-swap 2.5" NVMe/SAS/SATA hybrid drive bays, 2x M.2 PCIe 3.0 NVMe slots
- Expansion: Flexible PCIe 5.0 configurations (up to 8x PCIe 5.0 x8 or 4x PCIe 5.0 x16 slots, varies by storage configuration)
- Networking: 1x AIOM slot (OCP NIC 3.0 compatible, PCIe 5.0 x16), dedicated IPMI 2.0 management port
- Power Supply: Dual 1600W redundant 80 PLUS Titanium-level power supplies
- Management: ASPEED AST2600 BMC, IPMI 2.0, KVM-over-IP, virtual media support
- GPU Support: Up to 2 double-width GPUs (NVIDIA RTX 6000 Ada, RTX A6000)

FAQs

Q: What AMD EPYC processor generations are supported?
A: The AS-2115HS-TNR supports both 4th Gen AMD EPYC 9004 (Genoa) and 5th Gen AMD EPYC 9005 (Turin) series processors in a single socket configuration. Note that AMD EPYC 9005 series support requires motherboard revision 2.x. The system supports processors with up to 128 cores and 320 threads, and is compatible with AMD 3D V-Cache technology.

Q: How do the PCIe expansion slots vary with different storage configurations?
A: The number and type of PCIe 5.0 slots available depends on the storage configuration. With 24x NVMe drives, the system supports 1x PCIe 5.0 x16 slot or 2x PCIe 5.0 x8 slots. With SATA/SAS configurations, you can configure up to 4x PCIe 5.0 x16 slots, 8x PCIe 5.0 x8 slots, or mixed combinations such as 3x x16 plus 2x x8, or 2x x16 plus 4x x8, or 1x x16 plus 6x x8 slots.

Q: What networking options are available on this server?
A: The AS-2115HS-TNR features one AIOM (Advanced I/O Module) slot that is OCP NIC 3.0 compatible and supports PCIe 5.0 x16 connectivity for flexible networking card installation. The system also includes a dedicated RJ45 port for IPMI 2.0 remote management with KVM-over-IP and virtual media capabilities. This allows you to select the networking solution that best fits your infrastructure requirements.

Q: What are the primary use cases for the AS-2115HS-TNR?
A: This Hyper server is optimized for virtualization platforms, software-defined storage deployments, AI inference and machine learning workloads, cloud computing infrastructure, and enterprise server applications. The combination of high core count processors, large memory capacity, extensive storage bays, and PCIe 5.0 bandwidth makes it ideal for demanding data center workloads requiring both compute density and I/O performance.

Q: Can this server support GPU accelerators?
A: Yes, the AS-2115HS-TNR supports up to 2 double-width GPUs with PCIe 5.0 x16 CPU-to-GPU interconnect. Supported GPUs include NVIDIA RTX 6000 Ada Generation and RTX A6000. GPU support is subject to PCIe slot availability, which varies based on your storage configuration and expansion requirements.
