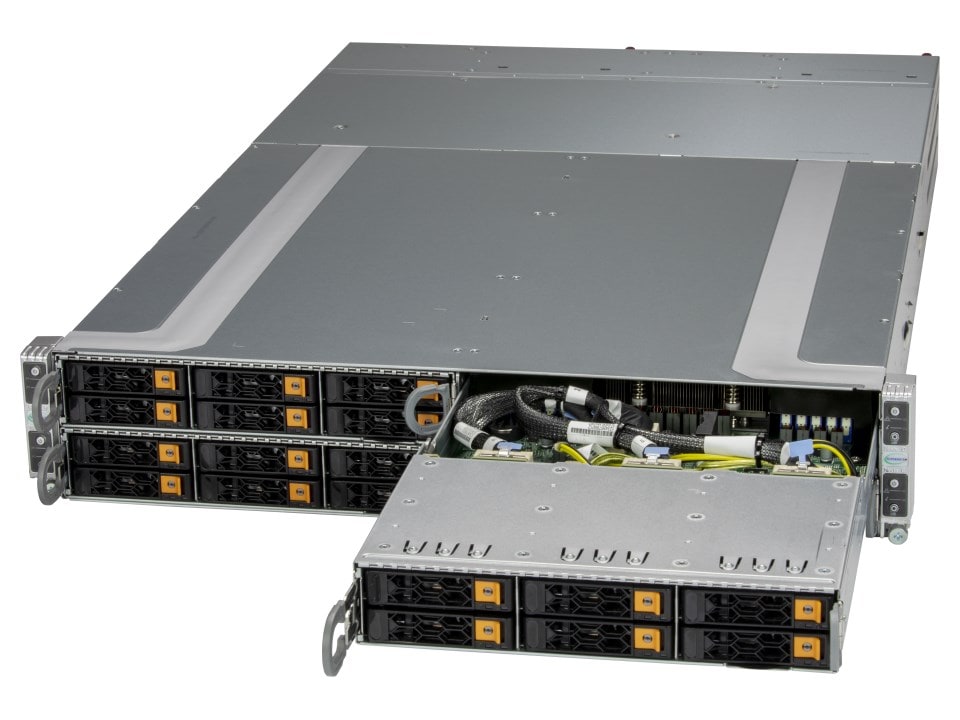

• Silver-colored Supermicro AS-2115GT-HNTR GrandTwin 2U 4-node server rack with multiple drive bays and internal cabling
1 1

Supermicro

Supermicro AS-2115GT-HNTR | GrandTwin 2U 4-Node Server, AMD EPYC 9004/9005, 12x DDR5

AS-2115GT-HNTR

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Supermicro AS-2115GT-HNTR GrandTwin is a high-density 2U rackmount server with four hot-pluggable compute nodes, each supporting a single AMD EPYC 9004 or 9005 series processor with up to 3TB DDR5 memory. Each node features 6 hot-swap 2.5-inch NVMe/SATA drive bays, dual AIOM/OCP 3.0 slots for flexible networking, and PCIe 5.0 expansion. Powered by dual redundant 2200W Titanium-level power supplies, this multi-node platform delivers exceptional density and performance for HPC, cloud gaming, edge computing, and mission-critical applications.

Features

Four independent hot-pluggable compute nodes in 2U form factor for maximum density
- AMD EPYC 9004/9005 series processor support with up to 96 cores per node
- PCIe 5.0 support with CXL 1.1+ for doubled bandwidth versus PCIe 4.0
- 12-channel DDR5 memory architecture per node with speeds up to 6400 MT/s
- 24 total hot-swap 2.5-inch NVMe/SATA drive bays across 4 nodes
- Dual AIOM/OCP 3.0 expansion per node for flexible high-speed networking
- IPMI 2.0 with KVM for comprehensive remote management per node
- Redundant 2200W Titanium-level power supplies for energy efficiency and uptime
- Rear I/O configuration for optimized thermal management
- Support for AMD 3D V-Cache technology for enhanced application performance
- Modular architecture allows customization per node based on workload requirements

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rackmount with 4 hot-pluggable nodes
- Processor: Single AMD EPYC 9004/9005 series per node, up to 320W TDP
- Memory: 12x DDR5 DIMM slots per node, up to 3TB per node, speeds up to DDR5-6400 MT/s
- Storage: 6x hot-swap 2.5-inch NVMe/SATA drive bays per node (24 total)
- Expansion: 2x AIOM/OCP 3.0 slots per node, PCIe 5.0 with CXL 1.1+ support
- Additional Storage: 2x M.2 slots (NVMe or SATA) per node
- Management: IPMI 2.0 with dedicated RJ45 BMC LAN port per node, KVM support
- Power: Dual 2200W redundant 80 PLUS Titanium-level power supplies
- I/O Configuration: Rear I/O design for optimized airflow and serviceability

FAQs

Q: What processors are supported by the AS-2115GT-HNTR?
A: Each node supports a single AMD EPYC 9004 series processor. The system also supports AMD EPYC 9005 series processors with board revision 2.x, offering drop-in upgrade capability for future-proofing.

Q: How much memory can be installed per node?
A: Each node supports up to 3TB of DDR5 memory across 12 DIMM slots with speeds up to DDR5-6400 MT/s. For optimal performance, it is recommended to populate all 12 DIMM slots per node with matched modules.

Q: What storage options are available?
A: Each node provides 6 hot-swap 2.5-inch drive bays supporting NVMe or SATA drives, plus 2 internal M.2 slots for NVMe or SATA SSDs. This allows for flexible storage configurations optimized for performance or capacity.

Q: What networking flexibility does this server offer?
A: Each node features 2 AIOM/OCP 3.0 slots supporting PCIe 5.0, allowing for flexible high-speed networking options including 10GbE, 25GbE, or higher-speed adapters. A dedicated BMC LAN port per node enables out-of-band management.

Q: What are typical use cases for the GrandTwin AS-2115GT-HNTR?
A: This high-density multi-node server is ideal for HPC clusters, cloud gaming infrastructure, multi-access edge computing, content delivery networks, high-availability cache clusters, telco edge cloud, EDA workloads, and mission-critical web applications requiring discrete servers with high-speed interconnects.
