Supermicro AS-2114GT-DNR | A+ Server 2U 2-Node GPU Server, EPYC 7002/7003, 2600W
SKU:AS-2114GT-DNR
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

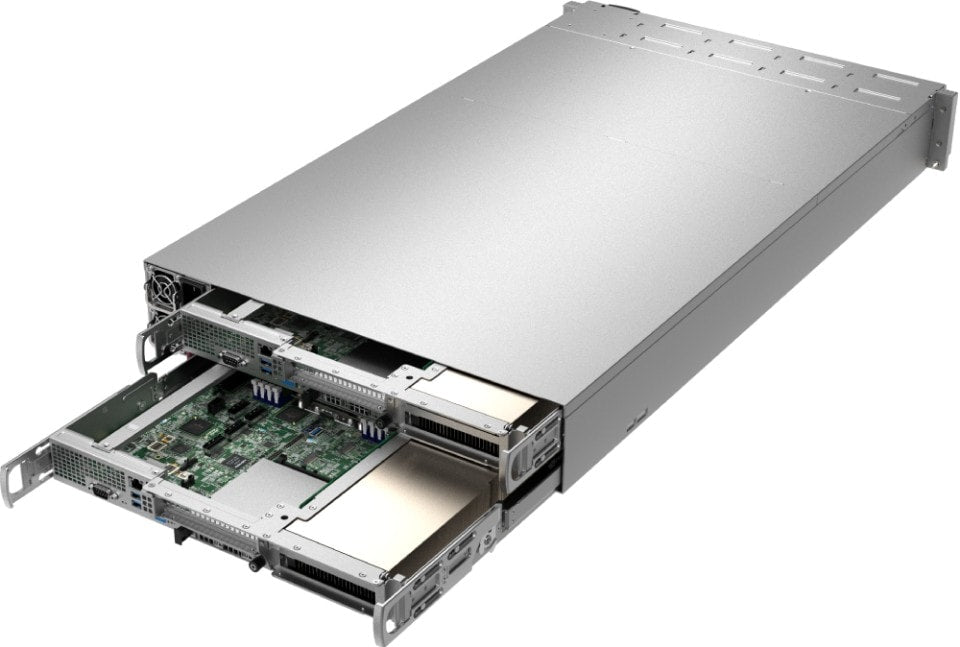

The A+ Server AS-2114GT-DNR is a 2U GPU server with two hot-pluggable nodes, each built around a single AMD EPYC 7002/7003 processor. It is designed for GPU-accelerated workloads such as AI inference and machine learning, media and video streaming, cloud gaming, industrial automation and healthcare.
Each node supports up to 2 double-width or 4 single-width GPUs, up to 2TB of DDR4-3200 ECC RDIMM/LRDIMM across 8 DIMM slots, and 2 front hot-swap 2.5" NVMe bays, giving 4 NVMe bays across the system. Every node also provides 2 PCIe 4.0 x4 M.2 slots, up to 6 PCIe 4.0 x16 slots and a PCIe 4.0 x8 AIOM slot that is OCP 3.0 compatible for Ethernet or InfiniBand networking. Both nodes share two 2600W redundant (1+1) Titanium Level (96%) power supplies, and each node has a dedicated 1GbE BMC LAN port with IPMI 2.0 management.
Supported GPUs include NVIDIA A10, A100, A16, A2, A40, L40, RTX A4000, RTX A4500 and RTX A6000, plus AMD Instinct MI100 and MI210. The system is NVIDIA-Certified and supports CPUs up to 280W TDP with air cooling.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Two hot-pluggable server nodes in a single 2U chassis
- One AMD EPYC 7002/7003 processor per node
- NVIDIA-Certified system for GPU-accelerated workloads
- Titanium Level (96%) redundant power supplies shared by both nodes
- OCP 3.0 compatible AIOM slot for flexible Ethernet or InfiniBand networking
- Hardware root of trust, Secure Boot and cryptographically signed firmware with automatic recovery
- Management through IPMI 2.0, Supermicro Server Manager, Power Manager, Update Manager and SuperDoctor 5
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2U rackmount, 2 hot-pluggable nodes
- Chassis model: CSE-227GTS-R2K63P
- Motherboard: Super H12SSG-AN6 (per node)
- CPU (per node): 1 x AMD EPYC 7002/7003, Socket SP3, up to 280W TDP air cooled
- CPU note: EPYC 7003 with AMD 3D V-Cache requires BIOS 2.3 or newer
- GPU capacity (per node): up to 2 double-width or 4 single-width GPUs
- Memory (per node): 8 DIMM slots, up to 2TB DDR4-3200 ECC RDIMM/LRDIMM, 1.2V
- Front drive bays (per node): 2 x hot-swap 2.5" NVMe, 4 total
- M.2 (per node): 2 x PCIe 4.0 x4, 2280/22110, M-key
- Expansion (per node): up to 6 PCIe 4.0 x16 slots plus 1 PCIe 4.0 x8 AIOM (OCP 3.0 compatible)
- On-board storage interface: SATA 6Gbps
- LAN (per node): 1 x 1GbE RJ45 dedicated BMC port
- Rear I/O (per node): 2 x USB 3.0, 1 x VGA
- Management: IPMI 2.0 with virtual media and KVM-over-LAN
- Security: TPM 2.0, Silicon Root of Trust (NIST 800-193), Secure Boot, signed firmware
- BIOS: AMI 256MB SPI Flash ROM
- Cooling: up to 4 hot-swap PWM 80mm fans
- Power supply: 2 x 2600W redundant (1+1) Titanium Level (96%)
- PSU input: 200-240Vac, 50-60Hz
- Dimensions (H x W x D): 88 x 447 x 760 mm
- Weight: 24.94 kg net, 27.21 kg gross
- Operating temperature: 10 to 35 C
- Operating humidity: 8% to 90% non-condensing
- OS support: Oracle Linux 8.3, RHEL 8.3, Windows Server 2019, Windows Server 2022
FAQs
Q: Does this server need a licence to operate?
A: No licence is required to operate it. IPMI 2.0 out-of-band management with KVM-over-LAN is built in.
Q: Which GPUs does each node support?
A: Each node takes up to 2 double-width or 4 single-width GPUs. Supported cards include NVIDIA A10, A100, A16, A2, A40, L40, RTX A4000, RTX A4500 and RTX A6000, plus AMD Instinct MI100 and MI210.
Q: What power supply does it need?
A: Both nodes share two 2600W redundant (1+1) Titanium Level hot-swap power supplies. They require 200-240Vac input at 50-60Hz.
Q: Which processors and memory are supported?
A: Each node takes one AMD EPYC 7002/7003 (Socket SP3) CPU up to 280W TDP and up to 2TB of DDR4-3200 ECC RDIMM/LRDIMM across 8 DIMM slots. EPYC 7003 3D V-Cache parts need BIOS 2.3 or newer.
Q: What networking options are available?
A: Each node has a dedicated 1GbE BMC LAN port and a PCIe 4.0 x8 AIOM slot that is OCP 3.0 compatible. It accepts Ethernet or InfiniBand networking cards.
