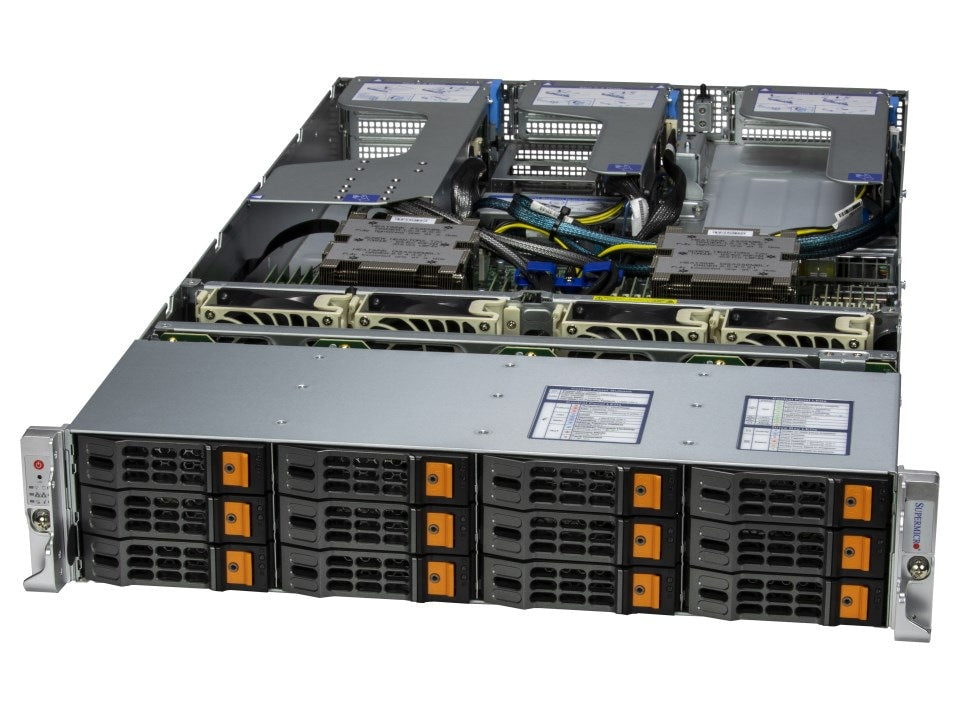

• Silver and black Supermicro AS-2025HS-TNR 2U rack server with orange drive indicators and dual AMD EPYC 9004 CPUs
1 1

Supermicro

Supermicro AS-2025HS-TNR | H13 Hyper 2U Rack Server, Dual AMD EPYC 9004/9005, 6TB DDR5

AS-2025HS-TNR

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro AS-2025HS-TNR is a versatile 2U rackmount server engineered for virtualization, AI inference, cloud computing, and enterprise workloads. Powered by dual AMD EPYC 9004/9005 series processors supporting up to 320 cores and 6TB of DDR5 memory across 24 DIMM slots, it delivers exceptional compute density. The system features 12 hot-swap 3.5-inch or 2.5-inch drive bays with flexible NVMe, SAS, and SATA support, PCIe 5.0 expansion with up to 4x16 or 8x8 slots, OCP 3.0 AIOM networking, and dual redundant 1600W Titanium-level power supplies for enterprise-grade reliability.

Features

Dual AMD EPYC 9004/9005 series processor support with up to 320 cores and 640 threads
- 24 DDR5 DIMM slots supporting up to 6TB memory at DDR5-6400MT/s
- PCIe 5.0 expansion with configurable slot layouts (up to 4x16 or 8x8)
- 12 hot-swap 3.5-inch/2.5-inch hybrid drive bays with NVMe/SAS/SATA support
- 2 M.2 PCIe 3.0 x4 NVMe slots for boot drives
- OCP NIC 3.0 compliant AIOM slot for flexible networking
- Support for up to 2 double-width or single-width GPUs
- IPMI 2.0 with KVM and remote virtual media for out-of-band management
- Dual redundant 1600W Titanium power supplies (80 PLUS)
- Tool-less chassis design for simplified maintenance
- TPM 2.0 and Secure Boot for hardware-based security
- PWM fans with tachometer monitoring and air shrouds
- ASPEED AST2600 BMC chipset
- Compatible with major Linux distributions, Windows Server, and hypervisors
- Optimized for virtualization, AI inference, cloud computing, and software-defined storage

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rackmount chassis (CSE-HS829)
- Processors: Dual socket SP5, supports AMD EPYC 9004/9005 series (up to 320 cores/640 threads)
- Memory: 24x DDR5 DIMM slots, up to 6TB, DDR5-6400MT/s (1DPC)
- Storage: 12x hot-swap 3.5-inch/2.5-inch NVMe/SAS/SATA drive bays, 2x M.2 NVMe PCIe 3.0 x4 (2280/22110, boot only)
- Expansion: Up to 4x PCIe 5.0 x16 slots OR 8x PCIe 5.0 x8 slots (configurable), supports up to 2 GPUs
- Networking: 1x AIOM slot (OCP NIC 3.0), 1x dedicated IPMI 2.0 RJ45 management port
- Power Supplies: Dual redundant 1600W Titanium (80 PLUS), optional 1200W/2000W/2600W Titanium configurations
- Management: IPMI 2.0 with KVM, SuperDoctor 5, TPM 2.0, Secure Boot, ACPI power management
- Chipset: ASPEED AST2600 BMC
- Operating Systems: Citrix Hypervisor, Microsoft Windows Server 2022, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux

FAQs

Q: What AMD EPYC processor generations are supported?
A: The AS-2025HS-TNR supports both AMD EPYC 9004 (4th Gen) and EPYC 9005 (5th Gen) series processors. EPYC 9005 drop-in support requires motherboard revision 2.xx. The system can accommodate up to 320 cores and 640 threads with dual processors installed.

Q: How flexible is the storage configuration?
A: The system offers highly flexible storage with 12 hot-swap 3.5-inch/2.5-inch hybrid bays. These can be configured as 12 NVMe, 12 SATA, 8 NVMe + 4 SATA, or 4 NVMe + 8 SATA. SAS drive support requires an optional SAS controller card. Two additional M.2 NVMe slots are available for boot drives.

Q: What PCIe expansion options are available?
A: The AS-2025HS-TNR offers configurable PCIe 5.0 expansion: up to 4x PCIe 5.0 x16 slots, 8x PCIe 5.0 x8 slots, or various mixed configurations. The system supports up to 2 double-width or single-width GPUs, making it suitable for AI inference and GPU-accelerated workloads including NVIDIA H100 and L40S GPUs.

Q: What is the maximum memory capacity and speed?
A: The server supports up to 6TB of DDR5 ECC RDIMM memory across 24 DIMM slots (1 DIMM per channel) at speeds up to DDR5-6400MT/s. This high memory capacity and bandwidth make it ideal for virtualization, in-memory databases, and data-intensive applications.

Q: What networking and management features are included?
A: The system includes one AIOM slot supporting OCP NIC 3.0 for flexible networking options, plus a dedicated IPMI 2.0 management port. Management capabilities include KVM-over-IP, remote virtual media, SuperDoctor 5, TPM 2.0, Secure Boot, and cryptographically signed firmware for comprehensive out-of-band control.
